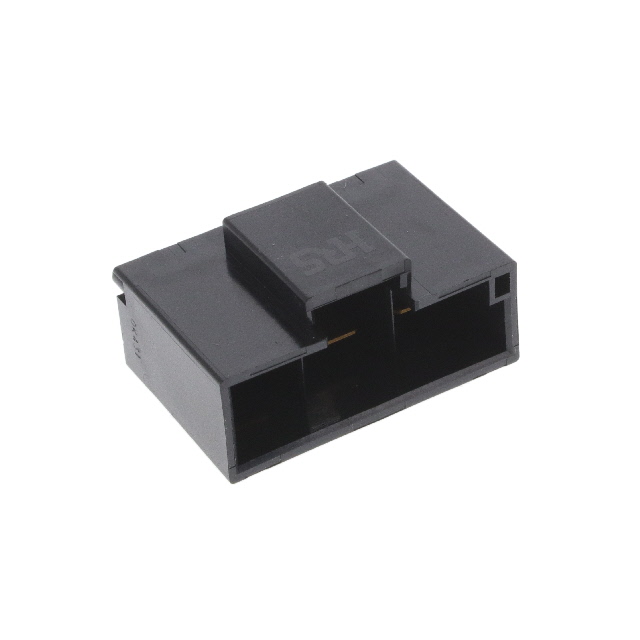

DF60-3P-10.16DSA(27)

Active

Hirose Electric USA, Inc.

CONN HDR 3POS 10.16MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DF60-3P-10.16DSA(27)

Active

Hirose Electric USA, Inc.

CONN HDR 3POS 10.16MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF60-3P-10.16DSA(27)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	8 µin
Contact Finish Thickness - Post	0.203 µm
Contact Length - Post [x]	0.15 in
Contact Length - Post [x]	3.81 mm
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Male Blade
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Latch Holder
Features	Board Guide
Insulation Color	Black
Insulation Height	0.846 "
Insulation Height	21.5 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	10.16 mm
Pitch - Mating	0.4 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	1000 VAC

DF60 Series

Part	Insulation Color	Number of Rows	Mounting Type	Number of Positions Loaded	Current Rating (Amps)	Contact Material	Connector Type	Contact Length - Post [x]	Contact Length - Post [x]	Fastening Type	Contact Finish - Mating	Style	Material Flammability Rating	Number of Positions	Operating Temperature [Max]	Operating Temperature [Min]	Shrouding	Features	Contact Type	Insulation Height	Insulation Height	Contact Shape	Termination	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Pin or Socket	Wire Gauge	Contact Finish	Contact Termination	Contact Finish Thickness	Contact Finish Thickness	Mated Stacking Heights	Pitch - Mating	Pitch - Mating	Color	Note	Contact Finish - Post	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Voltage Rating	Pitch [x]	Pitch [x]
Hirose Electric USA, Inc. DF60-1P-10.16DS(26)	Black	1	Through Hole Right Angle	All	Varies by Wire Gauge	Copper Alloy	Header	0.15 in	3.81 mm	Latch Holder	Gold	Board to Cable/Wire	UL94 V-0	1	105 ░C	-55 °C	Shrouded - 4 Wall	Board Guide	Male Blade	0.683 "	17.35 mm	Rectangular	Solder	0.203 Ám	8 Áin
Hirose Electric USA, Inc. DF60-8SCA																										Socket	8 AWG	Gold	Crimp	8 çin	0.203 çm
Hirose Electric USA, Inc. DF60-3P-10.16DSA(26)	Black	1	Through Hole	All	Varies by Wire Gauge	Copper Alloy	Header	0.15 in	3.81 mm	Latch Holder	Gold	Board to Cable/Wire	UL94 V-0		105 ░C	-55 °C	Shrouded - 4 Wall	Board Guide	Male Blade	0.846 "	21.5 mm	Rectangular	Solder	0.203 Ám	8 Áin							30 mm	10.16 mm	0.4 in
Hirose Electric USA, Inc. DF60-1S-10.16C		1	Free Hanging (In-Line)				Receptacle			Latch Lock				1					Female Socket										Crimp						Black	Contacts Not Included
Hirose Electric USA, Inc. DF60-2P-10.16DSA(27)	Black	1	Through Hole	All	Varies by Wire Gauge	Copper Alloy	Header	0.15 in	3.81 mm	Latch Holder	Gold	Board to Cable/Wire	UL94 V-0	2	105 ░C	-55 °C	Shrouded - 4 Wall	Board Guide	Male Blade	0.846 "	21.5 mm	Rectangular	Solder	0.203 Ám	8 Áin								10.16 mm	0.4 in			Gold	Polybutylene Terephthalate (PBT)	8 µin	0.203 µm	1000 VAC
Hirose Electric USA, Inc. DF60-4P-10.16DS(26)	Black	1	Through Hole Right Angle	All	Varies by Wire Gauge	Copper Alloy	Header	0.15 in	3.81 mm	Latch Holder	Gold	Board to Cable/Wire	UL94 V-0	4	105 ░C	-55 °C	Shrouded - 4 Wall	Board Guide	Male Blade	0.683 "	17.35 mm	Rectangular	Solder	0.203 Ám	8 Áin								10.16 mm	0.4 in
Hirose Electric USA, Inc. DF60-3P-10.16DSA(27)	Black	1	Through Hole	All	Varies by Wire Gauge	Copper Alloy	Header	0.15 in	3.81 mm	Latch Holder	Gold	Board to Cable/Wire	UL94 V-0		105 ░C	-55 °C	Shrouded - 4 Wall	Board Guide	Male Blade	0.846 "	21.5 mm	Rectangular	Solder	0.203 Ám	8 Áin								10.16 mm	0.4 in			Gold	Polybutylene Terephthalate (PBT)	8 µin	0.203 µm	1000 VAC
Hirose Electric USA, Inc. DF60-3P-10.16DS(27)	Black	1	Through Hole Right Angle	All	Varies by Wire Gauge	Copper Alloy	Header	0.15 in	3.81 mm	Latch Holder	Gold	Board to Cable/Wire	UL94 V-0		105 ░C	-55 °C	Shrouded - 4 Wall		Male Blade	0.683 "	17.35 mm	Rectangular	Solder	0.203 Ám	8 Áin								10.16 mm	0.4 in			Gold	Polybutylene Terephthalate (PBT)	8 µin	0.203 µm	1000 VAC
Hirose Electric USA, Inc. DF60-3EP-10.16C(15)		1					Plug			Latch Holder					105 ░C	-55 °C		Mounting Flange	Blade Pin										Crimp						Red			Polybutylene Terephthalate (PBT) Glass Filled				10.16 mm	0.4 in
Hirose Electric USA, Inc. DF60-2EP-10.16C(15)		1					Plug			Latch Holder				2	105 ░C	-55 °C		Mounting Flange	Blade Pin										Crimp						Red			Polybutylene Terephthalate (PBT) Glass Filled				10.16 mm	0.4 in
