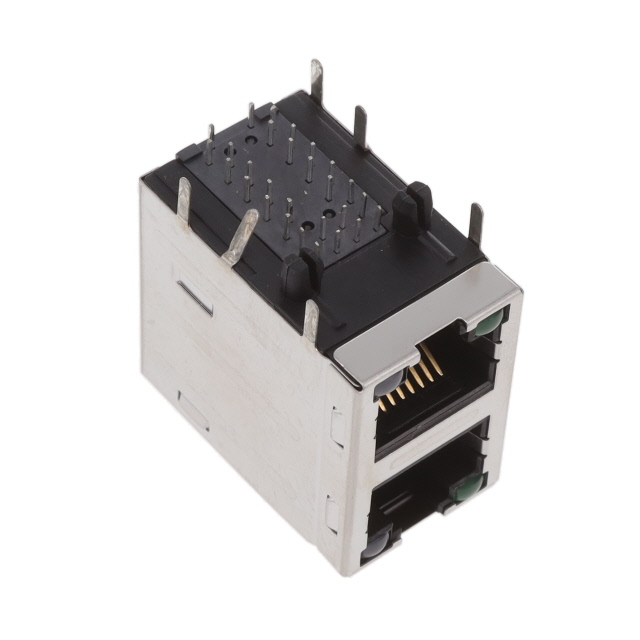

MTJG-2-88J11-V-FSG-L36-M268Y

Active

Adam Tech

CONN RJ-45 F 16 POS 1.27MM SOLDER RA THRU-HOLE 28 TERMINAL 2 PORT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MTJG-2-88J11-V-FSG-L36-M268Y

Active

Adam Tech

CONN RJ-45 F 16 POS 1.27MM SOLDER RA THRU-HOLE 28 TERMINAL 2 PORT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MTJG-2-88J11-V-FSG-L36-M268Y

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Features	Board Lock, Solder Retention
Height Above Board	24 mm
Height Above Board [z]	0.943 "
Housing Material	Thermoplastic
LED Color	Orange, Green - Green
Mounting Type	Through Hole
Number of Cores per Jack	6
Number of Ports	2
Number of Rows	2
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	0 °C
Orientation	90 °
Shield Material	Stainless Steel
Shielding	Shielded
Tab Direction	Up and Down
Termination	Solder

MTJG-2 Series

Part	Shield Material	Height Above Board	Height Above Board	Housing Material	Contact Finish	Number of Ports	LED Color	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Connector Type	Tab Direction	Mounting Type	Shielding	Orientation	Contact Material	Contact Finish Thickness	Features	Number of Rows	Height Above Board [z]	Number of Cores per Jack	Number of Positions/Contacts
Adam Tech MTJG-2-88TUX1-FSD-PG-VLG-M5C	Brass Nickel Coated	0.531 in	13.49 mm	Thermoplastic	Gold	2	Yellow - Green	85 °C	-40 °C	Solder	Jack	Up	Through Hole	Shielded EMI Finger	90 °	Copper Alloy	Flash	Board Guide Solder Retention	1
Adam Tech MTJG-2-88J11-V-FSG-L36-M268Y	Stainless Steel		24 mm	Thermoplastic	Gold	2	Green - Green Orange	70 °C	0 °C	Solder	Jack	Up and Down	Through Hole	Shielded	90 °	Copper Alloy	Flash	Board Lock Solder Retention	2	0.943 "	6
Adam Tech MTJG-2-88JX1-FSG-PG-L16				Glass Filled Nylon 6/6 Polyamide (PA66)	Gold	2	Green Yellow	85 °C	-40 °C	Solder	Jack	Up and Down	Through Hole	Shielded EMI Finger	90 °	Phosphor Bronze	Flash	Board Lock Solder Retention	2			8p8c (RJ45 Ethernet)
Adam Tech MTJG-2-88JX1-FSH-LH-Y-HT				Thermoplastic	Gold	2	Green Yellow	85 °C	-40 °C	Solder	Jack	Up and Down	Through Hole	Shielded	90 °	Phosphor Bronze	Flash	Board Lock Solder Retention	2			8p8c (RJ45 Ethernet)
Adam Tech MTJG-2-88TX1-FSD-PG-LH-NRSP-M47C	Brass Nickel Coated	0.537 in	13.65 mm	Thermoplastic	Gold	2	Green Yellow	70 °C	0 °C	Solder	Jack	Down	Through Hole	Shielded EMI Finger	90 °	Phosphor Bronze	Flash	Board Guide Solder Retention	1		8
Adam Tech MTJG-2-88TX1-FSD-PG-LH-M4	Copper Alloy Nickel Coated	0.531 in	13.49 mm		Gold	2	Green Yellow	70 °C	0 °C	Solder	Jack	Down	Through Hole	Shielded EMI Finger	90 °	Copper Alloy	Flash	Board Guide Solder Retention	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

MTJG-2 Series

2 Port JackThrough Hole
