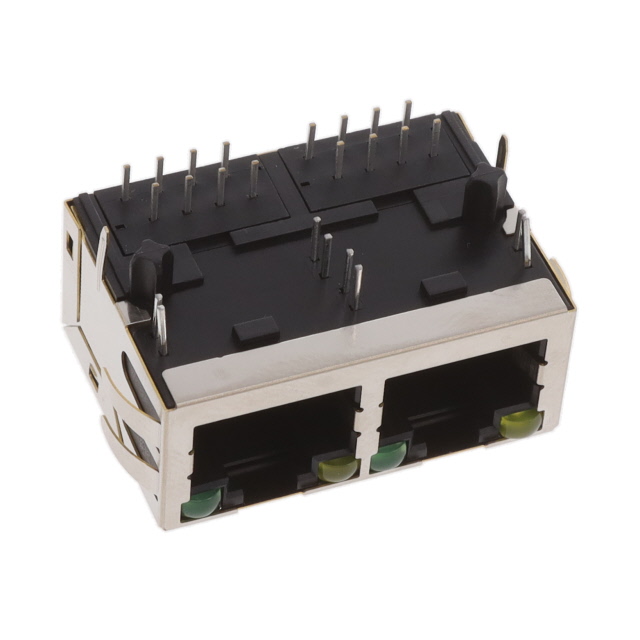

MTJG-2-88TUX1-FSD-PG-VLG-M5C

Active

Adam Tech

GANGED 2 POSITION MODULAR JACK,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsComms, AudioVideo, Data, Other Signaling-circuit Acc.Datasheet

MTJG-2-88TUX1-FSD-PG-VLG-M5C

Active

Adam Tech

GANGED 2 POSITION MODULAR JACK,

Deep-Dive with AI

DocumentsComms, AudioVideo, Data, Other Signaling-circuit Acc.Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MTJG-2-88TUX1-FSD-PG-VLG-M5C

Connector Type	Jack
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Material	Copper Alloy
Features	Solder Retention, Board Guide
Height Above Board	0.531 in
Height Above Board	13.49 mm
Housing Material	Thermoplastic
LED Color	Yellow - Green
Mounting Type	Through Hole
Number of Ports	2
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Orientation	90 °
Shield Material	Brass, Nickel Coated
Shielding	Shielded, EMI Finger
Tab Direction	Up
Termination	Solder

MTJG-2 Series

Part	Shield Material	Height Above Board	Height Above Board	Housing Material	Contact Finish	Number of Ports	LED Color	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Connector Type	Tab Direction	Mounting Type	Shielding	Orientation	Contact Material	Contact Finish Thickness	Features	Number of Rows	Height Above Board [z]	Number of Cores per Jack	Number of Positions/Contacts
Adam Tech MTJG-2-88TUX1-FSD-PG-VLG-M5C	Brass Nickel Coated	0.531 in	13.49 mm	Thermoplastic	Gold	2	Yellow - Green	85 °C	-40 °C	Solder	Jack	Up	Through Hole	Shielded EMI Finger	90 °	Copper Alloy	Flash	Board Guide Solder Retention	1
Adam Tech MTJG-2-88J11-V-FSG-L36-M268Y	Stainless Steel		24 mm	Thermoplastic	Gold	2	Green - Green Orange	70 °C	0 °C	Solder	Jack	Up and Down	Through Hole	Shielded	90 °	Copper Alloy	Flash	Board Lock Solder Retention	2	0.943 "	6
Adam Tech MTJG-2-88JX1-FSG-PG-L16				Glass Filled Nylon 6/6 Polyamide (PA66)	Gold	2	Green Yellow	85 °C	-40 °C	Solder	Jack	Up and Down	Through Hole	Shielded EMI Finger	90 °	Phosphor Bronze	Flash	Board Lock Solder Retention	2			8p8c (RJ45 Ethernet)
Adam Tech MTJG-2-88JX1-FSH-LH-Y-HT				Thermoplastic	Gold	2	Green Yellow	85 °C	-40 °C	Solder	Jack	Up and Down	Through Hole	Shielded	90 °	Phosphor Bronze	Flash	Board Lock Solder Retention	2			8p8c (RJ45 Ethernet)
Adam Tech MTJG-2-88TX1-FSD-PG-LH-NRSP-M47C	Brass Nickel Coated	0.537 in	13.65 mm	Thermoplastic	Gold	2	Green Yellow	70 °C	0 °C	Solder	Jack	Down	Through Hole	Shielded EMI Finger	90 °	Phosphor Bronze	Flash	Board Guide Solder Retention	1		8
Adam Tech MTJG-2-88TX1-FSD-PG-LH-M4	Copper Alloy Nickel Coated	0.531 in	13.49 mm		Gold	2	Green Yellow	70 °C	0 °C	Solder	Jack	Down	Through Hole	Shielded EMI Finger	90 °	Copper Alloy	Flash	Board Guide Solder Retention	1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 7.01
		10	$ 5.37
		25	$ 4.85
		40	$ 4.60
		80	$ 4.27
