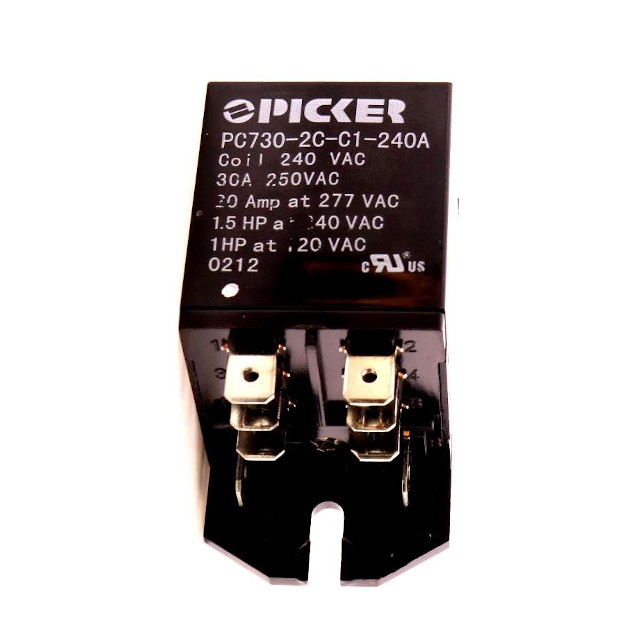

PC730-2C-C1-240A
ActivePicker Components
RELAY GEN PURPOSE DPDT 30A 240V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PC730-2C-C1-240A |
|---|---|
| Approval Agency | cUL, cURus, UL |
| Coil Current | 49.8 mA |
| Coil Insulation | Class B |
| Coil Resistance | 4.82 kOhms |
| Coil Type | Non Latching |
| Coil Voltage | 240 VAC |
| Contact Form | DPDT (2 Form C) |
| Contact Material | Silver Cadmium Oxide (AgCdO) |
| Contact Rating (Current) | 30 A |
| Load - Max Switching | 9900 VA, 1080 W |
| Mounting Type | Chassis Mount |
| Must Operate Voltage | 192 VAC |
| Must Release Voltage | 72 VAC/DC |
| Operate Time | 25 ms |
| Operating Temperature [Max] | 55 °C |
| Operating Temperature [Min] | -25 °C |
| Relay Type | General Purpose |
| Release Time | 15 ms |
| Switching Voltage | 36 VDC, 330 VAC |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 13.18 | |
| 10 | $ 11.72 | |||
| 25 | $ 11.13 | |||
| 50 | $ 10.54 | |||
| 100 | $ 9.96 | |||
| 300 | $ 9.08 | |||
| 500 | $ 8.49 | |||
| 1000 | $ 8.05 | |||
Description
General part information
PC730-2C Series
General Purpose Relay DPDT (2 Form C) 240VAC Coil Chassis Mount
