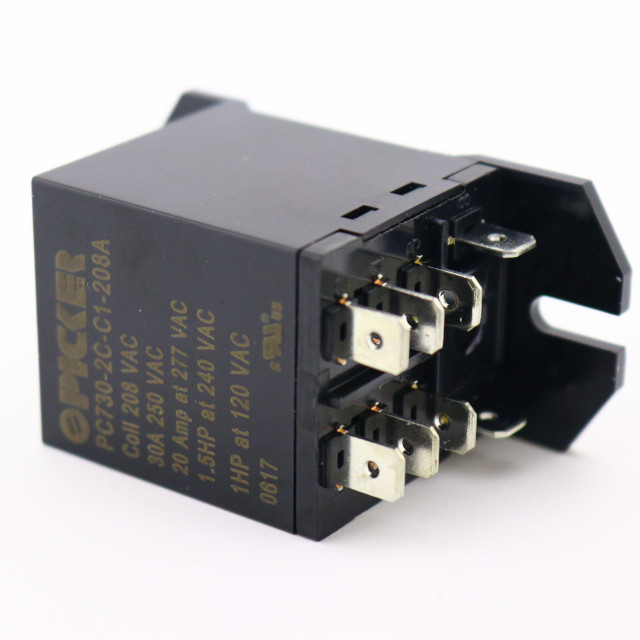

PC730-2C-C1-208A

Active

Picker Components

RELAY GEN PURPOSE DPDT 30A 208V

Search across all available documentation for this part.

Active

Picker Components

RELAY GEN PURPOSE DPDT 30A 208V

Technical Specifications

Parameters and characteristics for this part

Part	Coil Insulation	Coil Current	Termination Style	Must Operate Voltage	Coil Type	Must Release Voltage	Coil Voltage	Operate Time	Contact Form	Load - Max Switching	Switching Voltage	Relay Type	Release Time	Contact Material	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Approval Agency	Mounting Type	Coil Resistance
Picker Components PC730-2C-C1-240A	Class B	49.8 mA	Quick Connect - 0.250" (6.3mm)	192 VAC	Non Latching	72 VAC/DC	240 VAC	25 ms	DPDT (2 Form C)	1080 W 9900 VA	36 VDC 330 VAC	General Purpose	15 ms	Silver Cadmium Oxide (AgCdO)	30 A	55 °C	-25 °C	cUL cURus UL	Chassis Mount	4.82 kOhms
Picker Components PC730-2C-C1-24A	Class B	500 mA	Quick Connect - 0.250" (6.3mm)	19 VAC	Non Latching	7 VAC	24 VAC	25 ms	DPDT (2 Form C)	1080 W 9900 VA	36 VDC 330 VAC	General Purpose	15 ms	Silver Cadmium Oxide (AgCdO)	30 A	55 °C	-25 °C	cUL cURus UL	Chassis Mount	48 Ohms
Picker Components PC730-2C-C1-120A	Class B	99.5 mA	Quick Connect - 0.250" (6.3mm)	96 VAC	Non Latching	36 VAC	120 VAC	25 ms	DPDT (2 Form C)	1080 W 9900 VA	36 VDC 330 VAC	General Purpose	15 ms	Silver Cadmium Oxide (AgCdO)	30 A	55 °C	-25 °C	cUL cURus UL	Chassis Mount	1.21 kOhms
Picker Components PC730-2C-C1-208A	Class B	57.4 mA	Quick Connect - 0.250" (6.3mm)	166 VAC	Non Latching	62 VAC	208 VAC	25 ms	DPDT (2 Form C)	1080 W 9900 VA	36 VDC 330 VAC	General Purpose	15 ms	Silver Cadmium Oxide (AgCdO)	30 A	55 °C	-25 °C	cUL cURus UL	Chassis Mount	3.62 kOhms

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	100	$ 9.96

General part information

General Purpose Relay DPDT (2 Form C) 208VAC Coil Chassis Mount
