034-5011

Active

Amphenol RF

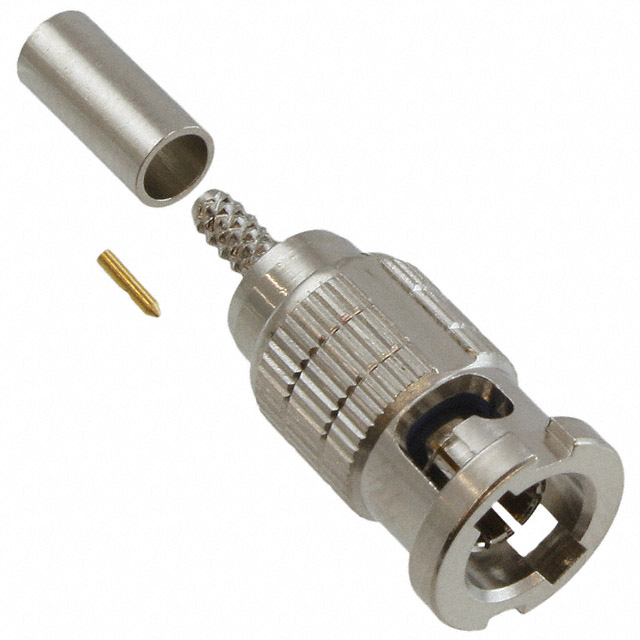

CONN HDBNC PLUG STR 50OHM SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

034-5011

Active

Amphenol RF

CONN HDBNC PLUG STR 50OHM SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	034-5011

Body Finish	Nickel
Body Material	Brass
Cable Group	178B, RG-178, 196A, M17/93-RG178, 196, 178A
Center Contact Material	Phosphor Bronze
Center Contact Plating	Gold
Connector Style	HD, BNC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Ferrule, 1 Contact, 1 Connector
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp

034-50 Series

Part	Body Finish	Connector Type	Fastening Type	Center Contact Plating	Frequency - Max [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Housing Color	Impedance	Shield Termination	Features	Center Contact Material	Body Material	Contact Termination	Mounting Type	Mounting Feature	Dielectric Material	Connector Style	Mating Cycles	Number of Ports	Cable Group	Includes	Ingress Protection
Amphenol RF 034-1139-12G	Gold	Female Socket Jack	Bayonet Lock	Gold	18 GHz	85 °C	-40 °C	Gold	75 Ohms	Solder	Isolated	Beryllium Copper	Brass	Solder	Panel Mount Through Hole	Bulkhead - Front Side Nut	Polytetrafluoroethylene (PTFE)	BNC HD	500	1
Amphenol RF 034-5022	Nickel	Female Socket Receptacle	Bayonet Lock	Gold	6000 MHz	165 °C	-65 ░C	Silver	50 Ohms	Solder		Beryllium Copper	Brass	Solder	Through Hole		Polytetrafluoroethylene (PTFE)	BNC HD	500	1
Amphenol RF 034-5011	Nickel	Male Pin Plug	Bayonet Lock	Gold	6000 MHz	165 °C	-65 ░C	Silver	50 Ohms	Crimp		Phosphor Bronze	Brass	Solder	Free Hanging (In-Line)		Polytetrafluoroethylene (PTFE)	BNC HD	500	1	178A 178B 196 196A M17/93-RG178 RG-178	1 Connector 1 Contact 1 Ferrule
Amphenol RF 034-5025	Nickel	Female Socket Receptacle	Bayonet Lock	Gold	6000 MHz	165 °C	-65 ░C	Silver	50 Ohms	Solder		Beryllium Copper	Brass	Solder		Flange	Polytetrafluoroethylene (PTFE)	BNC HD	500	1
Amphenol RF 034-1127-12G	Nickel	Male Pin Plug	Bayonet Lock	Gold	18 GHz	85 °C	-30 ░C	Silver	75 Ohms	Crimp		Phosphor Bronze	Brass	Crimp	Free Hanging (In-Line)		Polytetrafluoroethylene (PTFE)	BNC HD	500	1	Canare L-5.5CUHD	1 Connector 1 Contact 1 Ferrule
Amphenol RF 034-5023	Nickel	Female Socket Receptacle	Bayonet Lock	Gold	6000 MHz	165 °C	-65 ░C	Silver	50 Ohms	Solder		Beryllium Copper	Brass	Solder	Panel Mount Through Hole	Bulkhead - Front Side Nut	Polytetrafluoroethylene (PTFE)	BNC HD	500	1		1 Connector 1 Nut
Amphenol RF 034-5073	Nickel	Female Socket Jack	Bayonet Lock	Gold	6000 MHz	165 °C	-65 ░C	Silver	50 Ohms	Crimp		Beryllium Copper	Brass	Crimp		Bulkhead - Front Side Nut	Polytetrafluoroethylene (PTFE)	BNC HD	500	1	RG-178		IP67 - Dust Tight Waterproof
Amphenol RF 034-5080	Nickel	Female Socket Jack	Bayonet Lock	Gold	6000 MHz	165 °C	-65 ░C	Silver	50 Ohms	Crimp		Beryllium Copper	Brass	Solder		Bulkhead - Front Side Nut	Polytetrafluoroethylene (PTFE)	BNC HD	500	1	LMR-195
Amphenol RF 034-1037	Nickel	Male Pin Plug	Bayonet Lock	Gold	4 GHz	165 °C	-65 ░C	Silver	75 Ohms	Crimp		Phosphor Bronze	Brass	Crimp	Free Hanging (In-Line)		Polytetrafluoroethylene (PTFE)	BNC HD	500	1	180 180A 180B 1865A 195 Belden 1855 RG-122	1 Connector 1 Contact 1 Ferrule
Amphenol RF 034-5020	Nickel	Female Socket Jack	Bayonet Lock	Gold	6000 MHz	165 °C	-65 ░C	Silver	50 Ohms	Crimp		Beryllium Copper	Brass	Solder	Free Hanging (In-Line)		Polytetrafluoroethylene (PTFE)	BNC HD	500	1	188 188A 316 LMR-100 M17/119-RG174 RG-174	1 Connector 1 Contact 1 Ferrule	IP67 - Dust Tight Waterproof

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 8.63

Description

General part information

034-50 Series

BNC, HD Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Solder
