034-1139-12G

Active

Amphenol RF

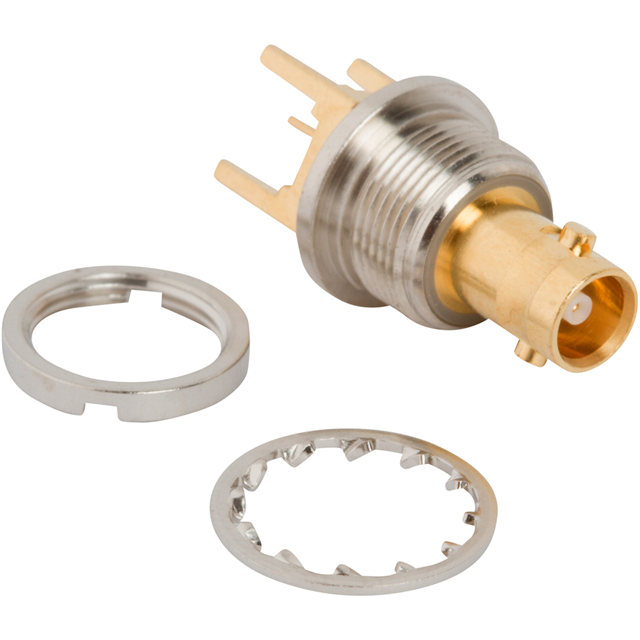

CONNECTOR: MICRO BNC; SOCKET; FEMALE; STRAIGHT; 75Ω; HD-BNC; THT

Deep-Dive with AI

Search across all available documentation for this part.

034-1139-12G

Active

Amphenol RF

CONNECTOR: MICRO BNC; SOCKET; FEMALE; STRAIGHT; 75Ω; HD-BNC; THT

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	034-1139-12G

Body Finish	Gold
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	HD, BNC
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Features	Isolated
Frequency - Max [Max]	18 GHz
Housing Color	Gold
Impedance	75 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Shield Termination	Solder

034-11 Series

Part	Impedance	Dielectric Material	Style	Center Contact Plating	Body Finish	Body Material	Adapter Series	Center Gender	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Feature	Fastening Type	Adapter Type	Frequency - Max [Max]	Mating Cycles	Conversion Type	Convert From (Adapter End)	Center Contact Material	Convert To (Adapter End)	Connector Type	Housing Color	Shield Termination	Features	Contact Termination	Mounting Type	Connector Style	Number of Ports	Ingress Protection	Cable Group	Includes
Amphenol RF 034-1109-12G	75 Ohms	Polytetrafluoroethylene (PTFE)	Straight	Gold	Nickel	Brass	BNC HD HD to BNC	Female to Female	-65 ░C	165 °C	Bulkhead	Bayonet Lock	Jack to Jack	18 GHz	500	Same Series	BNC HD Jack Female Socket	Beryllium Copper	BNC HD Jack Female Socket
Amphenol RF 034-1139-12G	75 Ohms	Polytetrafluoroethylene (PTFE)		Gold	Gold	Brass			-40 °C	85 °C	Bulkhead - Front Side Nut	Bayonet Lock		18 GHz	500			Beryllium Copper		Female Socket Jack	Gold	Solder	Isolated	Solder	Panel Mount Through Hole	BNC HD	1
Amphenol RF 034-1100	75 Ohms	Polytetrafluoroethylene (PTFE)		Gold	Nickel	Brass			-65 ░C	165 °C		Bayonet Lock		4 GHz	500			Phosphor Bronze		Male Pin Plug	Silver	Crimp		Solder	Free Hanging (In-Line)	BNC HD	1	IP67 - Dust Tight Waterproof	Belden 1855A
Amphenol RF 034-1112-12G	75 Ohms	Polytetrafluoroethylene (PTFE)	Straight	Gold	Nickel	Brass	BNC HD HD to BNC	Female to Female	-65 ░C	165 °C		Bayonet Lock	Jack to Jack	18 GHz	500	Same Series	BNC HD Jack Female Socket	Beryllium Copper	BNC HD Jack Female Socket						Free Hanging (In-Line)
Amphenol RF 034-1110-12G	75 Ohms		Straight	Gold	Nickel	Brass	BNC HD HD to BNC	Female to Female	-65 ░C	165 °C	Bulkhead	Bayonet Lock	Jack to Jack	18 GHz	500	Same Series	BNC HD Jack Female Socket	Beryllium Copper	BNC HD Jack Female Socket				Isolated
Amphenol RF 034-1119-12G	75 Ohms	Polytetrafluoroethylene (PTFE)		Gold	Nickel	Brass			-65 ░C	165 °C		Bayonet Lock		12 GHz	500			Phosphor Bronze		Male Pin Plug	Silver	Crimp		Solder	Free Hanging (In-Line) Right Angle	BNC HD	1		Belden 1794A Belden 4794R	1 Connector 1 End Cap 1 Insulator
Amphenol RF 034-1127-12G	75 Ohms	Polytetrafluoroethylene (PTFE)		Gold	Nickel	Brass			-30 ░C	85 °C		Bayonet Lock		18 GHz	500			Phosphor Bronze		Male Pin Plug	Silver	Crimp		Crimp	Free Hanging (In-Line)	BNC HD	1		Canare L-5.5CUHD	1 Connector 1 Contact 1 Ferrule
Amphenol RF 034-1120-12G	75 Ohms	Polytetrafluoroethylene (PTFE)		Gold	Nickel	Brass			-30 ░C	85 °C		Bayonet Lock		18 GHz	500			Phosphor Bronze		Male Pin Plug	Silver	Crimp		Crimp	Free Hanging (In-Line)	BNC HD	1		Belden 4505R
Amphenol RF 034-1107-12G	75 Ohms	Polytetrafluoroethylene (PTFE)		Gold	Nickel	Brass			-65 ░C	165 °C		Bayonet Lock		18 GHz	500			Phosphor Bronze		Male Pin Plug	Silver	Crimp		Crimp	Free Hanging (In-Line)	BNC HD	1		4855R Belden 1855A	1 Connector 1 Contact 1 Ferrule 1 Insulator
Amphenol RF 034-1137-12G	75 Ohms	Polytetrafluoroethylene (PTFE)		Gold	Nickel	Brass			-30 ░C	85 °C		Bayonet Lock		18 GHz	500			Phosphor Bronze		Male Pin Plug	Silver	Crimp		Crimp	Free Hanging (In-Line)	BNC HD	1		Belden 4505P

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 11.88
		10	$ 10.10
		25	$ 9.46
		50	$ 9.01
		100	$ 8.58
		250	$ 8.04
		500	$ 7.66
		1000	$ 7.30
TME	N/A	100	$ 12.43

Description

General part information

034-11 Series

BNC, HD Connector Jack, Female Socket 75 Ohms Panel Mount, Through Hole Solder
