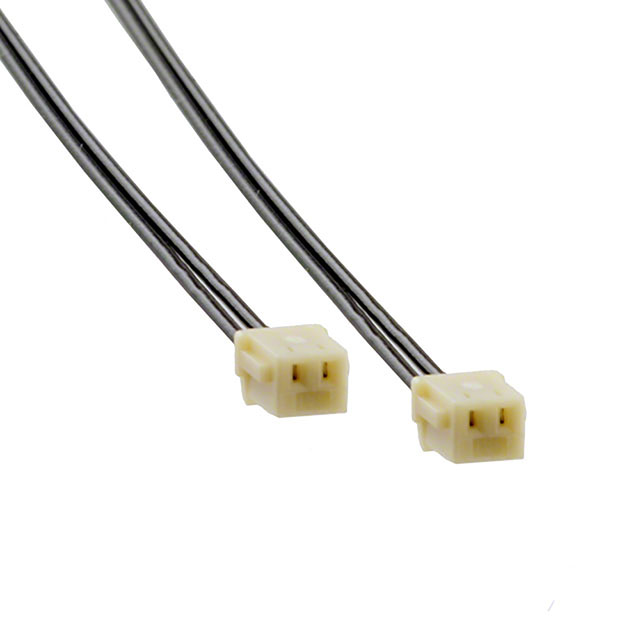

A02SR02SR30K203B

Active

JST Sales America Inc.

JUMPER 02SR-3S -02SR-3S 8"

Search across all available documentation for this part.

Active

JST Sales America Inc.

JUMPER 02SR-3S -02SR-3S 8"

Technical Specifications

Parameters and characteristics for this part

Part	Number of Rows	Connector Type	Pitch - Connector	Pitch - Connector	Cable Termination	Length	Length	Length	Number of Positions	Contact Finish	Length [x]	Length [x]	Length [x]	Length
JST Sales America Inc. A02SR02SR30K203A	1	Socket to Socket Reversed	0.039 "	1 mm	IDC	0.667 ft	8 in	203.2 mm	2	Tin
JST Sales America Inc. A02SR02SR30K305B	1	Socket to Socket	0.039 "	1 mm	IDC	1 ft		304.8 mm	2	Tin
JST Sales America Inc. A02SR02SR30K203B	1	Socket to Socket	0.039 "	1 mm	IDC	0.667 ft	8 in	203.2 mm	2	Tin
JST Sales America Inc. A02SR02SR30K102A	1	Socket to Socket Reversed	0.039 "	1 mm	IDC				2	Tin	4 "	0.333 ft	101.6 mm
JST Sales America Inc. A02SR02SR30K254B	1	Socket to Socket	0.039 "	1 mm	IDC	0.833 ft	10 in	254 mm	2	Tin
JST Sales America Inc. A02SR02SR30K254A	1	Socket to Socket Reversed	0.039 "	1 mm	IDC	0.833 ft	10 in	254 mm	2	Tin
JST Sales America Inc. A02SR02SR30K51A	1	Socket to Socket Reversed	0.039 "	1 mm	IDC	0.167 '	2 "	50.8 mm	2	Tin
JST Sales America Inc. A02SR02SR30K305A	1	Socket to Socket Reversed	0.039 "	1 mm	IDC	1 ft		304.8 mm	2	Tin
JST Sales America Inc. A02SR02SR30K51B	1	Socket to Socket	0.039 "	1 mm	IDC	0.167 '	2 "	50.8 mm	2	Tin
JST Sales America Inc. A02SR02SR30K152A	1	Socket to Socket Reversed	0.039 "	1 mm	IDC		6 "	152.4 mm	2	Tin				0.5 '

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2 Position Cable Assembly Rectangular Socket to Socket 0.667' (203.20mm, 8.00")

Technical documentation and resources
