A02SR02SR30K305A
ActiveJST Sales America Inc.

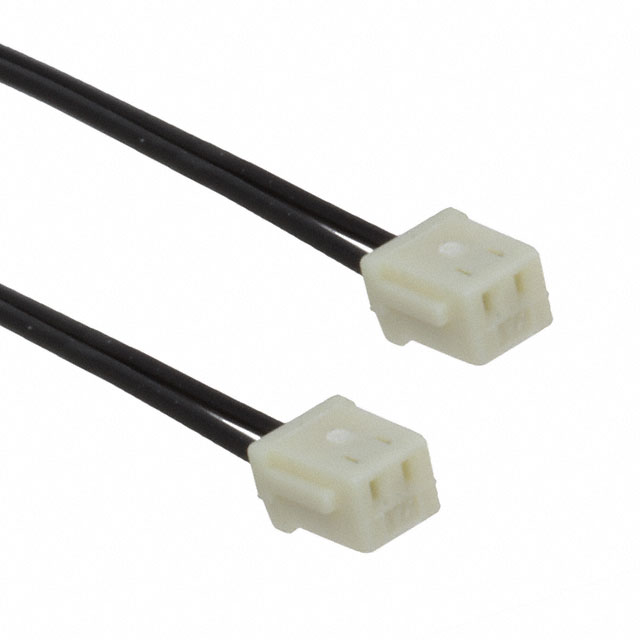

JUMPER 02SR-3S - 02SR-3S 12"
Deep-Dive with AI
Search across all available documentation for this part.
A02SR02SR30K305A
ActiveJST Sales America Inc.
JUMPER 02SR-3S - 02SR-3S 12"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A02SR02SR30K305A |
|---|---|
| Cable Termination | IDC |
| Connector Type | Socket to Socket, Reversed |
| Contact Finish | Tin |
| Length | 1 ft |
| Length | 304.8 mm |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Pitch - Connector | 0.039 " |
| Pitch - Connector | 1 mm |
A02SR02S Series
| Part | Number of Rows | Connector Type | Pitch - Connector | Pitch - Connector | Cable Termination | Length | Length | Length | Number of Positions | Contact Finish | Length [x] | Length [x] | Length [x] | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
JST Sales America Inc. | 1 | Socket to Socket Reversed | 0.039 " | 1 mm | IDC | 0.667 ft | 8 in | 203.2 mm | 2 | Tin | ||||
JST Sales America Inc. | 1 | Socket to Socket | 0.039 " | 1 mm | IDC | 1 ft | 304.8 mm | 2 | Tin | |||||
JST Sales America Inc. | 1 | Socket to Socket | 0.039 " | 1 mm | IDC | 0.667 ft | 8 in | 203.2 mm | 2 | Tin | ||||
JST Sales America Inc. | 1 | Socket to Socket Reversed | 0.039 " | 1 mm | IDC | 2 | Tin | 4 " | 0.333 ft | 101.6 mm | ||||
JST Sales America Inc. | 1 | Socket to Socket | 0.039 " | 1 mm | IDC | 0.833 ft | 10 in | 254 mm | 2 | Tin | ||||
JST Sales America Inc. | 1 | Socket to Socket Reversed | 0.039 " | 1 mm | IDC | 0.833 ft | 10 in | 254 mm | 2 | Tin | ||||
JST Sales America Inc. | 1 | Socket to Socket Reversed | 0.039 " | 1 mm | IDC | 0.167 ' | 2 " | 50.8 mm | 2 | Tin | ||||
JST Sales America Inc. | 1 | Socket to Socket Reversed | 0.039 " | 1 mm | IDC | 1 ft | 304.8 mm | 2 | Tin | |||||
JST Sales America Inc. | 1 | Socket to Socket | 0.039 " | 1 mm | IDC | 0.167 ' | 2 " | 50.8 mm | 2 | Tin | ||||
JST Sales America Inc. | 1 | Socket to Socket Reversed | 0.039 " | 1 mm | IDC | 6 " | 152.4 mm | 2 | Tin | 0.5 ' |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.41 | |
| 10 | $ 1.19 | |||
| 100 | $ 1.07 | |||
| 1000 | $ 0.78 | |||
| 5000 | $ 0.68 | |||
| 10000 | $ 0.65 | |||
Description
General part information
A02SR02S Series
2 Position Cable Assembly Rectangular Socket to Socket, Reversed 1.00' (304.80mm)
