19302241752

Active

HARTING Technology Group

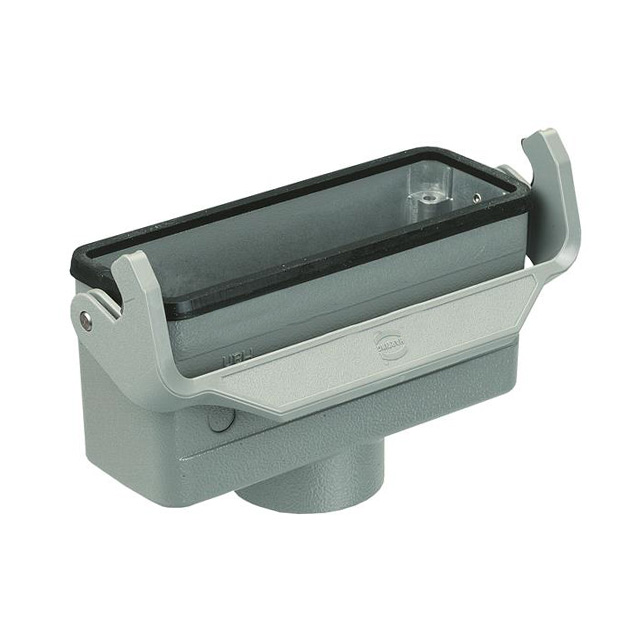

24B HOOD CABLE TO CABLE, SINGLE LEVER, LOW CONSTRUCTION, M32 - HIGH MATING CYCLE VERSION

Search across all available documentation for this part.

Active

HARTING Technology Group

24B HOOD CABLE TO CABLE, SINGLE LEVER, LOW CONSTRUCTION, M32 - HIGH MATING CYCLE VERSION

Technical Specifications

Parameters and characteristics for this part

Specification	19302241752

Connector Type	Hood - Coupling
Features	Cable to Cable
Housing Color	Gray
Housing Finish	Powder Coated
Housing Material	Die Cast, Aluminum
Ingress Protection	IP65 - Dust Tight, Water Resistant
Lock Location	Locking Clip (1) on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	120 mm
Size / Dimension [x]	4.724 "
Size / Dimension [y]	1.693 in
Size / Dimension [y]	43 mm
Size / Dimension [z]	2.26 "
Size / Dimension [z]	57.4 mm
Style	Top Entry
Thread Size	M32

Part	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Size	Connector Type	Housing Finish	Thread Size	Housing Color	Lock Location	Ingress Protection	Operating Temperature [Max]	Operating Temperature [Min]	Housing Material	Style	Features
HARTING Technology Group 19302241542	120 mm	2.461 in	4.724 "	1.693 in	62.5 mm	43 mm	24 B	Hood	Powder Coated	M32	Gray	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Aluminum Die Cast	Side Entry
HARTING Technology Group 19302241291	5.669 in 144 mm				2.197 in 55.8 mm	2.244 " 57 mm	24 B	Base - Box Mount	Powder Coated	M25	Gray	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Aluminum Die Cast	Side Entry Dual	Feed Through
HARTING Technology Group 19302241541	120 mm	2.461 in	4.724 "	1.693 in	62.5 mm	43 mm	24 B	Hood	Powder Coated	M25	Gray	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Aluminum Die Cast	Side Entry
HARTING Technology Group 19302241752	120 mm	2.26 "	4.724 "	1.693 in	57.4 mm	43 mm	24 B	Hood - Coupling	Powder Coated	M32	Gray	Locking Clip (1) on Hood	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Aluminum Die Cast	Top Entry	Cable to Cable
HARTING Technology Group 19302241442	120 mm	2.165 in	4.724 "	1.693 in	55 mm	43 mm	24 B	Hood	Powder Coated	M32	Gray	Locking Clip (1) on Base Bottom	IP65 - Dust Tight Water Resistant	125 °C	-40 °C	Aluminum Die Cast	Top Entry

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Hood - Coupling Connector Top Entry M32 24B IP65 - Dust Tight, Water Resistant
