19302241542 - 19302241542

19302241542

Active
HARTING Technology Group

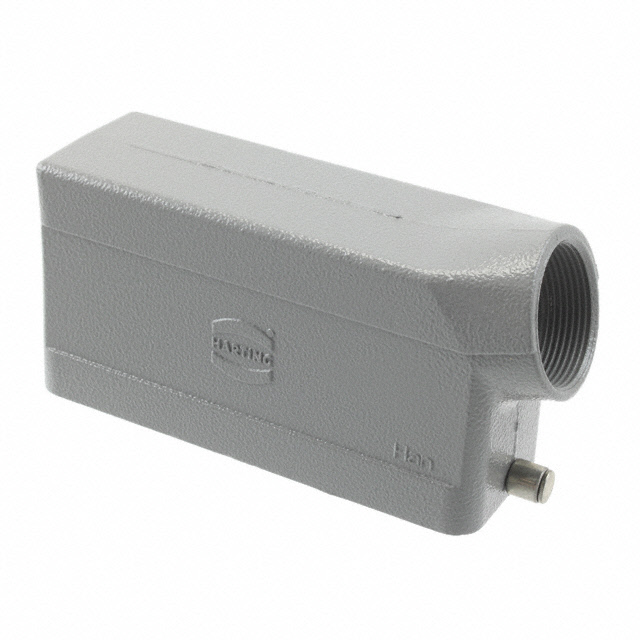

HEAVY DUTY CONNECTOR, M32 SIDE ENTRY, 2 PEGS, LOW PROFILE, HOOD, SIDE ENTRY, ALUMINUM BODY, 1 LEVER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet19302241542 Prod Declaration Cert+2
19302241542 - 19302241542

19302241542

Active
HARTING Technology Group

HEAVY DUTY CONNECTOR, M32 SIDE ENTRY, 2 PEGS, LOW PROFILE, HOOD, SIDE ENTRY, ALUMINUM BODY, 1 LEVER

Deep-Dive with AI

DocumentsDatasheet19302241542 Prod Declaration Cert+2

Technical Specifications

Parameters and characteristics for this part

Specification19302241542
Connector TypeHood
Housing ColorGray
Housing FinishPowder Coated
Housing MaterialDie Cast, Aluminum
Ingress ProtectionIP65 - Dust Tight, Water Resistant
Lock LocationLocking Clip (1) on Base Bottom
Operating Temperature [Max]125 °C
Operating Temperature [Min]-40 °C
Size24 B
Size / Dimension [x]120 mm
Size / Dimension [x]4.724 "
Size / Dimension [y]1.693 in
Size / Dimension [y]43 mm
Size / Dimension [z]2.461 in
Size / Dimension [z]62.5 mm
StyleSide Entry
Thread SizeM32

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 46.76
10$ 34.73
25$ 31.27
50$ 29.02
100$ 27.05
250$ 24.80
NewarkEach 1$ 34.30
10$ 31.10
25$ 29.86
50$ 27.90
100$ 26.84
250$ 25.42
TMEN/A 1$ 36.58
25$ 29.49
50$ 27.75
250$ 24.70

Description

General part information

19302241 Series

The 19302241542 from Harting is a Han® B HMC (High Mating Cycles) side entry, 24B size, low construction standard hood. Single lever locking system metal hood is suitable for industrial applications.
