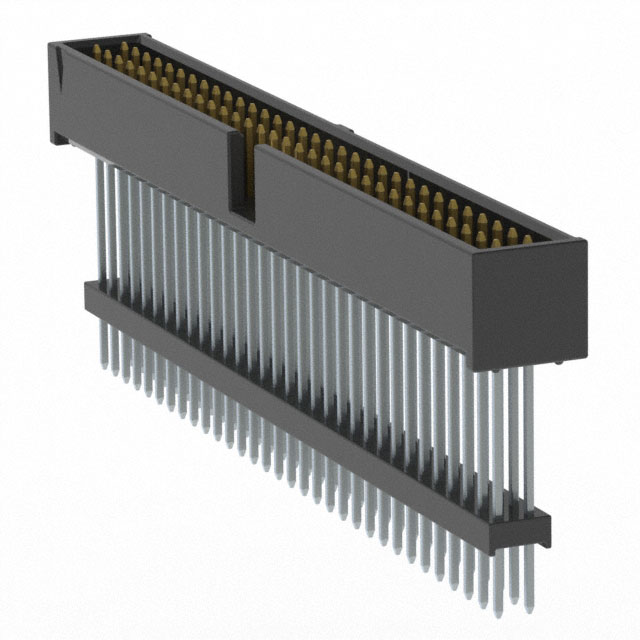

ZSS-132-06-L-D-915

Active

Samtec Inc.

CONN HDR .100" 64POS

Deep-Dive with AI

Search across all available documentation for this part.

ZSS-132-06-L-D-915

Active

Samtec Inc.

CONN HDR .100" 64POS

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ZSS-132-06-L-D-915

Connector Type	Elevated, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Length - Mating	6.35 mm
Contact Length - Mating	0.25 in
Contact Length - Post	0.215 in
Contact Length - Post	5.46 mm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Material	Polyester, Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	64
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overall Contact Length	28.7 mm
Overall Contact Length	1.13 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder

ZSS-132 Series

Headers & Wire Housings .100" Shrouded Elevated Terminal Strip

Part	Mounting Type	Contact Shape	Current Rating (Amps)	Contact Finish - Post	Number of Rows	Number of Positions	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Insulation Material	Insulation Height	Insulation Height	Features	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Connector Type	Contact Type	Termination	Contact Material	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Contact Length - Mating	Contact Length - Mating	Style	Fastening Type	Insulation Color	Pitch - Mating	Pitch - Mating	Material Flammability Rating	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Shrouding	Overall Contact Length	Overall Contact Length	Overall Contact Length [x]	Overall Contact Length [x]	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]	Contact Length - Post [x]
Samtec Inc. ZSS-132-09-G-D-1315	Through Hole	Square	3 A	Gold	2	64	2.92 mm	0.115 in	All	Polyester Glass Filled	1.315 in	33.4 mm	Keying Slot	3 µin	0.076 µm	Elevated Header	Male Pin	Solder	Phosphor Bronze	2.54 mm	0.1 in	-55 °C	125 °C	6.35 mm	0.25 in	Board to Board Cable	Push-Pull	Black	0.1 in	2.54 mm	UL94 V-0	Gold	10 çin	0.25 çm	Shrouded - 4 Wall
Samtec Inc. ZSS-132-06-G-D-940	Through Hole	Square	3 A	Gold	2	64	4.83 mm	0.19 in	All	Polyester Glass Filled	0.94 in	23.88 mm	Keying Slot	3 µin	0.076 µm	Elevated Header	Male Pin	Solder	Phosphor Bronze	2.54 mm	0.1 in	-55 °C	125 °C	6.35 mm	0.25 in	Board to Board Cable	Push-Pull	Black	0.1 in	2.54 mm	UL94 V-0	Gold	10 çin	0.25 çm	Shrouded - 4 Wall	28.7 mm	1.13 in
Samtec Inc. ZSS-132-01-L-D-540	Through Hole	Square	3 A	Tin	2	64	2.29 mm	0.09 "	All	Polyester Glass Filled	0.54 in	13.72 mm	Keying Slot			Elevated Header	Male Pin	Solder	Phosphor Bronze	2.54 mm	0.1 in	-55 °C	125 °C	6.35 mm	0.25 in	Board to Board Cable	Push-Pull	Black	0.1 in	2.54 mm	UL94 V-0	Gold	10 çin	0.25 çm	Shrouded - 4 Wall			0.63 "	16 mm
Samtec Inc. ZSS-132-07-S-D-1065	Through Hole	Square	3 A	Tin	2	64			All	Polyester Glass Filled			Keying Slot			Elevated Header	Male Pin	Solder	Phosphor Bronze	2.54 mm	0.1 in	-55 °C	125 °C	6.35 mm	0.25 in	Board to Board Cable	Push-Pull	Black	0.1 in	2.54 mm	UL94 V-0	Gold	30 Áin	0.76 Ám	Shrouded - 4 Wall	31.24 mm	1.23 in			1.065 in	27.05 mm	0.165 in	4.19 mm
Samtec Inc. ZSS-132-02-G-D-540	Through Hole	Square	3 A	Gold	2	64	4.83 mm	0.19 in	All	Polyester Glass Filled	0.54 in	13.72 mm	Keying Slot	3 µin	0.076 µm	Elevated Header	Male Pin	Solder	Phosphor Bronze	2.54 mm	0.1 in	-55 °C	125 °C	6.35 mm	0.25 in	Board to Board Cable	Push-Pull	Black	0.1 in	2.54 mm	UL94 V-0	Gold	10 çin	0.25 çm	Shrouded - 4 Wall	18.54 mm	0.73 in
Samtec Inc. ZSS-132-06-L-D-915	Through Hole	Square	3 A	Tin	2	64	5.46 mm	0.215 in	All	Polyester Glass Filled			Keying Slot			Elevated Header	Male Pin	Solder	Phosphor Bronze	2.54 mm	0.1 in	-55 °C	125 °C	6.35 mm	0.25 in	Board to Board Cable	Push-Pull	Black	0.1 in	2.54 mm	UL94 V-0	Gold	10 çin	0.25 çm	Shrouded - 4 Wall	28.7 mm	1.13 in
Samtec Inc. ZSS-132-02-G-D-640	Through Hole	Square	3 A	Gold	2	64	2.29 mm	0.09 "	All	Polyester Glass Filled	0.64 in	16.26 mm	Keying Slot	3 µin	0.076 µm	Elevated Header	Male Pin	Solder	Phosphor Bronze	2.54 mm	0.1 in	-55 °C	125 °C	6.35 mm	0.25 in	Board to Board Cable	Push-Pull	Black	0.1 in	2.54 mm	UL94 V-0	Gold	10 çin	0.25 çm	Shrouded - 4 Wall	18.54 mm	0.73 in
Samtec Inc. ZSS-132-08-G-D-1204	Through Hole	Square	3 A	Gold	2	64	3.2 mm		All	Polyester Glass Filled	1.204 in	30.58 mm	Keying Slot	3 µin	0.076 µm	Elevated Header	Male Pin	Solder	Phosphor Bronze	2.54 mm	0.1 in	-55 °C	125 °C	6.35 mm	0.25 in	Board to Board Cable	Push-Pull	Black	0.1 in	2.54 mm	UL94 V-0	Gold	10 çin	0.25 çm	Shrouded - 4 Wall	33.78 mm	1.33 in					0.126 in
Samtec Inc. ZSS-132-02-L-D-615	Through Hole	Square	3 A	Tin	2	64	2.92 mm	0.115 in	All	Polyester Glass Filled	0.615 in	15.62 mm	Keying Slot			Elevated Header	Male Pin	Solder	Phosphor Bronze	2.54 mm	0.1 in	-55 °C	125 °C	6.35 mm	0.25 in	Board to Board Cable	Push-Pull	Black	0.1 in	2.54 mm	UL94 V-0	Gold	10 çin	0.25 çm	Shrouded - 4 Wall	18.54 mm	0.73 in
Samtec Inc. ZSS-132-08-L-D-1200	Through Hole	Square	3 A	Tin	2	64	3.3 mm	0.13 in	All	Polyester Glass Filled	1.2 in	30.48 mm	Keying Slot			Elevated Header	Male Pin	Solder	Phosphor Bronze	2.54 mm	0.1 in	-55 °C	125 °C	6.35 mm	0.25 in	Board to Board Cable	Push-Pull	Black	0.1 in	2.54 mm	UL94 V-0	Gold	10 çin	0.25 çm	Shrouded - 4 Wall	33.78 mm	1.33 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.50

Description

General part information

ZSS-132 Series

Headers & Wire Housings .100" Shrouded Elevated Terminal Strip
