ABS1610509

Obsolete

Panasonic Electric Works

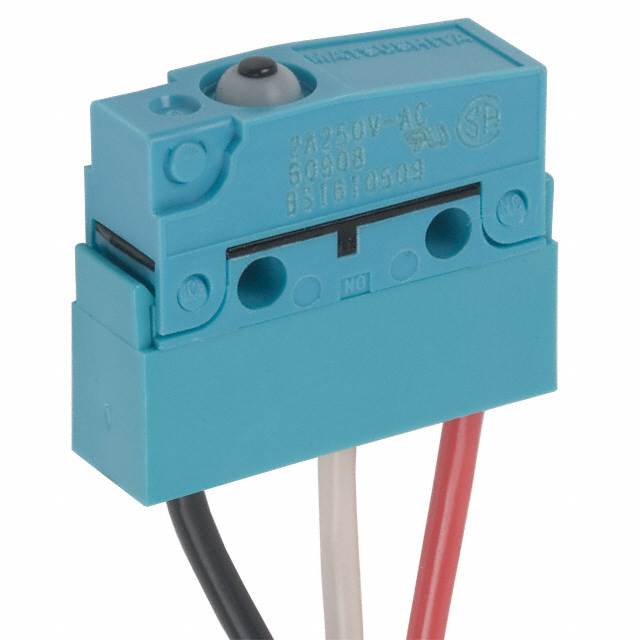

SWITCH SNAP ACTION SPDT 2A 125V

Deep-Dive with AI

DocumentsABS Type Catalog Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ABS1610509

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating (Amps)	2 A
Differential Travel	0.1 mm
Differential Travel	0.004 in
Electrical Life	50000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	5000000 Cycles
Mounting Type	Chassis Mount
Operating Force	150 gf
Operating Position	8.4 mm
Operating Position	0.33 in
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.4 mm
Overtravel	0.015 "
Pretravel	0.024 in
Pretravel	0.6 mm
Release Force	20 gf
Switch Function	On-Mom
Termination Style	Wire Leads
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

ABS161 Series

Part	Ingress Protection	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Operating Position	Operating Position	Differential Travel	Differential Travel	Voltage Rating - AC	Circuit	Overtravel	Overtravel	Operating Force	Termination Style	Current Rating (Amps)	Pretravel	Pretravel	Mechanical Life	Actuator Type	Voltage Rating - DC	Switch Function	Release Force	Operating Position [custom]	Operating Position [custom]
Panasonic Electric Works ABS1612519	IP67 - Dust Tight Waterproof	200000 Cycles	85 °C	-40 °C	Chassis Mount	8.8 mm	0.345 in	0.8 mm	0.031 "	125 V	SPDT	1.2 mm	0.047 "	55 gf	Wire Leads	100 mA	0.11 in	2.8 mm	5000000 Cycles	Lever Straight	30 V	On-Mom	3.5 gf
Panasonic Electric Works ABS1610509	IP67 - Dust Tight Waterproof	50000 Cycles	85 °C	-40 °C	Chassis Mount	8.4 mm	0.33 in	0.1 mm	0.004 in	125 V	SPDT	0.4 mm	0.015 "	150 gf	Wire Leads	2 A	0.024 in	0.6 mm	5000000 Cycles	Round (Pin Plunger)	30 V	On-Mom	20 gf
Panasonic Electric Works ABS1613409	IP67 - Dust Tight Waterproof	50000 Cycles	85 °C	-40 °C	Chassis Mount	8.8 mm	0.345 in	1 mm	0.04 in	125 V	SPDT	1.6 mm	0.062 in		Wire Leads	2 A	0.138 in	3.5 mm	5000000 Cycles	Lever Straight	30 V	On-Mom	2.5 gf
Panasonic Electric Works ABS1614509	IP67 - Dust Tight Waterproof	50000 Cycles	85 °C	-40 °C	Chassis Mount	11.7 mm	0.46 in	0.8 mm	0.031 "	125 V	SPDT	1.2 mm	0.047 "	55 gf	Wire Leads	2 A	0.11 in	2.8 mm	5000000 Cycles	Lever Simulated Roller	30 V	On-Mom	3.5 gf
Panasonic Electric Works ABS1616419	IP67 - Dust Tight Waterproof	200000 Cycles	85 °C	-40 °C	Chassis Mount			0.5 mm	0.02 in	125 V	SPDT	0.81 mm	0.032 in	40 gf	Wire Leads	100 mA	0.1 in	2.5 mm	5000000 Cycles	Lever Roller	30 V	On-Mom	3.5 gf	0.571 in	14.5 mm
Panasonic Electric Works ABS161640	IP67 - Dust Tight Waterproof	50000 Cycles	85 °C	-40 °C	Chassis Mount			0.5 mm	0.02 in	125 V	SPDT	0.81 mm	0.032 in	40 gf	Wire Leads	2 A	0.1 in	2.5 mm	5000000 Cycles	Lever Roller	30 V	On-Mom	3.5 gf	0.571 in	14.5 mm
Panasonic Electric Works ABS1613509	IP67 - Dust Tight Waterproof	50000 Cycles	85 °C	-40 °C	Chassis Mount	8.8 mm	0.345 in	1 mm	0.04 in	125 V	SPDT	1.6 mm	0.062 in		Wire Leads	2 A	0.138 in	3.5 mm	5000000 Cycles	Lever Straight	30 V	On-Mom	3.059 gf
Panasonic Electric Works ABS1610519	IP67 - Dust Tight Waterproof	200000 Cycles	85 °C	-40 °C	Chassis Mount	8.4 mm	0.33 in	0.1 mm	0.004 in	125 V	SPDT	0.4 mm	0.015 "	150 gf	Wire Leads	100 mA	0.024 in	0.6 mm	5000000 Cycles	Round (Pin Plunger)	30 V	On-Mom	20 gf
