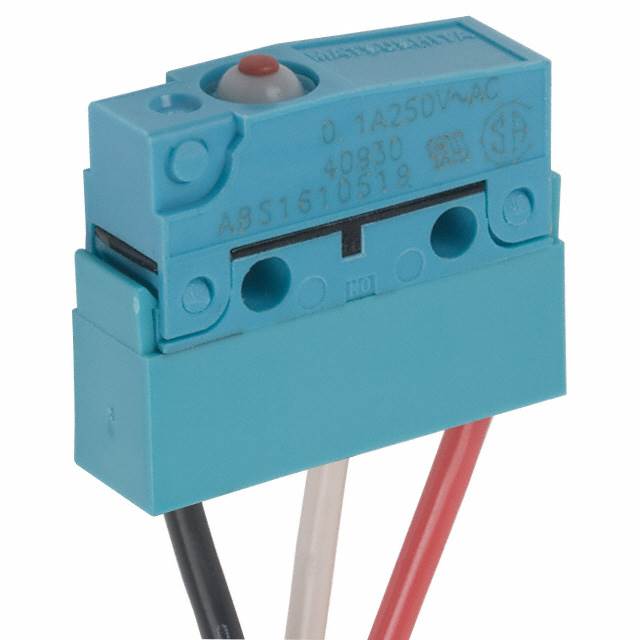

ABS1610519

Active

Panasonic Electric Works

SWITCH SNAP ACT SPDT 0.1A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHow to Read Date Codes ABS Type Catalog

ABS1610519

Active

Panasonic Electric Works

SWITCH SNAP ACT SPDT 0.1A 125V

Deep-Dive with AI

DocumentsHow to Read Date Codes ABS Type Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ABS1610519

Actuator Type	Round (Pin Plunger)
Circuit	SPDT
Current Rating (Amps)	100 mA
Differential Travel	0.1 mm
Differential Travel	0.004 in
Electrical Life	200000 Cycles
Ingress Protection	IP67 - Dust Tight, Waterproof
Mechanical Life	5000000 Cycles
Mounting Type	Chassis Mount
Operating Force	150 gf
Operating Position	8.4 mm
Operating Position	0.33 in
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Overtravel	0.4 mm
Overtravel	0.015 "
Pretravel	0.024 in
Pretravel	0.6 mm
Release Force	20 gf
Switch Function	On-Mom
Termination Style	Wire Leads
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

ABS161 Series

Part	Ingress Protection	Electrical Life	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Operating Position	Operating Position	Differential Travel	Differential Travel	Voltage Rating - AC	Circuit	Overtravel	Overtravel	Operating Force	Termination Style	Current Rating (Amps)	Pretravel	Pretravel	Mechanical Life	Actuator Type	Voltage Rating - DC	Switch Function	Release Force	Operating Position [custom]	Operating Position [custom]
Panasonic Electric Works ABS1612519	IP67 - Dust Tight Waterproof	200000 Cycles	85 °C	-40 °C	Chassis Mount	8.8 mm	0.345 in	0.8 mm	0.031 "	125 V	SPDT	1.2 mm	0.047 "	55 gf	Wire Leads	100 mA	0.11 in	2.8 mm	5000000 Cycles	Lever Straight	30 V	On-Mom	3.5 gf
Panasonic Electric Works ABS1610509	IP67 - Dust Tight Waterproof	50000 Cycles	85 °C	-40 °C	Chassis Mount	8.4 mm	0.33 in	0.1 mm	0.004 in	125 V	SPDT	0.4 mm	0.015 "	150 gf	Wire Leads	2 A	0.024 in	0.6 mm	5000000 Cycles	Round (Pin Plunger)	30 V	On-Mom	20 gf
Panasonic Electric Works ABS1613409	IP67 - Dust Tight Waterproof	50000 Cycles	85 °C	-40 °C	Chassis Mount	8.8 mm	0.345 in	1 mm	0.04 in	125 V	SPDT	1.6 mm	0.062 in		Wire Leads	2 A	0.138 in	3.5 mm	5000000 Cycles	Lever Straight	30 V	On-Mom	2.5 gf
Panasonic Electric Works ABS1614509	IP67 - Dust Tight Waterproof	50000 Cycles	85 °C	-40 °C	Chassis Mount	11.7 mm	0.46 in	0.8 mm	0.031 "	125 V	SPDT	1.2 mm	0.047 "	55 gf	Wire Leads	2 A	0.11 in	2.8 mm	5000000 Cycles	Lever Simulated Roller	30 V	On-Mom	3.5 gf
Panasonic Electric Works ABS1616419	IP67 - Dust Tight Waterproof	200000 Cycles	85 °C	-40 °C	Chassis Mount			0.5 mm	0.02 in	125 V	SPDT	0.81 mm	0.032 in	40 gf	Wire Leads	100 mA	0.1 in	2.5 mm	5000000 Cycles	Lever Roller	30 V	On-Mom	3.5 gf	0.571 in	14.5 mm
Panasonic Electric Works ABS161640	IP67 - Dust Tight Waterproof	50000 Cycles	85 °C	-40 °C	Chassis Mount			0.5 mm	0.02 in	125 V	SPDT	0.81 mm	0.032 in	40 gf	Wire Leads	2 A	0.1 in	2.5 mm	5000000 Cycles	Lever Roller	30 V	On-Mom	3.5 gf	0.571 in	14.5 mm
Panasonic Electric Works ABS1613509	IP67 - Dust Tight Waterproof	50000 Cycles	85 °C	-40 °C	Chassis Mount	8.8 mm	0.345 in	1 mm	0.04 in	125 V	SPDT	1.6 mm	0.062 in		Wire Leads	2 A	0.138 in	3.5 mm	5000000 Cycles	Lever Straight	30 V	On-Mom	3.059 gf
Panasonic Electric Works ABS1610519	IP67 - Dust Tight Waterproof	200000 Cycles	85 °C	-40 °C	Chassis Mount	8.4 mm	0.33 in	0.1 mm	0.004 in	125 V	SPDT	0.4 mm	0.015 "	150 gf	Wire Leads	100 mA	0.024 in	0.6 mm	5000000 Cycles	Round (Pin Plunger)	30 V	On-Mom	20 gf

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 8.02

Description

General part information

ABS161 Series

Switch SPDT Chassis Mount

Documents

Technical documentation and resources

How to Read Date Codes

ABS Type Catalog

Datasheet
