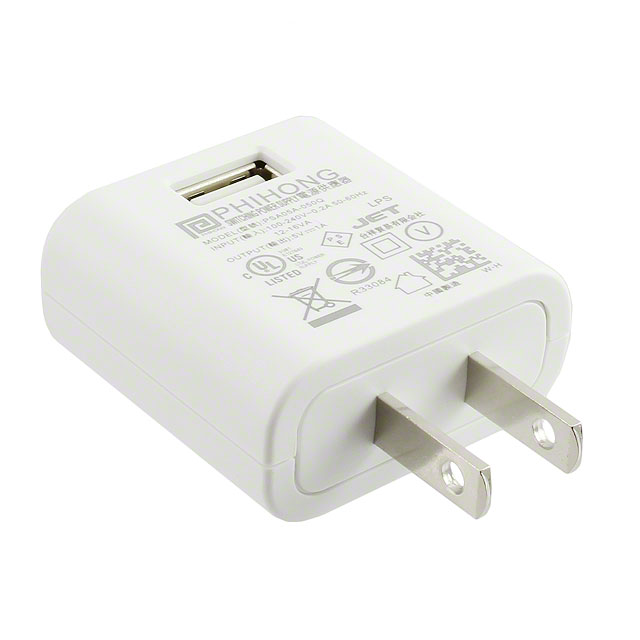

PSA05A-050QL6W

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 5W

Search across all available documentation for this part.

Active

Phihong USA

AC/DC WALL MOUNT ADAPTER 5V 5W

Technical Specifications

Parameters and characteristics for this part

Specification	PSA05A-050QL6W

Applications	ITE (Commercial)
Approval Agency	CE, CB, cULus
Current - Output (Max) [Max]	1 A
Efficiency	Level VI
Form	Wall Mount (Class II)
Input Connector	NEMA 1-15P
Input Type	Fixed Blade
No Load Power Consumption [Max]	30 mW
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Power (Watts)	5 W
Region Utilized	North America
Size / Dimension [x]	0.83 "
Size / Dimension [x]	21 mm
Size / Dimension [y]	43 mm
Size / Dimension [y]	1.69 in
Size / Dimension [z]	42 mm
Size / Dimension [z]	1.65 "
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	5 V
Weight	80.36 g
Weight	2.82 oz

Part	Applications	Form	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	No Load Power Consumption [Max]	Power (Watts)	Region Utilized	Input Type	Voltage - Output	Operating Temperature [Max]	Operating Temperature [Min]	Weight	Weight	Input Connector	Current - Output (Max) [Max]	Approval Agency	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Standard Number
Phihong USA PSA05A-050QL6W	ITE (Commercial)	Wall Mount (Class II)	Level VI	90 VAC	264 VAC	30 mW	5 W	North America	Fixed Blade	5 V	40 °C	0 °C	80.36 g	2.82 oz	NEMA 1-15P	1 A	CB CE cULus	0.83 "	43 mm	1.69 in	42 mm	21 mm	1.65 "
Phihong USA PSA05A-050QL6-H	ITE (Commercial)	Wall Mount (Class II)	Level VI	90 VAC	264 VAC	30 mW	5 W	North America	Fixed Blade	5 V	40 °C	0 °C	80.36 g	2.82 oz	NEMA 1-15P	1 A	BSMI cULus PSE	0.83 "	43 mm	1.69 in	42 mm	21 mm	1.65 "	55022 60950-1 62368-1 CNS13438 CNS14336-1 CNS15663

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

5V 5 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
