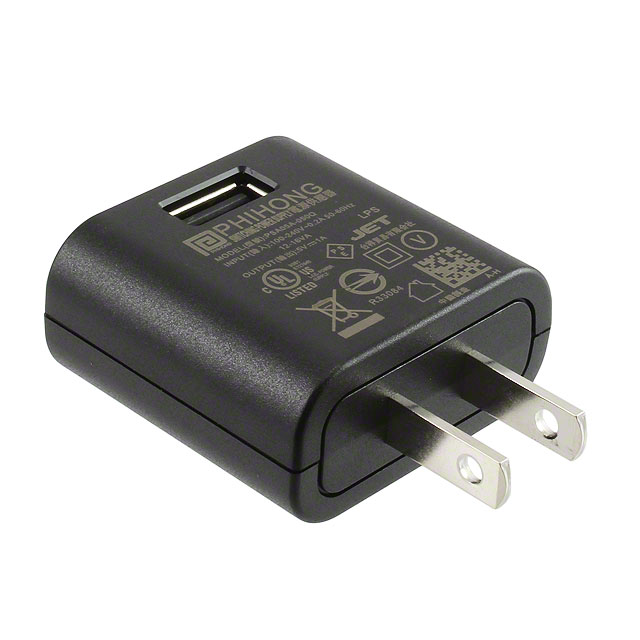

PSA05A-050QL6-H
ActivePhihong USA
AC/DC WALL MOUNT ADAPTER 5V 5W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PSA05A-050QL6-H
ActivePhihong USA
AC/DC WALL MOUNT ADAPTER 5V 5W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PSA05A-050QL6-H |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus, BSMI, PSE |
| Current - Output (Max) [Max] | 1 A |
| Efficiency | Level VI |
| Form | Wall Mount (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Fixed Blade |
| No Load Power Consumption [Max] | 30 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Power (Watts) | 5 W |
| Region Utilized | North America |
| Size / Dimension [x] | 0.83 " |
| Size / Dimension [x] | 21 mm |
| Size / Dimension [y] | 43 mm |
| Size / Dimension [y] | 1.69 in |
| Size / Dimension [z] | 42 mm |
| Size / Dimension [z] | 1.65 " |
| Standard Number | 60950-1, 55022, CNS15663, CNS14336-1, 62368-1, CNS13438 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 5 V |
| Weight | 80.36 g |
| Weight | 2.82 oz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 5.00 | |
| 10 | $ 4.53 | |||
| 25 | $ 4.27 | |||
| 100 | $ 4.09 | |||
| 250 | $ 3.97 | |||
| 500 | $ 3.76 | |||
| 1000 | $ 3.47 | |||
Description
General part information
PSA05A Series
5V 5 W AC/DC External Wall Mount (Class II) Adapter Fixed Blade Input
