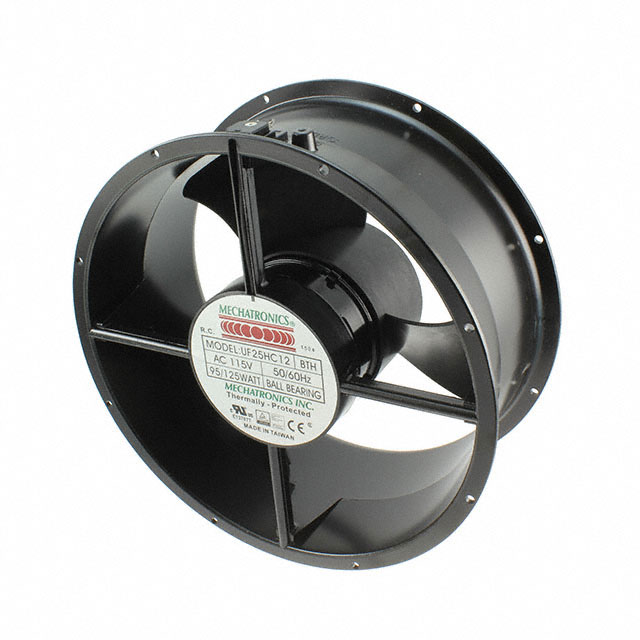

UF25HC12-BTHR
ActiveMechatronics Bearing Group
FAN AXIAL 254X107MM 115VAC
Deep-Dive with AI
Search across all available documentation for this part.
UF25HC12-BTHR
ActiveMechatronics Bearing Group
FAN AXIAL 254X107MM 115VAC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UF25HC12-BTHR |
|---|---|
| Air Flow | 23.8 mł/min |
| Air Flow | 850 CFM |
| Approval Agency | CE, cUL, TUV, UL |
| Bearing Type | Ball |
| Current Rating (Amps) | 1.07 A |
| Fan Type | Tubeaxial |
| Features | Thermal Overload Protector (TOP), Permanent Split Capacitor Motor |
| Material - Blade | Polybutylene Terephthalate (PBT) |
| Material - Frame | Aluminum |
| Noise | 65 dB |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 125 W |
| RPM | 2750 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 10 in |
| Static Pressure | 169.4 Pa |
| Static Pressure | 0.68 in H2O |
| Termination | 2 Terminals |
| Voltage - Rated | 115 VAC |
| Width [x] | 107 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 109.59 | |
| 10 | $ 97.70 | |||
| 25 | $ 93.33 | |||
| 50 | $ 90.15 | |||
| 100 | $ 87.08 | |||
Description
General part information
UF25H Series
Fan Tubeaxial 115VAC Round - 254mm Dia Ball 850.0 CFM (23.80m³/min) 2 Terminals
