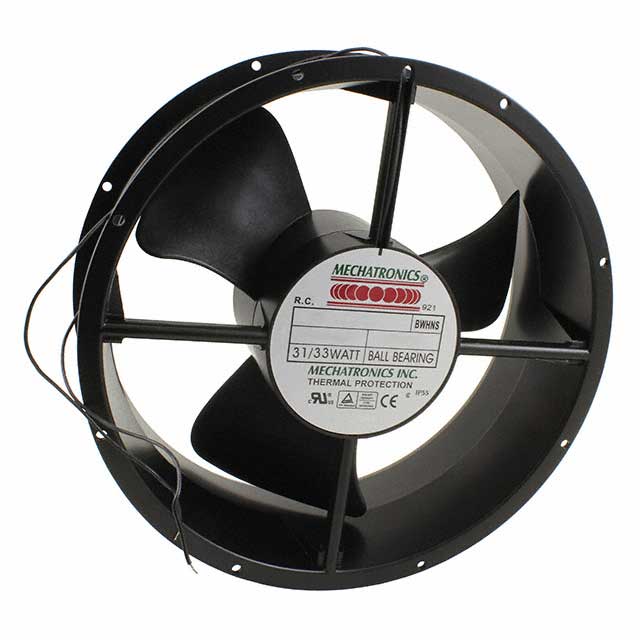

UF25HC12-BWHR

Active

Mechatronics Bearing Group

FAN AXIAL 254X107MM 115VAC WIRE

Search across all available documentation for this part.

Active

Mechatronics Bearing Group

FAN AXIAL 254X107MM 115VAC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	UF25HC12-BWHR

Air Flow	23.8 mł/min
Air Flow	850 CFM
Approval Agency	CE, cUL, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	1.07 A
Fan Type	Tubeaxial
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor
Material - Blade	Polybutylene Terephthalate (PBT)
Material - Frame	Aluminum
Noise	65 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	125 W
RPM	2750 RPM
Size / Dimension	Round
Size / Dimension [diameter]	10 in
Static Pressure	169.4 Pa
Static Pressure	0.68 in H2O
Termination	2 Wire Leads
Voltage - Rated	115 VAC
Width [x]	107 mm

Part	RPM	Approval Agency	Termination	Width [x]	Current Rating (Amps)	Noise	Material - Blade	Air Flow	Air Flow	Size / Dimension [diameter]	Size / Dimension	Voltage - Rated	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	Material - Frame	Static Pressure	Static Pressure	Features	Bearing Type	Fan Type	Power (Watts)
Mechatronics Bearing Group UF25HC12-BTHR	2750 RPM	CE cUL TUV UL	2 Terminals	107 mm	1.07 A	65 dB	Polybutylene Terephthalate (PBT)	23.8 mł/min	850 CFM	10 in	Round	115 VAC	70 °C	70 °C	-40 °C	-40 °C	Aluminum	169.4 Pa	0.68 in H2O	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	Ball	Tubeaxial	125 W
Mechatronics Bearing Group UF25HC12-BWHR	2750 RPM	CE cUL TUV UL	2 Wire Leads	107 mm	1.07 A	65 dB	Polybutylene Terephthalate (PBT)	23.8 mł/min	850 CFM	10 in	Round	115 VAC	70 °C	70 °C	-40 °C	-40 °C	Aluminum	169.4 Pa	0.68 in H2O	Permanent Split Capacitor Motor Thermal Overload Protector (TOP)	Ball	Tubeaxial	125 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 91.47

General part information

Fan Tubeaxial 115VAC Round - 254mm Dia Ball 850.0 CFM (23.80m³/min) 2 Wire Leads
