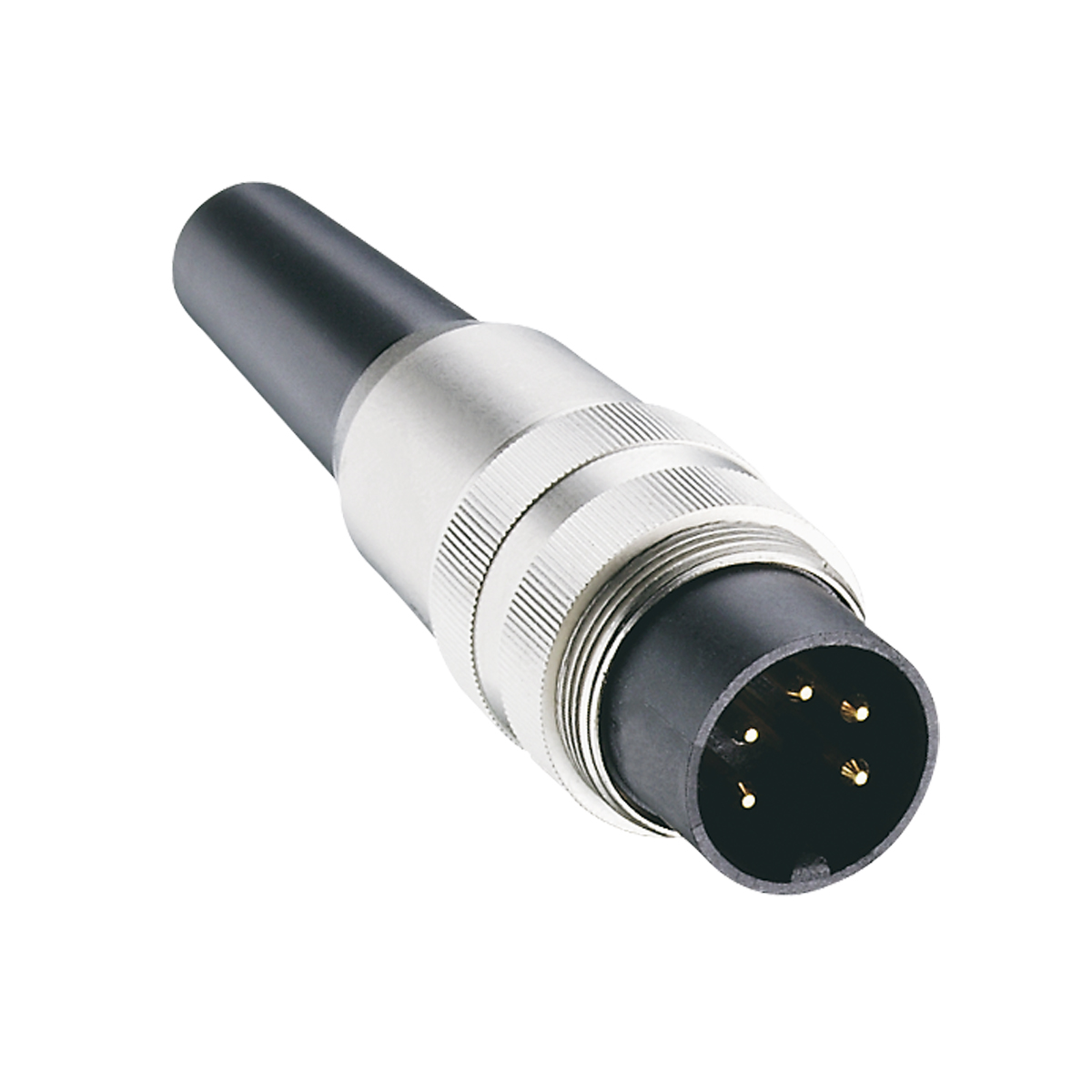

SV 81

Active

LUMBERG AUTOMATION

IP40 PLUG CABLEMOUNT SOLDER 8P

Search across all available documentation for this part.

Active

LUMBERG AUTOMATION

IP40 PLUG CABLEMOUNT SOLDER 8P

Technical Specifications

Parameters and characteristics for this part

Specification	SV 81

Color	Silver
Connector Type	Plug, Male Pins
Contact Finish - Mating	Silver, Gold
Features	Strain Relief
Ingress Protection	IP40
Material Flammability Rating	UL94
Mounting Type	Free Hanging (In-Line), Cable Mount
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	M16
Termination	Solder

Part	Color	Primary Material	Termination	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Shell Finish	Ingress Protection	Material Flammability Rating	Shell Size - Insert	Contact Finish - Mating	Mounting Type	Number of Positions	Shell Material	Features	Accessory Type
LUMBERG AUTOMATION SV 71	Silver	Metal	Solder	Male Pins Plug	85 °C	-40 °C	Nickel	IP40	UL94	M16	Gold Silver	Cable Mount Free Hanging (In-Line)	7	Zinc Alloy	Strain Relief
LUMBERG AUTOMATION SV 80	Silver	Metal	Solder	Male Pins Plug	85 °C	-40 °C	Nickel	IP40	UL94	M16	Gold Silver	Cable Mount Free Hanging (In-Line)	8	Zinc Alloy	Strain Relief
LUMBERG AUTOMATION 2298
LUMBERG AUTOMATION 58598
LUMBERG AUTOMATION 0382	Silver	Metal			85 °C	-40 °C	Tin	IP68		M16				Zinc Alloy	Ground Contact
LUMBERG AUTOMATION 934961001																Mounting Bracket
LUMBERG AUTOMATION 59922
LUMBERG AUTOMATION 47756
LUMBERG AUTOMATION KV 70	Silver	Metal	Solder	Male Pins Plug	85 °C	-40 °C	Nickel	IP40	UL94	M16	Gold Silver	Cable Mount Free Hanging (In-Line)	7	Zinc Alloy	Strain Relief
LUMBERG AUTOMATION SV 81	Silver	Metal	Solder	Male Pins Plug	85 °C	-40 °C	Nickel	IP40	UL94	M16	Gold Silver	Cable Mount Free Hanging (In-Line)	8	Zinc Alloy	Strain Relief

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

8 Position Circular Connector Plug, Male Pins Solder

Technical documentation and resources
