19433240256

Active

HARTING Technology Group

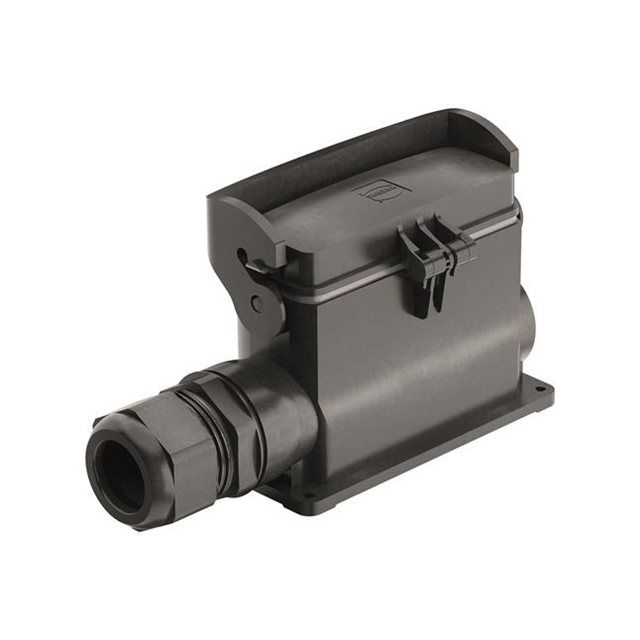

HEAVY DUTY CONNECTOR, SL-M25, W/COVER, BASE, CABLE MOUNT, SIDE ENTRY

Search across all available documentation for this part.

Active

HARTING Technology Group

HEAVY DUTY CONNECTOR, SL-M25, W/COVER, BASE, CABLE MOUNT, SIDE ENTRY

Technical Specifications

Parameters and characteristics for this part

Specification	19433240256

Connector Type	Base - Box Mount
Features	Cover
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP66
Lock Location	Locking Clip (1) on Base Bottom
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Size / Dimension [x]	5.669 "
Size / Dimension [x]	144 mm
Size / Dimension [y]	65 mm
Size / Dimension [y]	2.559 in
Size / Dimension [z]	88 mm
Size / Dimension [z]	3.465 "
Style	Side Entry
Thread Size	M25

Part	Housing Material	Style	Ingress Protection	Size	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Housing Color	Connector Type	Features
HARTING Technology Group 19433240267	Polyamide (PA) Nylon Glass Filled	Side Entry Dual	IP66	24 B	5.669 "	65 mm	88 mm	144 mm	3.465 "	2.559 in	M32	125 °C	-40 °C	Locking Clip (2) on Hood	Black	Base - Box Mount
HARTING Technology Group 19433240292	Polyamide (PA) Nylon Glass Filled	Side Entry	IP66	24 B	5.669 "	65 mm	88 mm	144 mm	3.465 "	2.559 in	M32	125 °C	-40 °C	Locking Clip (1) on Base Bottom	Black	Base - Box Mount	Feed Through
HARTING Technology Group 19433240758	Polyamide (PA) Nylon Glass Filled	Top Entry	IP66	24 B								125 °C	-40 °C	Locking Clip (1) on Hood	Black	Hood - Coupling	Cable to Cable
HARTING Technology Group 19433240256	Polyamide (PA) Nylon Glass Filled	Side Entry	IP66	24 B	5.669 "	65 mm	88 mm	144 mm	3.465 "	2.559 in	M25	125 °C	-40 °C	Locking Clip (1) on Base Bottom	Black	Base - Box Mount	Cover
HARTING Technology Group 19433240757	Polyamide (PA) Nylon Glass Filled	Top Entry	IP66	24 B							M32	125 °C	-40 °C	Locking Clip (1) on Hood	Black	Hood - Coupling	Cable to Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Base - Box Mount Connector Side Entry M25 24B IP66 - Dust Tight, Water Resistant
