19433240757

Active

HARTING Technology Group

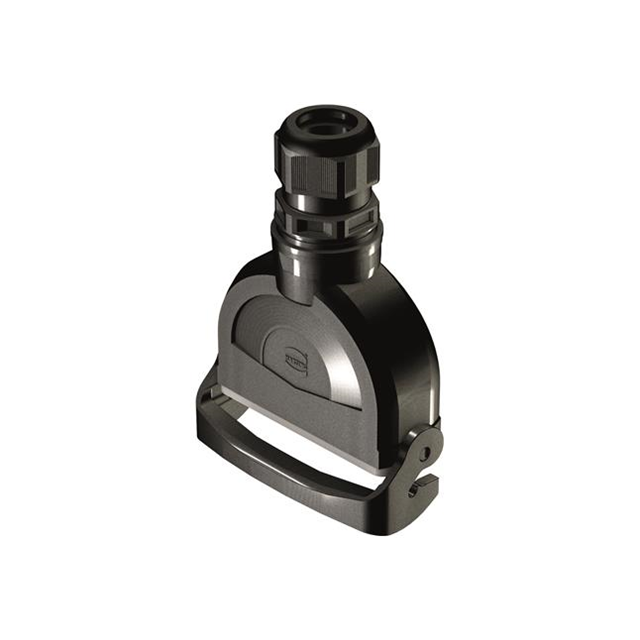

HAN-ECO 24B CABLE TO CABLE HOOD,

Search across all available documentation for this part.

Active

HARTING Technology Group

HAN-ECO 24B CABLE TO CABLE HOOD,

Technical Specifications

Parameters and characteristics for this part

Specification	19433240757

Connector Type	Hood - Coupling
Features	Cable to Cable
Housing Color	Black
Housing Material	Polyamide (PA), Nylon, Glass Filled
Ingress Protection	IP66
Lock Location	Locking Clip (1) on Hood
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Size	24 B
Style	Top Entry
Thread Size	M32

Part	Housing Material	Style	Ingress Protection	Size	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Thread Size	Operating Temperature [Max]	Operating Temperature [Min]	Lock Location	Housing Color	Connector Type	Features
HARTING Technology Group 19433240267	Polyamide (PA) Nylon Glass Filled	Side Entry Dual	IP66	24 B	5.669 "	65 mm	88 mm	144 mm	3.465 "	2.559 in	M32	125 °C	-40 °C	Locking Clip (2) on Hood	Black	Base - Box Mount
HARTING Technology Group 19433240292	Polyamide (PA) Nylon Glass Filled	Side Entry	IP66	24 B	5.669 "	65 mm	88 mm	144 mm	3.465 "	2.559 in	M32	125 °C	-40 °C	Locking Clip (1) on Base Bottom	Black	Base - Box Mount	Feed Through
HARTING Technology Group 19433240758	Polyamide (PA) Nylon Glass Filled	Top Entry	IP66	24 B								125 °C	-40 °C	Locking Clip (1) on Hood	Black	Hood - Coupling	Cable to Cable
HARTING Technology Group 19433240256	Polyamide (PA) Nylon Glass Filled	Side Entry	IP66	24 B	5.669 "	65 mm	88 mm	144 mm	3.465 "	2.559 in	M25	125 °C	-40 °C	Locking Clip (1) on Base Bottom	Black	Base - Box Mount	Cover
HARTING Technology Group 19433240757	Polyamide (PA) Nylon Glass Filled	Top Entry	IP66	24 B							M32	125 °C	-40 °C	Locking Clip (1) on Hood	Black	Hood - Coupling	Cable to Cable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 90.21

General part information

Hood - Coupling Connector Top Entry M32 24B IP66 - Dust Tight, Water Resistant
