761KS17

Active

Switchcraft Inc.

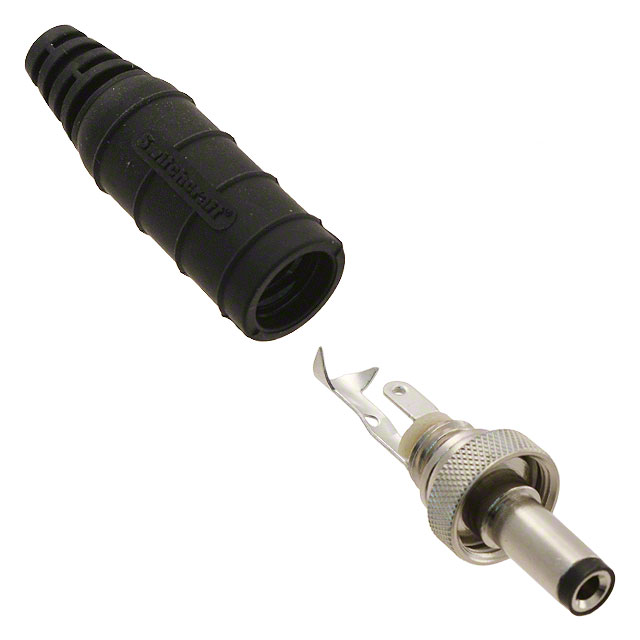

CONN PWR PLUG 2.5X5.5MM SOLDER

Search across all available documentation for this part.

Active

Switchcraft Inc.

CONN PWR PLUG 2.5X5.5MM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	761KS17

Actual Diameter [custom]	2.5 mm
Actual Diameter [custom]	0.098 "
Actual Diameter [custom]	0.217 "
Actual Diameter [custom]	5.5 mm
Body Color	Silver, Black
Body Material	Copper Alloy
Connector Type	Plug
Contact Material	Copper Alloy
Contact Material - Plating	Tin
Current Rating (Amps)	5 A
Features	Cable Clamp, Thread Lock
Gender	Female
Housing Material	Thermoplastic
Includes	1 Connector, 1 Handle
Industry Recognized Mating Diameter [diameter]	5.5 mm, 2.5 mm
Industry Recognized Mating Diameter [diameter]	0.098 ", 0.217 "
Ingress Protection	IP68
Insulation Color	Black
Internal Switch(s)	False
Mounting Type	Free Hanging (In-Line)
Number of Positions/Contacts [custom]	2
Number of Positions/Contacts [custom]	2
Shielding	Unshielded
Termination	Solder Eyelet(s)
Voltage - Rated	30 V

Part	Gender	Shielding	Connector Type	Termination	Contact Material	Contact Material - Plating	Housing Material	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Body Material	Ingress Protection	Insulation Color	Current Rating (Amps)	Includes	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Body Color	Voltage - Rated	Mounting Type	Features
Switchcraft Inc. 761KH
Switchcraft Inc. 761KS17	Female	Unshielded	Plug	Solder Eyelet(s)	Copper Alloy	Tin	Thermoplastic	2	2	Copper Alloy	IP68	Black	5 A	1 Connector 1 Handle	2.5 mm	0.098 "	0.217 "	5.5 mm	2.5 mm 5.5 mm	0.098 " 0.217 "	Black Silver	30 V	Free Hanging (In-Line)	Cable Clamp Thread Lock
Switchcraft Inc. 761KS15	Female	Unshielded	Plug	Solder Eyelet(s)	Copper Alloy	Tin	Thermoplastic	2	2	Copper Alloy	IP68	Black	5 A	1 Connector 1 Handle	2.5 mm	0.098 "	0.217 "	5.5 mm	2.5 mm 5.5 mm	0.098 " 0.217 "	Black Silver	30 V	Free Hanging (In-Line)	Cable Clamp Thread Lock
Switchcraft Inc. 761KS12	Female	Unshielded	Plug	Solder Eyelet(s)	Copper Alloy	Tin	Thermoplastic	2	2	Copper Alloy	IP68	Black	5 A	1 Connector 1 Handle	2.5 mm	0.098 "	0.217 "	5.5 mm	2.5 mm 5.5 mm	0.098 " 0.217 "	Black Silver	30 V	Free Hanging (In-Line)	Cable Clamp Thread Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector Plug 2.50mm ID (0.098"), 5.50mm OD (0.217") Free Hanging (In-Line)
