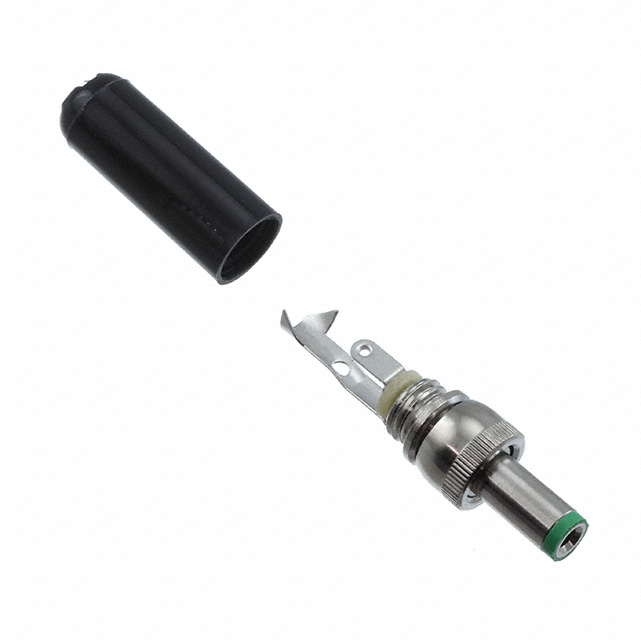

761KH

Active

Switchcraft Inc.

PLUG, 2.5MM ID, LONG BARREL, LOC

Search across all available documentation for this part.

Active

Switchcraft Inc.

PLUG, 2.5MM ID, LONG BARREL, LOC

Technical Specifications

Parameters and characteristics for this part

Specification	761KH

null

Part	Gender	Shielding	Connector Type	Termination	Contact Material	Contact Material - Plating	Housing Material	Number of Positions/Contacts [custom]	Number of Positions/Contacts [custom]	Body Material	Ingress Protection	Insulation Color	Current Rating (Amps)	Includes	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Actual Diameter [custom]	Industry Recognized Mating Diameter [diameter]	Industry Recognized Mating Diameter [diameter]	Body Color	Voltage - Rated	Mounting Type	Features
Switchcraft Inc. 761KH
Switchcraft Inc. 761KS17	Female	Unshielded	Plug	Solder Eyelet(s)	Copper Alloy	Tin	Thermoplastic	2	2	Copper Alloy	IP68	Black	5 A	1 Connector 1 Handle	2.5 mm	0.098 "	0.217 "	5.5 mm	2.5 mm 5.5 mm	0.098 " 0.217 "	Black Silver	30 V	Free Hanging (In-Line)	Cable Clamp Thread Lock
Switchcraft Inc. 761KS15	Female	Unshielded	Plug	Solder Eyelet(s)	Copper Alloy	Tin	Thermoplastic	2	2	Copper Alloy	IP68	Black	5 A	1 Connector 1 Handle	2.5 mm	0.098 "	0.217 "	5.5 mm	2.5 mm 5.5 mm	0.098 " 0.217 "	Black Silver	30 V	Free Hanging (In-Line)	Cable Clamp Thread Lock
Switchcraft Inc. 761KS12	Female	Unshielded	Plug	Solder Eyelet(s)	Copper Alloy	Tin	Thermoplastic	2	2	Copper Alloy	IP68	Black	5 A	1 Connector 1 Handle	2.5 mm	0.098 "	0.217 "	5.5 mm	2.5 mm 5.5 mm	0.098 " 0.217 "	Black Silver	30 V	Free Hanging (In-Line)	Cable Clamp Thread Lock

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Barrel Connector
