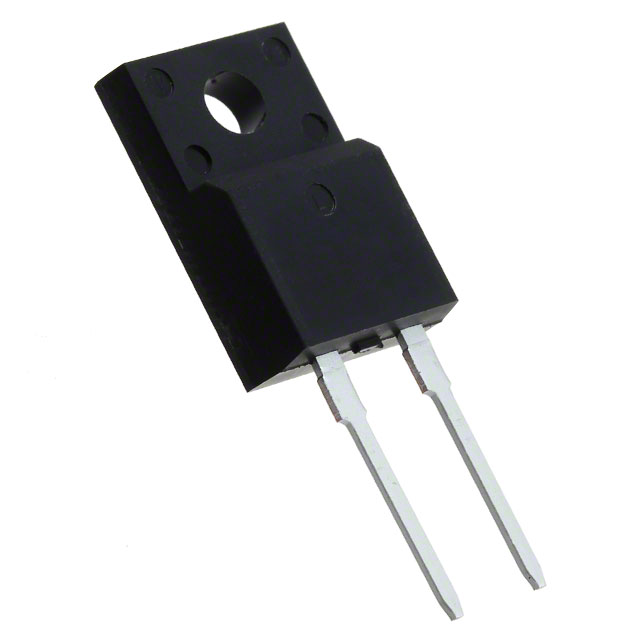

SCS315AMC

LTB

Rohm Semiconductor

DIODE SIL CARB 650V 15A TO220FM

Search across all available documentation for this part.

LTB

Rohm Semiconductor

DIODE SIL CARB 650V 15A TO220FM

Technical Specifications

Parameters and characteristics for this part

Specification	SCS315AMC

Current - Average Rectified (Io)	15 A
Current - Reverse Leakage @ Vr	75 µA
Mounting Type	Through Hole
Operating Temperature - Junction [Max]	175 °C
Package / Case	TO-220-2 Full Pack
Reverse Recovery Time (trr)	0 ns
Speed	No Recovery Time
Supplier Device Package	TO-220FM
Technology	SiC (Silicon Carbide) Schottky
Voltage - DC Reverse (Vr) (Max) [Max]	650 V
Voltage - Forward (Vf) (Max) @ If	15 A, 1.5 V

Part	Package / Case	Speed	Voltage - DC Reverse (Vr) (Max) [Max]	Mounting Type	Voltage - Forward (Vf) (Max) @ If	Supplier Device Package	Technology	Current - Reverse Leakage @ Vr	Operating Temperature - Junction [Max]	Current - Average Rectified (Io)	Reverse Recovery Time (trr)
Rohm Semiconductor SCS315AMC	TO-220-2 Full Pack	No Recovery Time	650 V	Through Hole	1.5 V 15 A	TO-220FM	SiC (Silicon Carbide) Schottky	75 µA	175 °C	15 A	0 ns
Rohm Semiconductor SCS315AHGC9	TO-220-2	No Recovery Time	650 V	Through Hole		TO-220ACP	SiC (Silicon Carbide) Schottky	75 µA	175 °C	15 A	0 ns

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1000	$ 3.45

General part information

Diode 650 V 15A Through Hole TO-220FM
