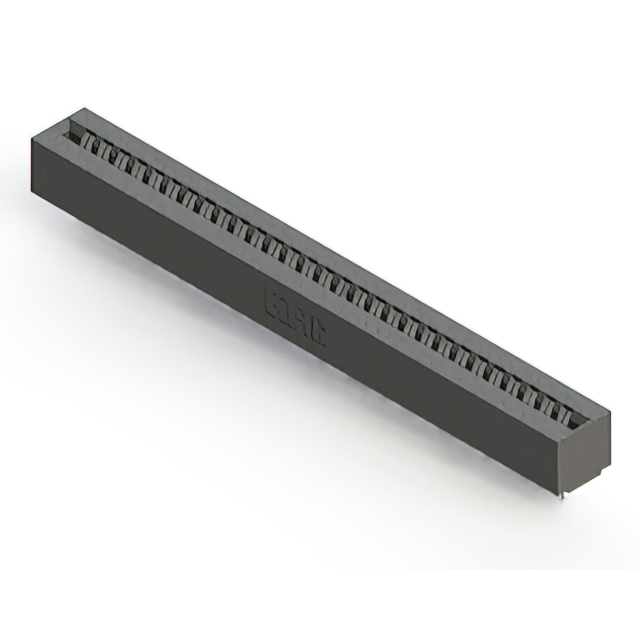

356-029-400-101
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
356-029-400-101
ActiveEDAC Inc.
CARD EDGE CONNECTOR ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 356-029-400-101 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 58 |
| Number of Positions/Bay/Row | 29 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder Eyelet(s) |
| Termination Rows | 1 |
356-029 Series
| Part | Features | Read Out | Operating Temperature [Min] | Operating Temperature [Max] | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Termination Rows | Gender | Contact Type | Material - Insulation | Pitch [x] | Pitch [x] | Termination | Number of Rows | Contact Finish | Flange Feature | Number of Positions | Mounting Type | Number of Positions/Bay/Row | Contact Material | Flange Feature [diameter] | Flange Feature [diameter] | Contact Finish Thickness | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Card Guides | Dual | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 1 | Female | Cantilever | Polyester Thermoplastic | 0.156 in | 3.96 mm | Solder | 2 | Tin | 4-40 Flush Mount Threaded Insert Top Opening | 58 | Panel Mount Through Hole | 29 | Copper Alloy | ||||
EDAC Inc. | Card Guides | Dual | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 1 | Female | Cantilever | Polyester Thermoplastic | 0.156 in | 3.96 mm | Solder | 2 | Tin | 4-40 Flush Mount Threaded Insert Top Opening | 58 | Panel Mount Through Hole | 29 | Copper Alloy | ||||
EDAC Inc. | Dual | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 1 | Female | Cantilever | Polyester Thermoplastic | 0.156 in | 3.96 mm | Solder | 2 | Gold | Flush Mount Side Opening Unthreaded | 58 | Panel Mount Through Hole | 29 | Copper Alloy | 3.25 mm | 0.128 " | 10 Áin | 0.25 Ám | |
EDAC Inc. | Dual | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 1 | Female | Cantilever | Polyester Thermoplastic | 0.156 in | 3.96 mm | Solder Eyelet(s) | 2 | Gold | Floating Bobbin Flush Mount | 58 | 29 | Copper Alloy | 2.95 mm | 0.116 in | 10 Áin | 0.25 Ám | ||
EDAC Inc. | Dual | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 1 | Female | Cantilever | Polyester Thermoplastic | 0.156 in | 3.96 mm | Solder | 2 | Tin | 58 | Through Hole | 29 | Copper Alloy | ||||||
EDAC Inc. | Dual | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 1 | Female | Cantilever | Polyester Thermoplastic | 0.156 in | 3.96 mm | Solder | 2 | Tin | Flush Mount M3 Threaded Insert Top Opening | 58 | Panel Mount Through Hole | 29 | Copper Alloy | |||||
EDAC Inc. | Card Guides | Dual | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 1 | Female | Cantilever | Polyester Thermoplastic | 0.156 in | 3.96 mm | Solder Eyelet(s) | 2 | Tin | 4-40 Flush Mount Threaded Insert Top Opening | 58 | 29 | Copper Alloy | |||||
EDAC Inc. | Dual | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 1 | Female | Cantilever | Polyester Thermoplastic | 0.156 in | 3.96 mm | Solder Eyelet(s) | 2 | Tin | Flush Mount Top Opening Unthreaded | 58 | 29 | Copper Alloy | 3.25 mm | 0.128 " | ||||
EDAC Inc. | Dual | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 1 | Female | Cantilever | Polyester Thermoplastic | 0.156 in | 3.96 mm | Solder | 2 | Gold | Flush Mount Top Opening Unthreaded | 58 | Panel Mount Through Hole | 29 | Copper Alloy | 3.25 mm | 0.128 " | 10 Áin | 0.25 Ám | |
EDAC Inc. | Dual | -40 °C | 105 ░C | Non Specified - Dual Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Black | 1 | Female | Cantilever | Polyester Thermoplastic | 0.156 in | 3.96 mm | Solder Eyelet(s) | 2 | Tin | 58 | Free Hanging (In-Line) | 29 | Copper Alloy |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
356-029 Series
58 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
