356-029-400-168

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

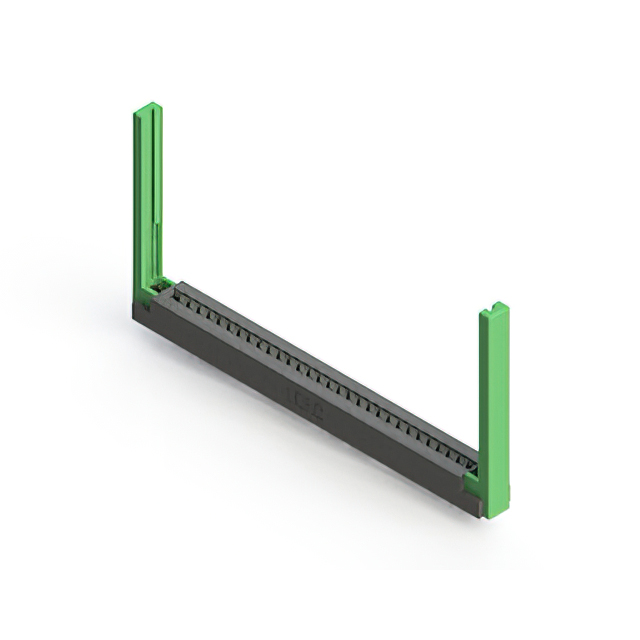

356-029-400-168

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	356-029-400-168

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Tin
Contact Material	Copper Alloy
Contact Type	Cantilever
Features	Card Guides
Flange Feature	Flush Mount, Threaded Insert, 4-40, Top Opening
Gender	Female
Material - Insulation	Polyester Thermoplastic
Number of Positions	58
Number of Positions/Bay/Row	29
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder Eyelet(s)
Termination Rows	1

356-029 Series

Part	Features	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Card Type	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Color	Termination Rows	Gender	Contact Type	Material - Insulation	Pitch [x]	Pitch [x]	Termination	Number of Rows	Contact Finish	Flange Feature	Number of Positions	Mounting Type	Number of Positions/Bay/Row	Contact Material	Flange Feature [diameter]	Flange Feature [diameter]	Contact Finish Thickness	Contact Finish Thickness
EDAC Inc. 356-029-420-178	Card Guides	Dual	-40 °C	105 ░C	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	1	Female	Cantilever	Polyester Thermoplastic	0.156 in	3.96 mm	Solder	2	Tin	4-40 Flush Mount Threaded Insert Top Opening	58	Panel Mount Through Hole	29	Copper Alloy
EDAC Inc. 356-029-421-158	Card Guides	Dual	-40 °C	105 ░C	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	1	Female	Cantilever	Polyester Thermoplastic	0.156 in	3.96 mm	Solder	2	Tin	4-40 Flush Mount Threaded Insert Top Opening	58	Panel Mount Through Hole	29	Copper Alloy
EDAC Inc. 356-029-520-112		Dual	-40 °C	105 ░C	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	1	Female	Cantilever	Polyester Thermoplastic	0.156 in	3.96 mm	Solder	2	Gold	Flush Mount Side Opening Unthreaded	58	Panel Mount Through Hole	29	Copper Alloy	3.25 mm	0.128 "	10 Áin	0.25 Ám
EDAC Inc. 356-029-500-103		Dual	-40 °C	105 ░C	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	1	Female	Cantilever	Polyester Thermoplastic	0.156 in	3.96 mm	Solder Eyelet(s)	2	Gold	Floating Bobbin Flush Mount	58		29	Copper Alloy	2.95 mm	0.116 in	10 Áin	0.25 Ám
EDAC Inc. 356-029-421-101		Dual	-40 °C	105 ░C	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	1	Female	Cantilever	Polyester Thermoplastic	0.156 in	3.96 mm	Solder	2	Tin		58	Through Hole	29	Copper Alloy
EDAC Inc. 356-029-421-107		Dual	-40 °C	105 ░C	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	1	Female	Cantilever	Polyester Thermoplastic	0.156 in	3.96 mm	Solder	2	Tin	Flush Mount M3 Threaded Insert Top Opening	58	Panel Mount Through Hole	29	Copper Alloy
EDAC Inc. 356-029-400-168	Card Guides	Dual	-40 °C	105 ░C	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	1	Female	Cantilever	Polyester Thermoplastic	0.156 in	3.96 mm	Solder Eyelet(s)	2	Tin	4-40 Flush Mount Threaded Insert Top Opening	58		29	Copper Alloy
EDAC Inc. 356-029-400-102		Dual	-40 °C	105 ░C	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	1	Female	Cantilever	Polyester Thermoplastic	0.156 in	3.96 mm	Solder Eyelet(s)	2	Tin	Flush Mount Top Opening Unthreaded	58		29	Copper Alloy	3.25 mm	0.128 "
EDAC Inc. 356-029-520-102		Dual	-40 °C	105 ░C	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	1	Female	Cantilever	Polyester Thermoplastic	0.156 in	3.96 mm	Solder	2	Gold	Flush Mount Top Opening Unthreaded	58	Panel Mount Through Hole	29	Copper Alloy	3.25 mm	0.128 "	10 Áin	0.25 Ám
EDAC Inc. 356-029-400-101		Dual	-40 °C	105 ░C	Non Specified - Dual Edge	1.37 mm	0.054 "	1.78 mm	0.07 in	Black	1	Female	Cantilever	Polyester Thermoplastic	0.156 in	3.96 mm	Solder Eyelet(s)	2	Tin		58	Free Hanging (In-Line)	29	Copper Alloy

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 18.54
Newark	Each	1	$ 21.53
		100	$ 13.30
		250	$ 11.37
		500	$ 10.10
		1000	$ 8.56

Description

General part information

356-029 Series

58 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Black
