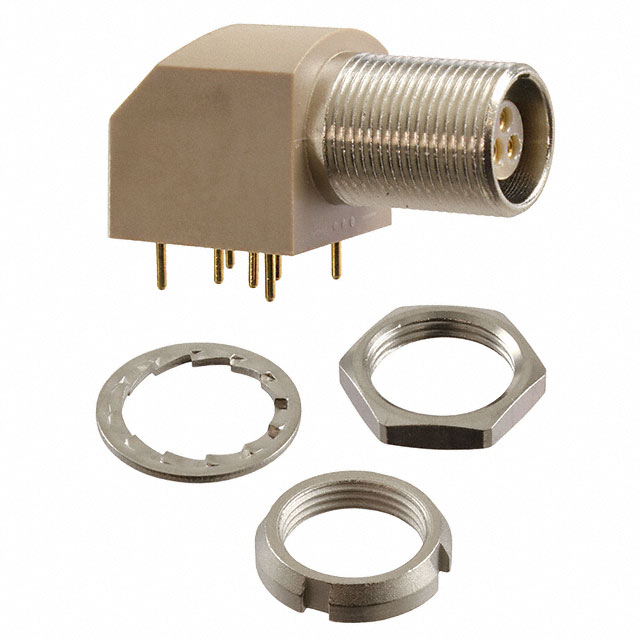

EXG.0B.303.HLN

Active

LEMO

CONN RCPT FMALE 3POS GOLD SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EXG.0B.303.HLN

Active

LEMO

CONN RCPT FMALE 3POS GOLD SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	EXG.0B.303.HLN

Color	Brown, Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	59 Áin
Contact Finish Thickness - Mating	1.5 Ám
Contact Material	Bronze
Current Rating (Amps)	4.5 A
Fastening Type	Push-Pull
Features	Ground
Ingress Protection	IP50
Insert Material	Polyetheretherketone (PEEK)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Right Angle, Panel Mount
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Orientation	G
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass and Polyphenylene Sulfide (PPS)
Shell Size - Insert	303
Shielding	Shielded
Termination	Solder

EXG.0B Series

Part	Shell Material	Fastening Type	Shielding	Contact Material	Features	Contact Finish - Mating	Primary Material	Number of Positions	Mounting Type	Connector Type	Termination	Shell Finish	Orientation	Mounting Feature	Insert Material	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Color	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Ingress Protection	Shell Size - Insert
LEMO EXG.0B.307.HLN	Brass and Polyphenylene Sulfide (PPS)	Push-Pull	Shielded	Bronze	Ground	Gold	Metal	7	Panel Mount Right Angle Through Hole	Receptacle Female Sockets	Solder	Nickel	G	Bulkhead - Front Side Nut	Polyetheretherketone (PEEK)	2 A	-55 °C	250 °C	Brown Silver	59 Áin	1.5 Ám	UL94 V-0	IP50	307
LEMO EXG.0B.303.HLN	Brass and Polyphenylene Sulfide (PPS)	Push-Pull	Shielded	Bronze	Ground	Gold	Metal		Panel Mount Right Angle Through Hole	Receptacle Female Sockets	Solder	Nickel	G	Bulkhead - Front Side Nut	Polyetheretherketone (PEEK)	4.5 A	-55 °C	250 °C	Brown Silver	59 Áin	1.5 Ám	UL94 V-0	IP50	303
LEMO EXG.0B.305.HLN	Brass and Polyphenylene Sulfide (PPS)	Push-Pull	Shielded	Bronze	Ground	Gold	Metal		Panel Mount Right Angle Through Hole	Receptacle Female Sockets	Solder	Nickel	G	Bulkhead - Front Side Nut	Polyetheretherketone (PEEK)	4.5 A	-55 °C	250 °C	Brown Silver	59 Áin	1.5 Ám	UL94 V-0	IP50	305
LEMO EXG.0B.307.HLNS	Brass and Polyphenylene Sulfide (PPS)	Push-Pull	Shielded	Bronze		Gold	Metal	7	Panel Mount Right Angle Through Hole	Receptacle Female Sockets	Solder	Nickel	G	Bulkhead - Front Side Nut	Polyetheretherketone (PEEK)	2 A	-55 °C	250 °C	Brown Silver	59 Áin	1.5 Ám	UL94 V-0	IP50	307
LEMO EXG.0B.309.HLNS	Brass and Polyphenylene Sulfide (PPS)	Push-Pull	Shielded	Bronze		Gold	Metal	9	Panel Mount Right Angle Through Hole	Receptacle Female Sockets	Solder	Nickel	G	Bulkhead - Front Side Nut	Polyetheretherketone (PEEK)	1.5 A	-55 °C	250 °C	Brown Silver	59 Áin	1.5 Ám	UL94 V-0	IP50	309
LEMO EXG.0B.309.HLN	Brass and Polyphenylene Sulfide (PPS)	Push-Pull	Shielded	Bronze	Ground	Gold	Metal	9	Panel Mount Right Angle Through Hole	Receptacle Female Sockets	Solder	Nickel	G	Bulkhead - Front Side Nut	Polyetheretherketone (PEEK)	1.5 A	-55 °C	250 °C	Brown Silver	59 Áin	1.5 Ám	UL94 V-0	IP50	309
LEMO EXG.0B.303.HLNZ	Brass and Polyphenylene Sulfide (PPS)	Push-Pull	Shielded	Bronze	Ground	Gold	Metal		Panel Mount Right Angle Through Hole	Receptacle Female Sockets	Solder	Nickel	G	Bulkhead - Front Side Nut	Polyetheretherketone (PEEK)	4.5 A	-55 °C	250 °C	Brown Silver	59 Áin	1.5 Ám	UL94 V-0	IP50	303
LEMO EXG.0B.305.HLNZ	Brass and Polyphenylene Sulfide (PPS)	Push-Pull	Shielded	Bronze	Ground	Gold	Metal		Panel Mount Right Angle Through Hole	Receptacle Female Sockets	Solder	Nickel	G	Bulkhead - Front Side Nut	Polyetheretherketone (PEEK)	4.5 A	-55 °C	250 °C	Brown Silver	59 Áin	1.5 Ám	UL94 V-0	IP50	305
LEMO EXG.0B.302.HLN	Brass and Polyphenylene Sulfide (PPS)	Push-Pull	Shielded	Bronze	Ground	Gold	Metal	2	Panel Mount Right Angle Through Hole	Receptacle Female Sockets	Solder	Nickel	G	Bulkhead - Front Side Nut	Polyetheretherketone (PEEK)	4.5 A	-55 °C	250 °C	Brown Silver	59 Áin	1.5 Ám	UL94 V-0	IP50	302

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 52.61
		10	$ 44.72
		25	$ 41.92
		50	$ 39.92
		100	$ 38.02
		250	$ 36.06

Description

General part information

EXG.0B Series

3 Position Circular Connector Receptacle, Female Sockets Solder
