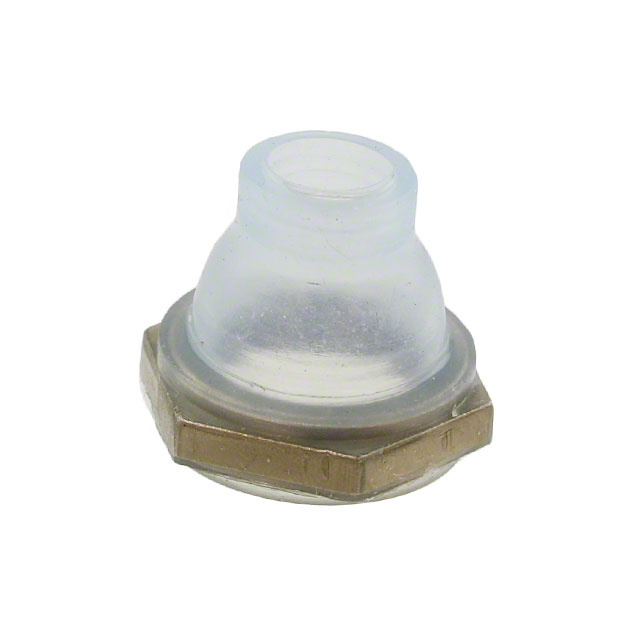

N3030B 4

Active

APM HEXSEAL

PUSHBUTTON HALF BOOT CLEAR

Search across all available documentation for this part.

Active

APM HEXSEAL

PUSHBUTTON HALF BOOT CLEAR

Technical Specifications

Parameters and characteristics for this part

Specification	N3030B 4

Actuator Diameter	6.35 mm
Actuator Diameter [diameter]	0.25 in
Color	Clear
For Use With/Related Products	Multiple Series
Ingress Protection	IP66/IP68
Material	Silicone Rubber
Mounting Feature	Front of Panel
Operating Temperature [Max]	204 °C
Operating Temperature [Min]	-70 °C
Size / Dimension [z]	0.547 in
Size / Dimension [z]	13.89 mm
Thread Size	15/32-32 NS-2B
Type	Pushbutton, Half Boot

Part	Operating Temperature [Max]	Operating Temperature [Min]	Material	For Use With/Related Products	Thread Size	Size / Dimension [z]	Size / Dimension [z]	Type	Mounting Feature	Ingress Protection	Color	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Actuator Diameter	Features
APM HEXSEAL N3030 44	204 °C	-70 °C	Silicone Rubber	Multiple Series	15/32-32 NS-2B	0.547 in	13.89 mm	Pushbutton Full Boot	Front of Panel	IP66/IP68	Red	0.422 in	10.72 mm
APM HEXSEAL N3030B 4	204 °C	-70 °C	Silicone Rubber	Multiple Series	15/32-32 NS-2B	0.547 in	13.89 mm	Pushbutton Half Boot	Front of Panel	IP66/IP68	Clear	0.25 in		6.35 mm
APM HEXSEAL N3030 45	204 °C	-70 °C	Silicone Rubber	Multiple Series	15/32-32 NS-2B	0.547 in	13.89 mm	Pushbutton Full Boot	Front of Panel	IP66/IP68	Green	0.422 in	10.72 mm
APM HEXSEAL N3030 RFI 2	204 °C	-70 °C	Silicone Rubber	Multiple Series	15/32-32 NS-2B	0.547 in	13.89 mm	Pushbutton Full Boot	Front of Panel	IP66/IP68	Gray	0.422 in	10.72 mm		Shielded
APM HEXSEAL N3030 65	204 °C	-70 °C	Silicone Rubber	Multiple Series	15/32-32 NS-2B	0.547 in	13.89 mm	Pushbutton Full Boot	Front of Panel	IP66/IP68	Yellow	0.422 in	10.72 mm
APM HEXSEAL N3030 2	204 °C	-70 °C	Silicone Rubber	Multiple Series	15/32-32 NS-2B	0.547 in	13.89 mm	Pushbutton Full Boot	Front of Panel	IP66/IP68	Gray	0.422 in	10.72 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

PUSHBUTTON HALF BOOT CLEAR

Technical documentation and resources
