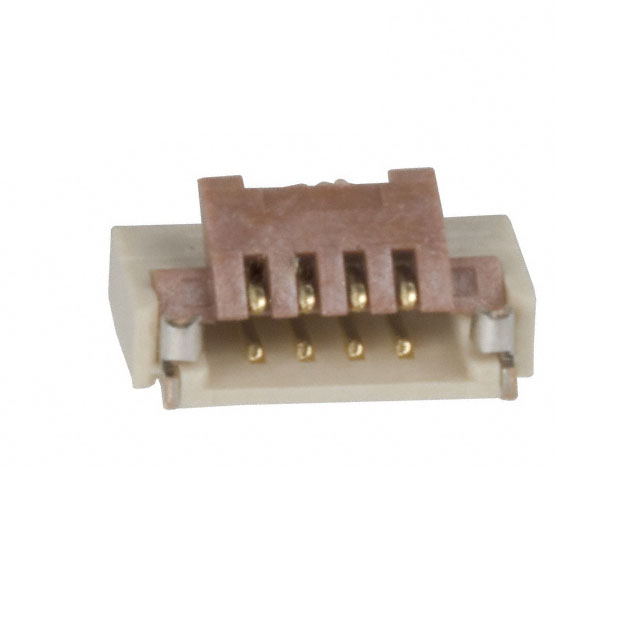

FH19C-4S-0.5SH(10)

Active

Hirose Electric USA, Inc.

CONN FFC BOTTOM 4POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFH19C/SC Series Datasheet Datasheet +1

FH19C-4S-0.5SH(10)

Active

Hirose Electric USA, Inc.

CONN FFC BOTTOM 4POS 0.5MM R/A

Deep-Dive with AI

DocumentsFH19C/SC Series Datasheet Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FH19C-4S-0.5SH(10)

Actuator Color	Brown
Actuator Material	Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Cable End Type	Tapered
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.2 mm
Flat Flex Type	FPC, FFC
Height Above Board	0.88 mm
Height Above Board	0.035 "
Housing Color	Beige
Housing Material	Liquid Crystal Polymer (LCP)
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

FH19 Series

Part	Pitch [x]	Pitch [x]	Voltage Rating	Mating Cycles	Number of Positions	Actuator Material	Connector/Contact Type	Material Flammability Rating	Contact Finish	FFC, FCB Thickness	Housing Color	Housing Material	Cable End Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Locking Feature	Termination	Features	Height Above Board	Height Above Board	Flat Flex Type	Current Rating (Amps)	Actuator Color
Hirose Electric USA, Inc. FH19C-6S-0.5SH(99)	0.5 mm	0.02 in	50 V	20	6	Liquid Crystal Polymer (LCP) Polyphenylene Sulfide (PPS)	Contacts Bottom	UL94 V-0	Gold	0.2 mm	Beige	Liquid Crystal Polymer (LCP)	Tapered	Phosphor Bronze	85 °C	-55 °C	Surface Mount Right Angle	Flip Lock	Solder	Solder Retention Zero Insertion Force (ZIF)	0.88 mm	0.035 "	FFC FPC	0.5 A	Brown
Hirose Electric USA, Inc. FH19C-7S-0.5SH(99)	0.5 mm	0.02 in	50 V	20	7	Liquid Crystal Polymer (LCP) Polyphenylene Sulfide (PPS)	Contacts Bottom	UL94 V-0	Gold	0.2 mm	Beige	Liquid Crystal Polymer (LCP)	Tapered	Phosphor Bronze	85 °C	-55 °C	Surface Mount Right Angle	Flip Lock	Solder	Solder Retention Zero Insertion Force (ZIF)	0.88 mm	0.035 "	FFC FPC	0.5 A	Brown
Hirose Electric USA, Inc. FH19SC-26S-0.5SH(09)	0.5 mm	0.02 in	50 V	20	26	Liquid Crystal Polymer (LCP) Polyphenylene Sulfide (PPS)	Contacts Bottom	UL94 V-0	Gold	0.3 mm	Beige	Liquid Crystal Polymer (LCP) Halogen Free	Tapered	Phosphor Bronze	85 °C	-55 °C	Surface Mount Right Angle	Flip Lock	Solder	Solder Retention Zero Insertion Force (ZIF)	0.95 mm	0.037 in	FFC FPC	0.5 A	Black
Hirose Electric USA, Inc. FH19SC-20S-0.5SH(99)	0.5 mm	0.02 in	50 V	20	20	Liquid Crystal Polymer (LCP) Polyphenylene Sulfide (PPS)	Contacts Bottom	UL94 V-0	Gold	0.3 mm	Beige	Liquid Crystal Polymer (LCP) Halogen Free	Tapered	Phosphor Bronze	85 °C	-55 °C	Surface Mount Right Angle	Flip Lock	Solder	Solder Retention Zero Insertion Force (ZIF)	0.95 mm	0.037 in	FFC FPC	0.5 A	Black
Hirose Electric USA, Inc. FH19C-4S-0.5SH(10)	0.5 mm	0.02 in	50 V	20	4	Liquid Crystal Polymer (LCP) Polyphenylene Sulfide (PPS)	Contacts Bottom	UL94 V-0	Gold	0.2 mm	Beige	Liquid Crystal Polymer (LCP)	Tapered	Phosphor Bronze	85 °C	-55 °C	Surface Mount Right Angle	Flip Lock	Solder	Solder Retention Zero Insertion Force (ZIF)	0.88 mm	0.035 "	FFC FPC	0.5 A	Brown
Hirose Electric USA, Inc. FH19SC-32S-0.5SH(99)	0.5 mm	0.02 in	50 V	20		Liquid Crystal Polymer (LCP) Polyphenylene Sulfide (PPS)	Contacts Bottom	UL94 V-0	Gold	0.3 mm	Beige	Liquid Crystal Polymer (LCP) Halogen Free	Tapered	Phosphor Bronze	85 °C	-55 °C	Surface Mount Right Angle	Flip Lock	Solder	Solder Retention Zero Insertion Force (ZIF)	0.95 mm	0.037 in	FFC FPC	0.5 A	Black
Hirose Electric USA, Inc. FH19C-12S-0.5SH(10)	0.5 mm	0.02 in	50 V	20	12	Liquid Crystal Polymer (LCP) Polyphenylene Sulfide (PPS)	Contacts Bottom	UL94 V-0	Gold	0.2 mm	Beige	Liquid Crystal Polymer (LCP) Halogen Free	Tapered	Phosphor Bronze	85 °C	-55 °C	Surface Mount Right Angle	Flip Lock	Solder	Solder Retention Zero Insertion Force (ZIF)	0.88 mm	0.035 "	FFC FPC	0.5 A	Brown
Hirose Electric USA, Inc. FH19SC-15S-0.5SH(09)	0.5 mm	0.02 in	50 V	20	15	Liquid Crystal Polymer (LCP) Polyphenylene Sulfide (PPS)	Contacts Bottom	UL94 V-0	Gold	0.3 mm	Beige	Liquid Crystal Polymer (LCP) Halogen Free	Tapered	Phosphor Bronze	85 °C	-55 °C	Surface Mount Right Angle	Flip Lock	Solder	Solder Retention Zero Insertion Force (ZIF)	0.95 mm	0.037 in	FFC FPC	0.5 A	Black
Hirose Electric USA, Inc. FH19C-15S-0.5SH(99)	0.5 mm	0.02 in	50 V	20	15	Liquid Crystal Polymer (LCP) Polyphenylene Sulfide (PPS)	Contacts Bottom	UL94 V-0	Gold	0.2 mm	Beige	Liquid Crystal Polymer (LCP) Halogen Free	Tapered	Phosphor Bronze	85 °C	-55 °C	Surface Mount Right Angle	Flip Lock	Solder	Solder Retention Zero Insertion Force (ZIF)	0.88 mm	0.035 "	FFC FPC	0.5 A	Brown
Hirose Electric USA, Inc. FH19C-20S-0.5SH(99)	0.5 mm	0.02 in	50 V	20	20	Liquid Crystal Polymer (LCP) Polyphenylene Sulfide (PPS)	Contacts Bottom	UL94 V-0	Gold	0.2 mm	Beige	Liquid Crystal Polymer (LCP) Halogen Free	Tapered	Phosphor Bronze	85 °C	-55 °C	Surface Mount Right Angle	Flip Lock	Solder	Solder Retention Zero Insertion Force (ZIF)	0.88 mm	0.035 "	FFC FPC	0.5 A	Brown
