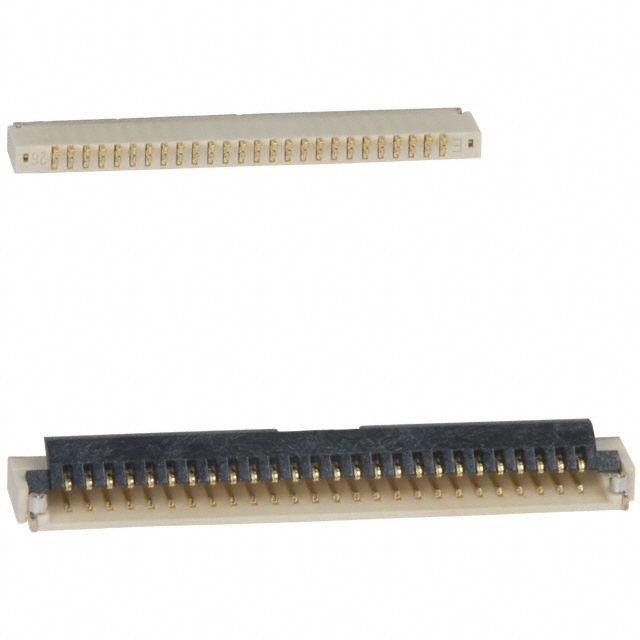

FH19SC-26S-0.5SH(09)

Active

Hirose Electric USA, Inc.

CONN FFC BOTTOM 26POS 0.5MM R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsFH19SC-xxS-0.5SH(09) Spec Datasheet +1

FH19SC-26S-0.5SH(09)

Active

Hirose Electric USA, Inc.

CONN FFC BOTTOM 26POS 0.5MM R/A

Deep-Dive with AI

DocumentsFH19SC-xxS-0.5SH(09) Spec Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FH19SC-26S-0.5SH(09)

Actuator Color	Black
Actuator Material	Liquid Crystal Polymer (LCP), Polyphenylene Sulfide (PPS)
Cable End Type	Tapered
Connector/Contact Type	Contacts, Bottom
Contact Finish	Gold
Contact Material	Phosphor Bronze
Current Rating (Amps)	0.5 A
Features	Zero Insertion Force (ZIF), Solder Retention
FFC, FCB Thickness	0.3 mm
Flat Flex Type	FPC, FFC
Height Above Board	0.037 in
Height Above Board	0.95 mm
Housing Color	Beige
Housing Material	Liquid Crystal Polymer (LCP), Halogen Free
Locking Feature	Flip Lock
Material Flammability Rating	UL94 V-0
Mating Cycles	20
Mounting Type	Surface Mount, Right Angle
Number of Positions	26
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	0.5 mm
Pitch [x]	0.02 in
Termination	Solder
Voltage Rating	50 V

FH19 Series

Part	Pitch [x]	Pitch [x]	Voltage Rating	Mating Cycles	Number of Positions	Actuator Material	Connector/Contact Type	Material Flammability Rating	Contact Finish	FFC, FCB Thickness	Housing Color	Housing Material	Cable End Type	Contact Material	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Locking Feature	Termination	Features	Height Above Board	Height Above Board	Flat Flex Type	Current Rating (Amps)	Actuator Color
Hirose Electric USA, Inc. FH19C-6S-0.5SH(99)	0.5 mm	0.02 in	50 V	20	6	Liquid Crystal Polymer (LCP) Polyphenylene Sulfide (PPS)	Contacts Bottom	UL94 V-0	Gold	0.2 mm	Beige	Liquid Crystal Polymer (LCP)	Tapered	Phosphor Bronze	85 °C	-55 °C	Surface Mount Right Angle	Flip Lock	Solder	Solder Retention Zero Insertion Force (ZIF)	0.88 mm	0.035 "	FFC FPC	0.5 A	Brown
Hirose Electric USA, Inc. FH19C-7S-0.5SH(99)	0.5 mm	0.02 in	50 V	20	7	Liquid Crystal Polymer (LCP) Polyphenylene Sulfide (PPS)	Contacts Bottom	UL94 V-0	Gold	0.2 mm	Beige	Liquid Crystal Polymer (LCP)	Tapered	Phosphor Bronze	85 °C	-55 °C	Surface Mount Right Angle	Flip Lock	Solder	Solder Retention Zero Insertion Force (ZIF)	0.88 mm	0.035 "	FFC FPC	0.5 A	Brown
Hirose Electric USA, Inc. FH19SC-26S-0.5SH(09)	0.5 mm	0.02 in	50 V	20	26	Liquid Crystal Polymer (LCP) Polyphenylene Sulfide (PPS)	Contacts Bottom	UL94 V-0	Gold	0.3 mm	Beige	Liquid Crystal Polymer (LCP) Halogen Free	Tapered	Phosphor Bronze	85 °C	-55 °C	Surface Mount Right Angle	Flip Lock	Solder	Solder Retention Zero Insertion Force (ZIF)	0.95 mm	0.037 in	FFC FPC	0.5 A	Black
Hirose Electric USA, Inc. FH19SC-20S-0.5SH(99)	0.5 mm	0.02 in	50 V	20	20	Liquid Crystal Polymer (LCP) Polyphenylene Sulfide (PPS)	Contacts Bottom	UL94 V-0	Gold	0.3 mm	Beige	Liquid Crystal Polymer (LCP) Halogen Free	Tapered	Phosphor Bronze	85 °C	-55 °C	Surface Mount Right Angle	Flip Lock	Solder	Solder Retention Zero Insertion Force (ZIF)	0.95 mm	0.037 in	FFC FPC	0.5 A	Black
Hirose Electric USA, Inc. FH19C-4S-0.5SH(10)	0.5 mm	0.02 in	50 V	20	4	Liquid Crystal Polymer (LCP) Polyphenylene Sulfide (PPS)	Contacts Bottom	UL94 V-0	Gold	0.2 mm	Beige	Liquid Crystal Polymer (LCP)	Tapered	Phosphor Bronze	85 °C	-55 °C	Surface Mount Right Angle	Flip Lock	Solder	Solder Retention Zero Insertion Force (ZIF)	0.88 mm	0.035 "	FFC FPC	0.5 A	Brown
Hirose Electric USA, Inc. FH19SC-32S-0.5SH(99)	0.5 mm	0.02 in	50 V	20		Liquid Crystal Polymer (LCP) Polyphenylene Sulfide (PPS)	Contacts Bottom	UL94 V-0	Gold	0.3 mm	Beige	Liquid Crystal Polymer (LCP) Halogen Free	Tapered	Phosphor Bronze	85 °C	-55 °C	Surface Mount Right Angle	Flip Lock	Solder	Solder Retention Zero Insertion Force (ZIF)	0.95 mm	0.037 in	FFC FPC	0.5 A	Black
Hirose Electric USA, Inc. FH19C-12S-0.5SH(10)	0.5 mm	0.02 in	50 V	20	12	Liquid Crystal Polymer (LCP) Polyphenylene Sulfide (PPS)	Contacts Bottom	UL94 V-0	Gold	0.2 mm	Beige	Liquid Crystal Polymer (LCP) Halogen Free	Tapered	Phosphor Bronze	85 °C	-55 °C	Surface Mount Right Angle	Flip Lock	Solder	Solder Retention Zero Insertion Force (ZIF)	0.88 mm	0.035 "	FFC FPC	0.5 A	Brown
Hirose Electric USA, Inc. FH19SC-15S-0.5SH(09)	0.5 mm	0.02 in	50 V	20	15	Liquid Crystal Polymer (LCP) Polyphenylene Sulfide (PPS)	Contacts Bottom	UL94 V-0	Gold	0.3 mm	Beige	Liquid Crystal Polymer (LCP) Halogen Free	Tapered	Phosphor Bronze	85 °C	-55 °C	Surface Mount Right Angle	Flip Lock	Solder	Solder Retention Zero Insertion Force (ZIF)	0.95 mm	0.037 in	FFC FPC	0.5 A	Black
Hirose Electric USA, Inc. FH19C-15S-0.5SH(99)	0.5 mm	0.02 in	50 V	20	15	Liquid Crystal Polymer (LCP) Polyphenylene Sulfide (PPS)	Contacts Bottom	UL94 V-0	Gold	0.2 mm	Beige	Liquid Crystal Polymer (LCP) Halogen Free	Tapered	Phosphor Bronze	85 °C	-55 °C	Surface Mount Right Angle	Flip Lock	Solder	Solder Retention Zero Insertion Force (ZIF)	0.88 mm	0.035 "	FFC FPC	0.5 A	Brown
Hirose Electric USA, Inc. FH19C-20S-0.5SH(99)	0.5 mm	0.02 in	50 V	20	20	Liquid Crystal Polymer (LCP) Polyphenylene Sulfide (PPS)	Contacts Bottom	UL94 V-0	Gold	0.2 mm	Beige	Liquid Crystal Polymer (LCP) Halogen Free	Tapered	Phosphor Bronze	85 °C	-55 °C	Surface Mount Right Angle	Flip Lock	Solder	Solder Retention Zero Insertion Force (ZIF)	0.88 mm	0.035 "	FFC FPC	0.5 A	Brown

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.69
		10	$ 1.47
		25	$ 1.41
		50	$ 1.38
		100	$ 1.31
		250	$ 1.19
		500	$ 1.10
		1000	$ 0.94
		2500	$ 0.88
	Digi-Reel®	1	$ 1.69
		10	$ 1.47
		25	$ 1.41
		50	$ 1.38
		100	$ 1.31
		250	$ 1.19
		500	$ 1.10
		1000	$ 0.94
		2500	$ 0.88
	Tape & Reel (TR)	5000	$ 0.82
		10000	$ 0.78

Description

General part information

FH19 Series

26 Position FFC, FPC Connector Contacts, Bottom 0.020" (0.50mm) Surface Mount, Right Angle

Documents

Technical documentation and resources

FH19SC-xxS-0.5SH(09) Spec

Datasheet

FH19C/SC Series Datasheet

Datasheet
