6380-3PG-315

Active

Conxall/Switchcraft

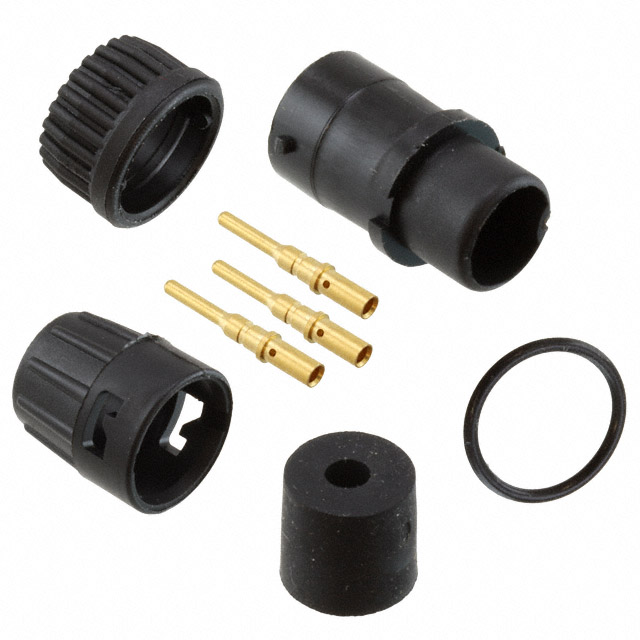

CONN PLUG MALE 3POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6380-3PG-315

Active

Conxall/Switchcraft

CONN PLUG MALE 3POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6380-3PG-315

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [custom]	0.17 in, 0.15 in
Cable Opening [custom]	3.81 mm, 4.32 mm
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

6380-3PG Series

Part	Orientation	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Applications	Current Rating (Amps)	Connector Type	Features	Termination	Ingress Protection	Mounting Type	Fastening Type	Color	Contact Material	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Backshell Material, Plating	Voltage Rating	Shielding	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 6380-3PG-311	Keyed	Plastic	-40 °C	115 °C	Gold	Automotive Communication Systems Instrumentation	Varies by Wire Gauge	Male Pins Plug	Backshell	Crimp	Weathertight	Free Hanging (In-Line)	Bayonet Lock	Black	Brass	2.29 mm	0.09 in 0.14 in	3.56 mm	Nylon Polyamide (PA)	600 V	Unshielded
Conxall/Switchcraft 6380-3PG-513	Keyed	Plastic	-40 °C	115 °C	Gold	Automotive Communication Systems Instrumentation	Varies by Wire Gauge	Male Pins Plug	Backshell	Crimp	Weathertight	Free Hanging (In-Line)	Bayonet Lock	Black	Brass				Nylon Polyamide (PA)	600 V	Unshielded	0.13 in 0.15 in	3.3 mm 3.81 mm
Conxall/Switchcraft 6380-3PG-315	Keyed	Plastic	-40 °C	115 °C	Gold	Automotive Communication Systems Instrumentation	Varies by Wire Gauge	Male Pins Plug	Backshell	Crimp	Weathertight	Free Hanging (In-Line)	Bayonet Lock	Black	Brass				Nylon Polyamide (PA)	600 V	Unshielded	0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 6380-3PG-522	Keyed	Plastic	-40 °C	115 °C	Gold	Automotive Communication Systems Instrumentation	Varies by Wire Gauge	Male Pins Plug	Backshell	Crimp	Weathertight	Free Hanging (In-Line)	Bayonet Lock	Black	Brass				Nylon Polyamide (PA)	600 V	Unshielded			6.35 mm	0.25 in	0.22 in	5.59 mm
Conxall/Switchcraft 6380-3PG-519	Keyed	Plastic	-40 °C	115 °C	Gold	Automotive Communication Systems Instrumentation	Varies by Wire Gauge	Male Pins Plug	Backshell	Crimp	Weathertight	Free Hanging (In-Line)	Bayonet Lock	Black	Brass				Nylon Polyamide (PA)	600 V	Unshielded			5.33 mm	0.21 in	0.19 in	4.83 mm
Conxall/Switchcraft 6380-3PG-321	Keyed	Plastic	-40 °C	115 °C	Gold	Automotive Communication Systems Instrumentation	Varies by Wire Gauge	Male Pins Plug	Backshell	Crimp	Weathertight	Free Hanging (In-Line)	Bayonet Lock	Black	Brass				Nylon Polyamide (PA)	600 V	Unshielded				0.23 in	0.21 in	5.33 mm	5.84 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 9.50
		10	$ 8.55
		25	$ 8.06
		50	$ 7.85
		100	$ 7.64
		300	$ 6.82
		500	$ 6.40
		1000	$ 5.66

Description

General part information

6380-3PG Series

3 Position Circular Connector Plug, Male Pins Crimp

Documents

Technical documentation and resources
