6380-3PG-311

Active

Conxall/Switchcraft

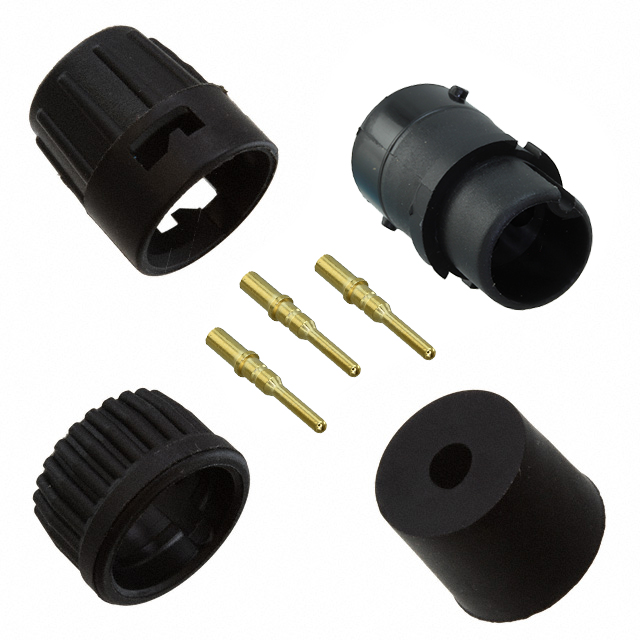

CONN PLUG MALE 3POS GOLD CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

6380-3PG-311

Active

Conxall/Switchcraft

CONN PLUG MALE 3POS GOLD CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	6380-3PG-311

Applications	Automotive, Communication Systems, Instrumentation
Backshell Material, Plating	Polyamide (PA), Nylon
Cable Opening [diameter]	2.29 mm
Cable Opening [diameter]	0.14 in, 0.09 in
Cable Opening [diameter]	3.56 mm
Color	Black
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Material	Brass
Current Rating (Amps)	Varies by Wire Gauge
Fastening Type	Bayonet Lock
Features	Backshell
Ingress Protection	Weathertight
Mounting Type	Free Hanging (In-Line)
Operating Temperature [Max]	115 °C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shielding	Unshielded
Termination	Crimp
Voltage Rating	600 V

6380-3PG Series

Part	Orientation	Primary Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Applications	Current Rating (Amps)	Connector Type	Features	Termination	Ingress Protection	Mounting Type	Fastening Type	Color	Contact Material	Cable Opening [diameter]	Cable Opening [diameter]	Cable Opening [diameter]	Backshell Material, Plating	Voltage Rating	Shielding	Cable Opening [custom]	Cable Opening [custom]	Cable Opening [Max] [diameter]	Cable Opening [Max] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Min] [diameter]	Cable Opening [Max] [diameter]
Conxall/Switchcraft 6380-3PG-311	Keyed	Plastic	-40 °C	115 °C	Gold	Automotive Communication Systems Instrumentation	Varies by Wire Gauge	Male Pins Plug	Backshell	Crimp	Weathertight	Free Hanging (In-Line)	Bayonet Lock	Black	Brass	2.29 mm	0.09 in 0.14 in	3.56 mm	Nylon Polyamide (PA)	600 V	Unshielded
Conxall/Switchcraft 6380-3PG-513	Keyed	Plastic	-40 °C	115 °C	Gold	Automotive Communication Systems Instrumentation	Varies by Wire Gauge	Male Pins Plug	Backshell	Crimp	Weathertight	Free Hanging (In-Line)	Bayonet Lock	Black	Brass				Nylon Polyamide (PA)	600 V	Unshielded	0.13 in 0.15 in	3.3 mm 3.81 mm
Conxall/Switchcraft 6380-3PG-315	Keyed	Plastic	-40 °C	115 °C	Gold	Automotive Communication Systems Instrumentation	Varies by Wire Gauge	Male Pins Plug	Backshell	Crimp	Weathertight	Free Hanging (In-Line)	Bayonet Lock	Black	Brass				Nylon Polyamide (PA)	600 V	Unshielded	0.15 in 0.17 in	3.81 mm 4.32 mm
Conxall/Switchcraft 6380-3PG-522	Keyed	Plastic	-40 °C	115 °C	Gold	Automotive Communication Systems Instrumentation	Varies by Wire Gauge	Male Pins Plug	Backshell	Crimp	Weathertight	Free Hanging (In-Line)	Bayonet Lock	Black	Brass				Nylon Polyamide (PA)	600 V	Unshielded			6.35 mm	0.25 in	0.22 in	5.59 mm
Conxall/Switchcraft 6380-3PG-519	Keyed	Plastic	-40 °C	115 °C	Gold	Automotive Communication Systems Instrumentation	Varies by Wire Gauge	Male Pins Plug	Backshell	Crimp	Weathertight	Free Hanging (In-Line)	Bayonet Lock	Black	Brass				Nylon Polyamide (PA)	600 V	Unshielded			5.33 mm	0.21 in	0.19 in	4.83 mm
Conxall/Switchcraft 6380-3PG-321	Keyed	Plastic	-40 °C	115 °C	Gold	Automotive Communication Systems Instrumentation	Varies by Wire Gauge	Male Pins Plug	Backshell	Crimp	Weathertight	Free Hanging (In-Line)	Bayonet Lock	Black	Brass				Nylon Polyamide (PA)	600 V	Unshielded				0.23 in	0.21 in	5.33 mm	5.84 mm
