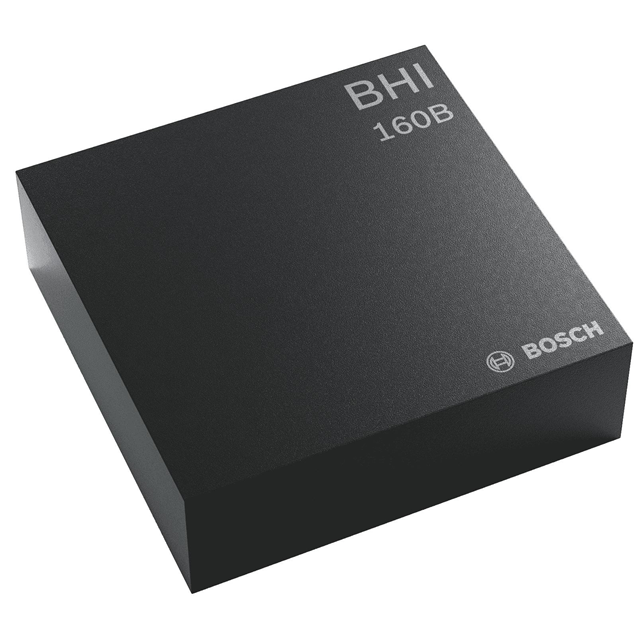

BHI160B

Bosch Sensortec

IMU ACCEL/GYRO 3-AXIS I2C 24LGA

Search across all available documentation for this part.

Bosch Sensortec

IMU ACCEL/GYRO 3-AXIS I2C 24LGA

Technical Specifications

Parameters and characteristics for this part

Specification	BHI160B

Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	I2C
Package / Case	24-VFLGA Module
Sensor Type	Accelerometer, Gyroscope, 6 Axis
Supplier Device Package	24-LGA (3x3)

Part	Contents	Function	Secondary Attributes	Utilized IC / Part	Primary Attributes	Type	Interconnect System	Output Type	Package / Case	Supplier Device Package	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Sensor Type
Bosch Sensortec SHUTTLE BOARD 3.0 BHI160B	Board(s)	Accelerometer Gyroscope Magnetometer	I2C Interface(s)	BHI160B BMM150	±1000 ±125 ±1300 ±16 ±2 ±2000 ±250 ±2500 ±4 ±500 ±8	Sensor	Shuttle Board 3.0 Socket
Bosch Sensortec BHI160B								I2C	24-VFLGA Module	24-LGA (3x3)	Surface Mount	85 °C	-40 °C	6 Axis Accelerometer Gyroscope

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Accelerometer, Gyroscope, 6 Axis Sensor I2C Output
