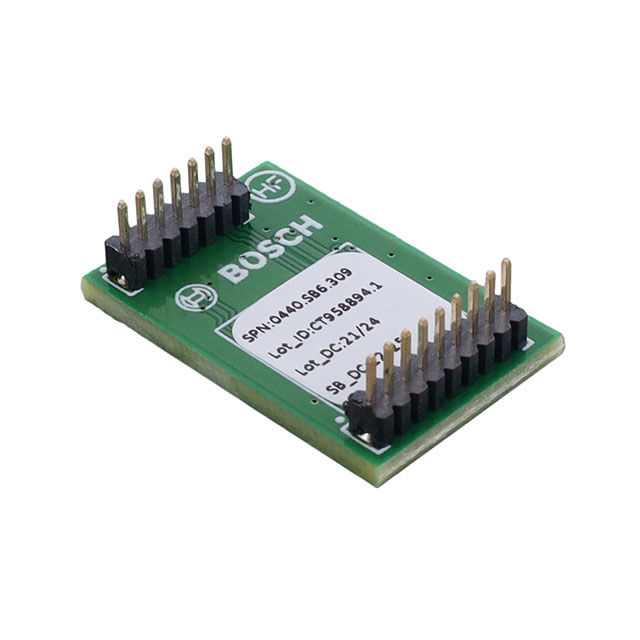

SHUTTLE BOARD 3.0 BHI160B

Obsolete

Bosch Sensortec

Search across all available documentation for this part.

Obsolete

Bosch Sensortec

SHUTTLE BOARD 3.0 BHI160B

Technical Specifications

Parameters and characteristics for this part

Specification	SHUTTLE BOARD 3.0 BHI160B

Contents	Board(s)
Function	Magnetometer, Gyroscope, Accelerometer
Interconnect System	Shuttle Board 3.0 Socket
Primary Attributes	±1000, ±16, ±125, ±2, ±2000, ±4, ±2500, ±500, ±250, ±8, ±1300
Secondary Attributes	I2C Interface(s)
Type	Sensor
Utilized IC / Part	BHI160B, BMM150

Part	Contents	Function	Secondary Attributes	Utilized IC / Part	Primary Attributes	Type	Interconnect System	Output Type	Package / Case	Supplier Device Package	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Sensor Type
Bosch Sensortec SHUTTLE BOARD 3.0 BHI160B	Board(s)	Accelerometer Gyroscope Magnetometer	I2C Interface(s)	BHI160B BMM150	±1000 ±125 ±1300 ±16 ±2 ±2000 ±250 ±2500 ±4 ±500 ±8	Sensor	Shuttle Board 3.0 Socket
Bosch Sensortec BHI160B								I2C	24-VFLGA Module	24-LGA (3x3)	Surface Mount	85 °C	-40 °C	6 Axis Accelerometer Gyroscope

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

BHI160B, BMM150 Accelerometer, Gyroscope, Magnetometer Sensor Platform Evaluation Expansion Board

Technical documentation and resources
