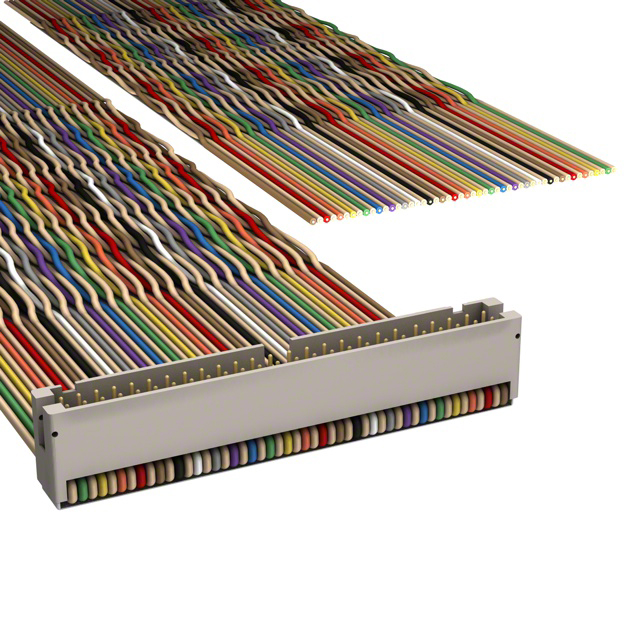

M1RXK-5040K

Active

3M (TC)

IDC CABLE - MPR50K/MC50F/X

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRibbon Cable Assembly Length Guide 1700 Series +1

M1RXK-5040K

Active

3M (TC)

IDC CABLE - MPR50K/MC50F/X

Deep-Dive with AI

DocumentsRibbon Cable Assembly Length Guide 1700 Series +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M1RXK-5040K

Cable Termination	IDC
Color	Multiple, Twisted Pair (Flat)
Connector Type	Plug to Cable
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key, Strain Relief
Length [x]	1.02 m
Length [x]	3.34 ft
Number of Positions	50
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M1RXK Series

Part	Cable Termination	Pitch - Cable	Pitch - Cable	Features	Pitch - Connector	Pitch - Connector	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Shielding	Length [x]	Length [x]	Number of Rows	Contact Finish	Number of Positions	Color
3M (TC) M1RXK-2636J	IDC	0.05 "	1.27 mm	Polarizing Key Strain Relief	0.1 in	2.54 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	3 ft	914.4 mm	2	Gold	26
3M (TC) M1RXK-2636R	IDC	0.05 "	1.27 mm	Polarizing Key Strain Relief	0.1 in	2.54 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	3 ft	914.4 mm	2	Gold	26	Multiple Ribbon
3M (TC) M1RXK-5040K	IDC	0.05 "	1.27 mm	Polarizing Key Strain Relief	0.1 in	2.54 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	3.34 ft	1.02 m	2	Gold	50	Multiple Twisted Pair (Flat)
3M (TC) M1RXK-4040K	IDC	0.05 "	1.27 mm	Polarizing Key Strain Relief	0.1 in	2.54 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	3.34 ft	1.02 m	2	Gold	40	Multiple Twisted Pair (Flat)
3M (TC) M1RXK-4036J	IDC	0.05 "	1.27 mm	Polarizing Key Strain Relief	0.1 in	2.54 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	3 ft	914.4 mm	2	Gold	40
3M (TC) M1RXK-6436J	IDC	0.05 "	1.27 mm	Polarizing Key Strain Relief	0.1 in	2.54 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	3 ft	914.4 mm	2	Gold	64
3M (TC) M1RXK-5036J	IDC	0.05 "	1.27 mm	Polarizing Key Strain Relief	0.1 in	2.54 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	3 ft	914.4 mm	2	Gold	50
3M (TC) M1RXK-6040K	IDC	0.05 "	1.27 mm	Polarizing Key Strain Relief	0.1 in	2.54 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	3.34 ft	1.02 m	2	Gold	60	Multiple Twisted Pair (Flat)
3M (TC) M1RXK-1436R	IDC	0.05 "	1.27 mm	Polarizing Key Strain Relief	0.1 in	2.54 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	3 ft	914.4 mm	2	Gold	14	Multiple Ribbon
3M (TC) M1RXK-2036J	IDC	0.05 "	1.27 mm	Polarizing Key Strain Relief	0.1 in	2.54 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	3 ft	914.4 mm	2	Gold	20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 42.10
		10	$ 32.56
		25	$ 29.54
		50	$ 27.49
		100	$ 25.64
		250	$ 23.46

Description

General part information

M1RXK Series

50 Position Cable Assembly Rectangular Plug to Cable 3.34' (1.02m)

Documents

Technical documentation and resources

Ribbon Cable Assembly Length Guide

Datasheet

1700 Series

Datasheet
