M1RXK-2636J

Active

3M (TC)

IDC CABLE - MPR26K/MC26G/X

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsRibbon Cable Assembly Length Guide 3365 Series Datasheet +1

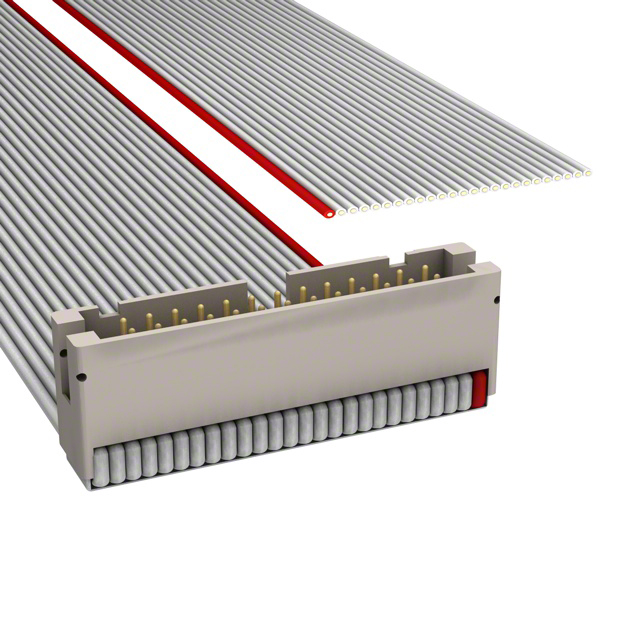

M1RXK-2636J

Active

3M (TC)

IDC CABLE - MPR26K/MC26G/X

Deep-Dive with AI

DocumentsRibbon Cable Assembly Length Guide 3365 Series Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M1RXK-2636J

Cable Termination	IDC
Connector Type	Plug to Cable
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Features	Polarizing Key, Strain Relief
Length [x]	3 ft
Length [x]	914.4 mm
Number of Positions	26
Number of Rows	2
Pitch - Cable	0.05 "
Pitch - Cable	1.27 mm
Pitch - Connector	0.1 in
Pitch - Connector	2.54 mm
Shielding	Unshielded

M1RXK Series

Part	Cable Termination	Pitch - Cable	Pitch - Cable	Features	Pitch - Connector	Pitch - Connector	Connector Type	Contact Finish Thickness	Contact Finish Thickness	Shielding	Length [x]	Length [x]	Number of Rows	Contact Finish	Number of Positions	Color
3M (TC) M1RXK-2636J	IDC	0.05 "	1.27 mm	Polarizing Key Strain Relief	0.1 in	2.54 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	3 ft	914.4 mm	2	Gold	26
3M (TC) M1RXK-2636R	IDC	0.05 "	1.27 mm	Polarizing Key Strain Relief	0.1 in	2.54 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	3 ft	914.4 mm	2	Gold	26	Multiple Ribbon
3M (TC) M1RXK-5040K	IDC	0.05 "	1.27 mm	Polarizing Key Strain Relief	0.1 in	2.54 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	3.34 ft	1.02 m	2	Gold	50	Multiple Twisted Pair (Flat)
3M (TC) M1RXK-4040K	IDC	0.05 "	1.27 mm	Polarizing Key Strain Relief	0.1 in	2.54 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	3.34 ft	1.02 m	2	Gold	40	Multiple Twisted Pair (Flat)
3M (TC) M1RXK-4036J	IDC	0.05 "	1.27 mm	Polarizing Key Strain Relief	0.1 in	2.54 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	3 ft	914.4 mm	2	Gold	40
3M (TC) M1RXK-6436J	IDC	0.05 "	1.27 mm	Polarizing Key Strain Relief	0.1 in	2.54 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	3 ft	914.4 mm	2	Gold	64
3M (TC) M1RXK-5036J	IDC	0.05 "	1.27 mm	Polarizing Key Strain Relief	0.1 in	2.54 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	3 ft	914.4 mm	2	Gold	50
3M (TC) M1RXK-6040K	IDC	0.05 "	1.27 mm	Polarizing Key Strain Relief	0.1 in	2.54 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	3.34 ft	1.02 m	2	Gold	60	Multiple Twisted Pair (Flat)
3M (TC) M1RXK-1436R	IDC	0.05 "	1.27 mm	Polarizing Key Strain Relief	0.1 in	2.54 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	3 ft	914.4 mm	2	Gold	14	Multiple Ribbon
3M (TC) M1RXK-2036J	IDC	0.05 "	1.27 mm	Polarizing Key Strain Relief	0.1 in	2.54 mm	Plug to Cable	0.76 Ám	30 Áin	Unshielded	3 ft	914.4 mm	2	Gold	20

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 20.94
		10	$ 16.13
		25	$ 14.60
		50	$ 13.56
		100	$ 12.62
		250	$ 11.52
		500	$ 10.77

Description

General part information

M1RXK Series

26 Position Cable Assembly Rectangular Plug to Cable 3.00' (914.40mm)
