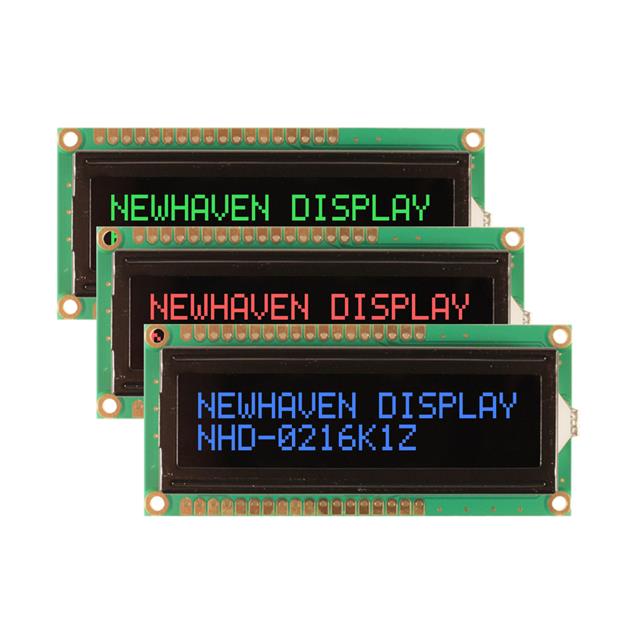

NHD-0216K1Z-NS(RGB)-FBW-REV1

Active

Newhaven Display Intl

LCD MOD 32DIG 16X2 TRANSMS R/G/B

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsLCD Solvent Precautions LCD Safe Handling Procedure +1

NHD-0216K1Z-NS(RGB)-FBW-REV1

Active

Newhaven Display Intl

LCD MOD 32DIG 16X2 TRANSMS R/G/B

Deep-Dive with AI

DocumentsLCD Solvent Precautions LCD Safe Handling Procedure +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-0216K1Z-NS(RGB)-FBW-REV1

Background Color	Black
Backlight	LED, Red, Green, Blue
Character Format [x]	5 Dots
Character Format [y]	8 Dots
Character Size [x]	3 mm
Character Size [y]	5.23 mm
Controller Type	SPLC780D, ST7066U
Display Format [x]	16
Display Format [y]	2
Display Mode	Transmissive
Display Type	FSTN - Film Super-Twisted Nematic
Dot Size [x]	0.56 mm
Dot Size [y]	0.61 mm
Interface	Parallel
Number of Characters	32
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline L x W x H [x]	80 mm
Outline L x W x H [y]	36 mm
Outline L x W x H [z]	13 mm
Text Color	Red, Green, Blue
Viewing Area [x]	64.5 mm
Viewing Area [y]	16.4 mm
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.7 V

NHD-0216 Series

Part	Dot Size [x]	Dot Size [y]	Interface	Display Format [y]	Display Format [x]	Character Format [y]	Character Format [x]	Display Mode	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Viewing Area [x]	Viewing Area [y]	Display Type	Controller Type	Number of Characters	Character Size [x]	Character Size [y]	Text Color	Background Color	Outline L x W x H [y]	Outline L x W x H [z]	Outline L x W x H [x]	Backlight	Character Size [z]
Newhaven Display Intl NHD-0216K1Z-FL-GBW	0.56 mm	0.61 mm	Parallel	2	16	8 Dots	5 Dots	Transflective	5.5 V	4.7 V	-20 C	70 °C	64.5 mm	16.4 mm	STN - Super-Twisted Nematic	SPLC780D ST7066U	32	3 mm	5.23 mm	Blue	Green	36 mm	13.5 mm	80 mm
Newhaven Display Intl NHD-0216BZ-FL-YBW	0.56 mm	0.61 mm	Parallel	2	16	8 Dots	5 Dots	Transflective	5.5 V	4.7 V	-20 C	70 °C	64.5 mm	16.4 mm	STN - Super-Twisted Nematic	SPLC780D ST7066U	32	3 mm	5.23 mm	Blue	Green	44 mm	13.5 mm	84 mm
Newhaven Display Intl NHD-0216K1Z-FSR-FBW-L	0.56 mm	0.61 mm	Parallel	2	16	8 Dots	5 Dots	Transflective	5.5 V	4.7 V	-20 C	70 °C	64.5 mm	16.4 mm	FSTN - Film Super-Twisted Nematic	SPLC780D ST7066U	32	3 mm	5.23 mm	Black	Red	36 mm	13.5 mm	80 mm	LED - Red
Newhaven Display Intl NHD-0216K1Z-FSA-FBW-L	0.56 mm	0.61 mm	Parallel	2	16	8 Dots	5 Dots	Transflective	5.5 V	4.7 V	-20 C	70 °C	64.5 mm	16.4 mm	FSTN - Film Super-Twisted Nematic	SPLC780D ST7066U	32	3 mm	5.23 mm	Black	Amber	36 mm	13.5 mm	80 mm	LED - Amber
Newhaven Display Intl NHD-0216K1Z-FSR-GBW-L	0.56 mm	0.61 mm	Parallel	2	16	8 Dots	5 Dots	Transflective	5.5 V	4.7 V	-20 C	70 °C	64.5 mm	16.4 mm	STN - Super-Twisted Nematic	SPLC780D ST7066U	32	3 mm	5.23 mm	Blue	Red	36 mm	13.5 mm	80 mm	LED - Red
Newhaven Display Intl NHD-0216K1Z-FSB-FBW-L	0.56 mm	0.61 mm	Parallel	2	16	8 Dots	5 Dots	Transflective	5.5 V	4.7 V	-20 C	70 °C	64.5 mm	16.4 mm	FSTN - Film Super-Twisted Nematic	SPLC780D ST7066U	32	3 mm	5.23 mm	Black	Blue	36 mm	13.5 mm	80 mm	LED - Blue
Newhaven Display Intl NHD-0216BZ-FL-GBW	0.56 mm	0.61 mm	Parallel	2	16	8 Dots	5 Dots	Transflective	5.5 V	4.7 V	-20 C	70 °C	64.5 mm	16.4 mm	STN - Super-Twisted Nematic		32	3 mm	5.23 mm	Gray	Green	44 mm	13.5 mm	84 mm
Newhaven Display Intl NHD-0216K1Z-NSA-FBW-L	0.56 mm	0.61 mm	Parallel	2	16	8 Dots	5 Dots	Transmissive	5.5 V	4.7 V	-20 C	70 °C	64.5 mm	16.4 mm	FSTN - Film Super-Twisted Nematic	SPLC780D ST7066U	32	3 mm	5.23 mm	Amber	Black	36 mm	13.5 mm	80 mm	LED - Amber
Newhaven Display Intl NHD-0216CW-AB3	0.57 mm	0.67 mm	8-Bit I2C Parallel SPI	2	16	8 Dots	5 Dots	Passive	5.5 V	2.4 V	-40 °C	85 °C	58.22 mm	13.52 mm	OLED	US2066	32		2.97 mm	Blue	Black	24.5 mm	2.5 mm	76 mm		5.57 mm
Newhaven Display Intl NHD-0216K1Z-NS(RGB)-FBW-REV1	0.56 mm	0.61 mm	Parallel	2	16	8 Dots	5 Dots	Transmissive	5.5 V	4.7 V	-20 C	70 °C	64.5 mm	16.4 mm	FSTN - Film Super-Twisted Nematic	SPLC780D ST7066U	32	3 mm	5.23 mm	Blue Green Red	Black	36 mm	13 mm	80 mm	Blue Green LED Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 16.52
		5	$ 15.53
		10	$ 14.54
		50	$ 13.71
		100	$ 13.05
		250	$ 12.39
		500	$ 11.89

Description

General part information

NHD-0216 Series

Character Display Module Transmissive 5 x 8 Dots FSTN - Film Super-Twisted Nematic LED - Red/Green/Blue Parallel 80.00mm x 36.00mm x 13.00mm
