NHD-0216K1Z-FSR-FBW-L

Active

Newhaven Display Intl

LCD MOD 32DIG 16X2 TRANSFLCT RED

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet LCD Safe Handling Procedure +1

NHD-0216K1Z-FSR-FBW-L

Active

Newhaven Display Intl

LCD MOD 32DIG 16X2 TRANSFLCT RED

Deep-Dive with AI

DocumentsDatasheet LCD Safe Handling Procedure +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-0216K1Z-FSR-FBW-L

Background Color	Red
Backlight	LED - Red
Character Format [x]	5 Dots
Character Format [y]	8 Dots
Character Size [x]	3 mm
Character Size [y]	5.23 mm
Controller Type	SPLC780D, ST7066U
Display Format [x]	16
Display Format [y]	2
Display Mode	Transflective
Display Type	FSTN - Film Super-Twisted Nematic
Dot Size [x]	0.56 mm
Dot Size [y]	0.61 mm
Interface	Parallel
Number of Characters	32
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline L x W x H [x]	80 mm
Outline L x W x H [y]	36 mm
Outline L x W x H [z]	13.5 mm
Text Color	Black
Viewing Area [x]	64.5 mm
Viewing Area [y]	16.4 mm
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	4.7 V

NHD-0216 Series

Part	Dot Size [x]	Dot Size [y]	Interface	Display Format [y]	Display Format [x]	Character Format [y]	Character Format [x]	Display Mode	Voltage - Supply [Max]	Voltage - Supply [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Viewing Area [x]	Viewing Area [y]	Display Type	Controller Type	Number of Characters	Character Size [x]	Character Size [y]	Text Color	Background Color	Outline L x W x H [y]	Outline L x W x H [z]	Outline L x W x H [x]	Backlight	Character Size [z]
Newhaven Display Intl NHD-0216K1Z-FL-GBW	0.56 mm	0.61 mm	Parallel	2	16	8 Dots	5 Dots	Transflective	5.5 V	4.7 V	-20 C	70 °C	64.5 mm	16.4 mm	STN - Super-Twisted Nematic	SPLC780D ST7066U	32	3 mm	5.23 mm	Blue	Green	36 mm	13.5 mm	80 mm
Newhaven Display Intl NHD-0216BZ-FL-YBW	0.56 mm	0.61 mm	Parallel	2	16	8 Dots	5 Dots	Transflective	5.5 V	4.7 V	-20 C	70 °C	64.5 mm	16.4 mm	STN - Super-Twisted Nematic	SPLC780D ST7066U	32	3 mm	5.23 mm	Blue	Green	44 mm	13.5 mm	84 mm
Newhaven Display Intl NHD-0216K1Z-FSR-FBW-L	0.56 mm	0.61 mm	Parallel	2	16	8 Dots	5 Dots	Transflective	5.5 V	4.7 V	-20 C	70 °C	64.5 mm	16.4 mm	FSTN - Film Super-Twisted Nematic	SPLC780D ST7066U	32	3 mm	5.23 mm	Black	Red	36 mm	13.5 mm	80 mm	LED - Red
Newhaven Display Intl NHD-0216K1Z-FSA-FBW-L	0.56 mm	0.61 mm	Parallel	2	16	8 Dots	5 Dots	Transflective	5.5 V	4.7 V	-20 C	70 °C	64.5 mm	16.4 mm	FSTN - Film Super-Twisted Nematic	SPLC780D ST7066U	32	3 mm	5.23 mm	Black	Amber	36 mm	13.5 mm	80 mm	LED - Amber
Newhaven Display Intl NHD-0216K1Z-FSR-GBW-L	0.56 mm	0.61 mm	Parallel	2	16	8 Dots	5 Dots	Transflective	5.5 V	4.7 V	-20 C	70 °C	64.5 mm	16.4 mm	STN - Super-Twisted Nematic	SPLC780D ST7066U	32	3 mm	5.23 mm	Blue	Red	36 mm	13.5 mm	80 mm	LED - Red
Newhaven Display Intl NHD-0216K1Z-FSB-FBW-L	0.56 mm	0.61 mm	Parallel	2	16	8 Dots	5 Dots	Transflective	5.5 V	4.7 V	-20 C	70 °C	64.5 mm	16.4 mm	FSTN - Film Super-Twisted Nematic	SPLC780D ST7066U	32	3 mm	5.23 mm	Black	Blue	36 mm	13.5 mm	80 mm	LED - Blue
Newhaven Display Intl NHD-0216BZ-FL-GBW	0.56 mm	0.61 mm	Parallel	2	16	8 Dots	5 Dots	Transflective	5.5 V	4.7 V	-20 C	70 °C	64.5 mm	16.4 mm	STN - Super-Twisted Nematic		32	3 mm	5.23 mm	Gray	Green	44 mm	13.5 mm	84 mm
Newhaven Display Intl NHD-0216K1Z-NSA-FBW-L	0.56 mm	0.61 mm	Parallel	2	16	8 Dots	5 Dots	Transmissive	5.5 V	4.7 V	-20 C	70 °C	64.5 mm	16.4 mm	FSTN - Film Super-Twisted Nematic	SPLC780D ST7066U	32	3 mm	5.23 mm	Amber	Black	36 mm	13.5 mm	80 mm	LED - Amber
Newhaven Display Intl NHD-0216CW-AB3	0.57 mm	0.67 mm	8-Bit I2C Parallel SPI	2	16	8 Dots	5 Dots	Passive	5.5 V	2.4 V	-40 °C	85 °C	58.22 mm	13.52 mm	OLED	US2066	32		2.97 mm	Blue	Black	24.5 mm	2.5 mm	76 mm		5.57 mm
Newhaven Display Intl NHD-0216K1Z-NS(RGB)-FBW-REV1	0.56 mm	0.61 mm	Parallel	2	16	8 Dots	5 Dots	Transmissive	5.5 V	4.7 V	-20 C	70 °C	64.5 mm	16.4 mm	FSTN - Film Super-Twisted Nematic	SPLC780D ST7066U	32	3 mm	5.23 mm	Blue Green Red	Black	36 mm	13 mm	80 mm	Blue Green LED Red

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	100	$ 9.94

Description

General part information

NHD-0216 Series

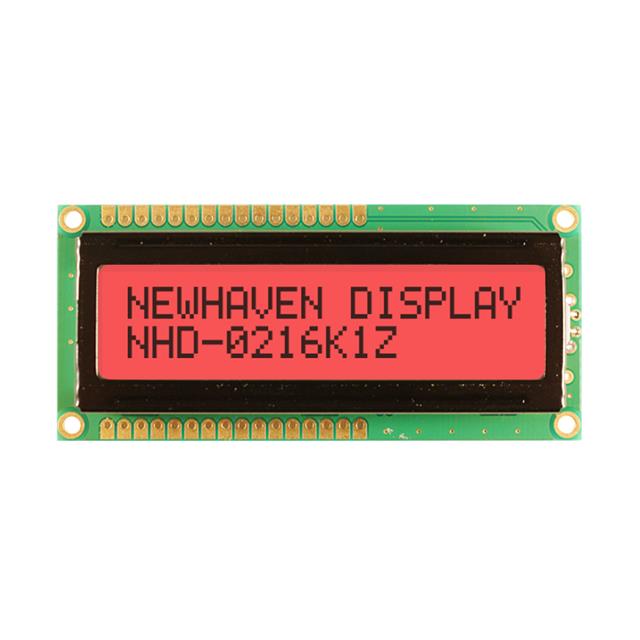

Character Display Module Transflective 5 x 8 Dots FSTN - Film Super-Twisted Nematic LED - Red Parallel 80.00mm x 36.00mm x 13.50mm
