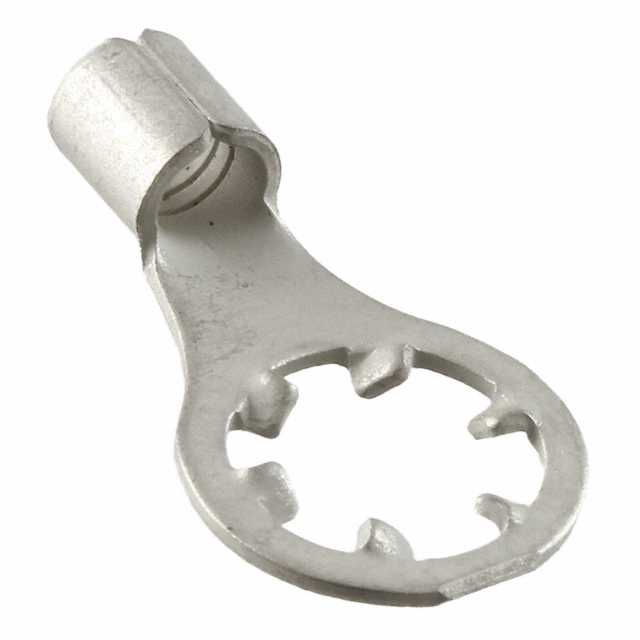

0190740019

Active

Molex

CONN RING CIRC 14-16AWG #10

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet

0190740019

Active

Molex

CONN RING CIRC 14-16AWG #10

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190740019

Contact Finish	Electro-Tin
Contact Material	Brass
Features	Inner Teeth, Serrated Termination
Insulation	Non-Insulated
Length - Overall [x]	0.674 "
Length - Overall [x]	17.12 mm
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	10 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	50 mils
Thickness	0.05 in
Width - Outer Edges [x]	0.375 in
Width - Outer Edges [x]	9.53 mm

019074 Series

Part	Terminal Type	Contact Finish	Length - Overall [x]	Length - Overall [x]	Mounting Type	Stud/Tab Size	Contact Material	Insulation	Termination	Width - Outer Edges [x]	Width - Outer Edges [x]	Thickness	Thickness	Features	Stud/Tab Size	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter [diameter]	Insulation Diameter [diameter]
Molex 0190740023	Circular	Electro-Tin	0.674 "	17.12 mm	Free Hanging (In-Line)	8 Stud	Steel	Non-Insulated	Crimp	0.375 in	9.53 mm	50 mils	0.05 in	Inner Teeth Serrated Termination
Molex 0190740026	Circular	Electro-Tin	0.674 "	17.12 mm	Free Hanging (In-Line)		Steel	Non-Insulated	Crimp	0.375 in	9.53 mm	50 mils	0.05 in	Inner Teeth Serrated Termination	10 Stud
Molex 0190740008	Circular	Electro-Tin	0.674 "	17.12 mm	Free Hanging (In-Line)		Brass	Non-Insulated	Crimp	0.375 in	9.53 mm	0.58 mm	0.023 in		10 Stud	22 AWG	17.5 AWG	0.073 in	1.85 mm
Molex 0190740019	Circular	Electro-Tin	0.674 "	17.12 mm	Free Hanging (In-Line)		Brass	Non-Insulated	Crimp	0.375 in	9.53 mm	50 mils	0.05 in	Inner Teeth Serrated Termination	10 Stud
Molex 0190740002	Circular	Electro-Tin	0.674 "	17.12 mm	Free Hanging (In-Line)		Brass	Non-Insulated	Crimp	0.375 in	9.53 mm	50 mils	0.05 in	Inner Teeth Serrated Termination	6 Stud	22 AWG	17.5 AWG
Molex 0190740020	Circular	Electro-Tin	0.674 "	17.12 mm	Free Hanging (In-Line)		Brass	Non-Insulated	Crimp	0.375 in	9.53 mm	50 mils	0.05 in	Inner Teeth Serrated Termination	10 Stud
Molex 0190740010	Circular	Electro-Tin	0.674 "	17.12 mm	Free Hanging (In-Line)		Steel	Non-Insulated	Crimp	0.375 in	9.53 mm	50 mils	0.05 in	Inner Teeth Serrated Termination	6 Stud	22 AWG	17.5 AWG
Molex 0190740014	Circular	Electro-Tin	0.674 "	17.12 mm	Free Hanging (In-Line)		Steel	Non-Insulated	Crimp	0.375 in	9.53 mm	0.58 mm	0.023 in		10 Stud	22 AWG	17.5 AWG	0.073 in	1.85 mm
Molex 0190740004	Circular	Electro-Tin	0.674 "	17.12 mm	Free Hanging (In-Line)	8 Stud	Brass	Non-Insulated	Crimp	0.375 in	9.53 mm	50 mils	0.05 in	Inner Teeth Serrated Termination		22 AWG	17.5 AWG
Molex 0190740021	Circular	Electro-Tin	0.674 "	17.12 mm	Free Hanging (In-Line)		Steel	Non-Insulated	Crimp	0.375 in	9.53 mm	50 mils	0.05 in	Inner Teeth Serrated Termination	6 Stud

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.20
		10	$ 0.16
		100	$ 0.12
		1000	$ 0.09
		3000	$ 0.08

Description

General part information

019074 Series

Ring Terminal Connector 10 Stud Circular 14-16 AWG Crimp

Documents

Technical documentation and resources

0190440069 Drawing/Datasheet

Datasheet
