0190740026
ActiveMolex

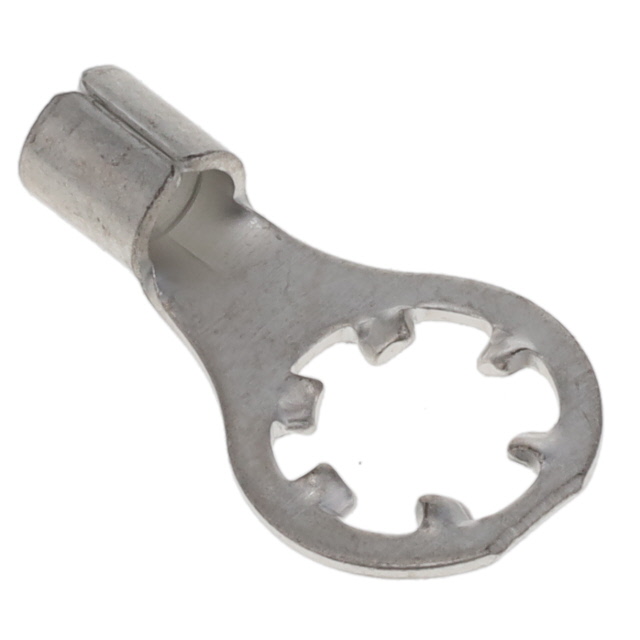

CONN RING CIRC 14-16AWG #10
Deep-Dive with AI
Search across all available documentation for this part.
Documents0190440069 Drawing/Datasheet
0190740026
ActiveMolex
CONN RING CIRC 14-16AWG #10
Deep-Dive with AI
Documents0190440069 Drawing/Datasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 0190740026 |
|---|---|
| Contact Finish | Electro-Tin |
| Contact Material | Steel |
| Features | Inner Teeth, Serrated Termination |
| Insulation | Non-Insulated |
| Length - Overall [x] | 0.674 " |
| Length - Overall [x] | 17.12 mm |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | 10 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 50 mils |
| Thickness | 0.05 in |
| Width - Outer Edges [x] | 0.375 in |
| Width - Outer Edges [x] | 9.53 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.33 | |
| 10 | $ 0.27 | |||
| 100 | $ 0.20 | |||
| 1000 | $ 0.16 | |||
| Tape & Reel (TR) | 2000 | $ 0.10 | ||
Description
General part information
019074 Series
Ring Terminal Connector 10 Stud Circular 14-16 AWG Crimp
