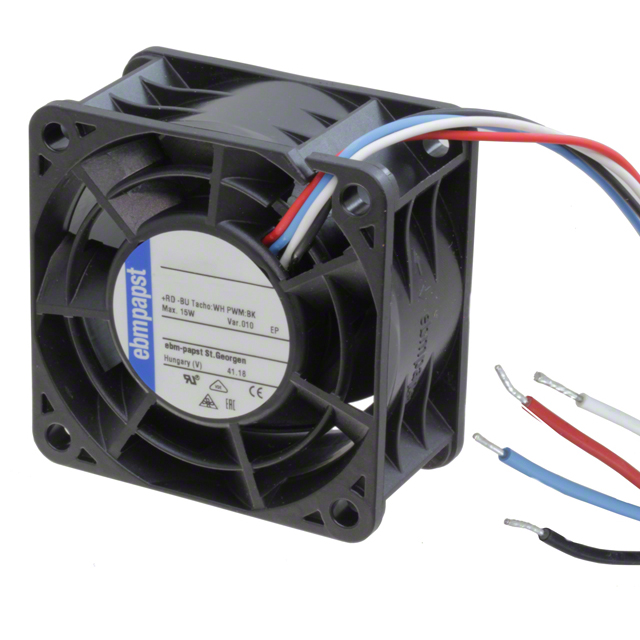

614J/2HHPR-010

Active

ebm-papst Inc.

FAN AXIAL 60X32MM 24VDC WIRE

Search across all available documentation for this part.

Active

ebm-papst Inc.

FAN AXIAL 60X32MM 24VDC WIRE

Technical Specifications

Parameters and characteristics for this part

Specification	614J/2HHPR-010

Air Flow	1.37 m³/min
Air Flow	48.9 CFM
Approval Agency	UL, VDE, CE
Bearing Type	Ball
Current Rating (Amps)	590 mA
Fan Type	Tubeaxial
Features	PWM Control, Speed Sensor (Tach), Auto Restart, Locked Rotor Protection
Material - Blade	Polyamide (PA), Nylon, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	62 dB(A)
Operating Temperature [Max]	172 °F
Operating Temperature [Max]	78 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	14.2 W
RPM	15000 RPM
Size / Dimension [x]	60 mm
Size / Dimension [y]	60 mm
Static Pressure	570 Pa
Static Pressure	2.288 in H2O
Termination	4 Wire Leads
Voltage - Rated	24 VDC
Voltage Range [Max]	30 V
Voltage Range [Min]	18 VDC
Width [y]	32 mm

Part	Size / Dimension [x]	Size / Dimension [y]	Bearing Type	Air Flow	Air Flow	Material - Frame	Power (Watts)	Weight	Weight	Fan Type	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Blade	Noise	Voltage Range [Max]	Voltage Range [Min]	Width [y]	Features	Lifetime @ Temp.	Termination	Voltage - Rated	RPM	Approval Agency	Current Rating (Amps)	Static Pressure	Static Pressure	Operating Temperature [Max]
ebm-papst Inc. 614J/2H	60 mm	60 mm	Ball	1.15 mł/min	41.1 CFM	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	7.7 W	99.79 g	0.22 lb	Tubeaxial	-20 °C	70 °C	-20 C	70 °C	Fiberglass Reinforced Nylon Polyamide (PA)	62 dB(A)	26.4 VDC	14 VDC	32 mm	Locked Rotor Protection Speed Sensor (Tach)	57500 Hrs	3 Wire Leads	24 VDC	11700 RPM
ebm-papst Inc. 614J/2HHPR-010	60 mm	60 mm	Ball	1.37 m³/min	48.9 CFM	Polybutylene Terephthalate (PBT) Fiberglass Reinforced	14.2 W			Tubeaxial	-40 °C		-40 °C	172 °F	Fiberglass Reinforced Nylon Polyamide (PA)	62 dB(A)	30 V	18 VDC	32 mm	Auto Restart Locked Rotor Protection PWM Control Speed Sensor (Tach)		4 Wire Leads	24 VDC	15000 RPM	CE UL VDE	590 mA	570 Pa	2.288 in H2O	78 °C

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 48.9 CFM (1.37m³/min) 4 Wire Leads
