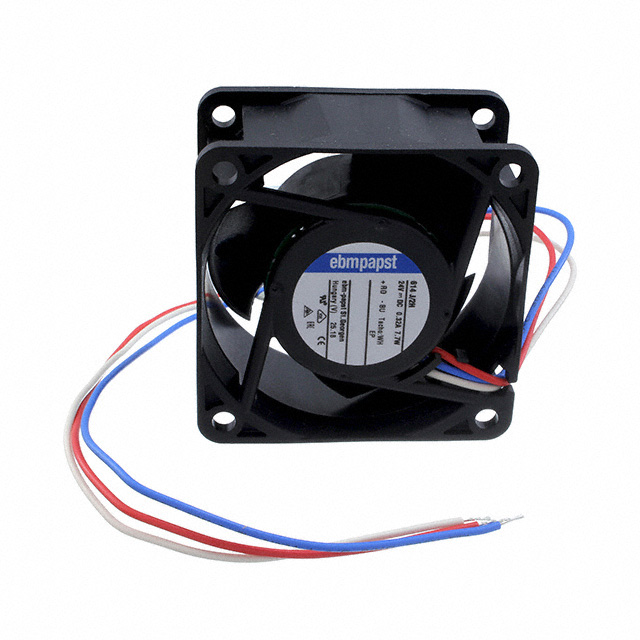

614J/2H
Activeebm-papst Inc.
FAN AXIAL 60X32MM 24VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
614J/2H
Activeebm-papst Inc.
FAN AXIAL 60X32MM 24VDC WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 614J/2H |
|---|---|
| Air Flow | 1.15 mł/min |
| Air Flow | 41.1 CFM |
| Bearing Type | Ball |
| Fan Type | Tubeaxial |
| Features | Speed Sensor (Tach), Locked Rotor Protection |
| Lifetime @ Temp. | 57500 Hrs |
| Material - Blade | Polyamide (PA), Nylon, Fiberglass Reinforced |
| Material - Frame | Polybutylene Terephthalate (PBT), Fiberglass Reinforced |
| Noise | 62 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Operating Temperature [Min] | -20 C |
| Power (Watts) | 7.7 W |
| RPM | 11700 RPM |
| Size / Dimension [x] | 60 mm |
| Size / Dimension [y] | 60 mm |
| Termination | 3 Wire Leads |
| Voltage - Rated | 24 VDC |
| Voltage Range [Max] | 26.4 VDC |
| Voltage Range [Min] | 14 VDC |
| Weight | 99.79 g |
| Weight | 0.22 lb |
| Width [y] | 32 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 78.65 | |
| 10 | $ 71.16 | |||
| 25 | $ 66.48 | |||
| 50 | $ 65.54 | |||
| 100 | $ 60.39 | |||
Description
General part information
614J Series
Fan Tubeaxial 24VDC Square - 60mm L x 60mm H Ball 41.1 CFM (1.15mł/min) 3 Wire Leads
