WP7A-S024VA1-R8000
ActiveJAE Electronics

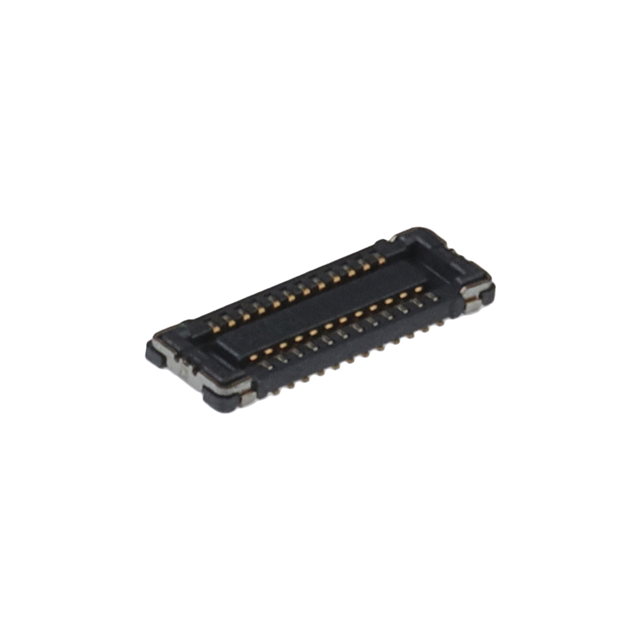

CONN RCPT 24POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
WP7A-S024VA1-R8000
ActiveJAE Electronics
CONN RCPT 24POS SMD GOLD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | WP7A-S024VA1-R8000 |
|---|---|
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Solder Retention |
| Height Above Board [z] | 0.71 mm |
| Height Above Board [z] | 0.028 in |
| Mated Stacking Heights | 0.7 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 24 |
| Number of Rows | 2 |
| Pitch [x] | 0.016 in |
| Pitch [x] | 0.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.66 | |
| 10 | $ 0.58 | |||
| 25 | $ 0.53 | |||
| 50 | $ 0.50 | |||
| 100 | $ 0.47 | |||
| 250 | $ 0.43 | |||
| 500 | $ 0.41 | |||
| 1000 | $ 0.34 | |||
| 2500 | $ 0.31 | |||
| Digi-Reel® | 1 | $ 0.66 | ||
| 10 | $ 0.58 | |||
| 25 | $ 0.53 | |||
| 50 | $ 0.50 | |||
| 100 | $ 0.47 | |||
| 250 | $ 0.43 | |||
| 500 | $ 0.41 | |||
| 1000 | $ 0.34 | |||
| 2500 | $ 0.31 | |||
| Tape & Reel (TR) | 8000 | $ 0.26 | ||
Description
General part information
WP7A-S02 Series
24 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
