WP7A-S028VA1-R500
UnknownJAE Electronics

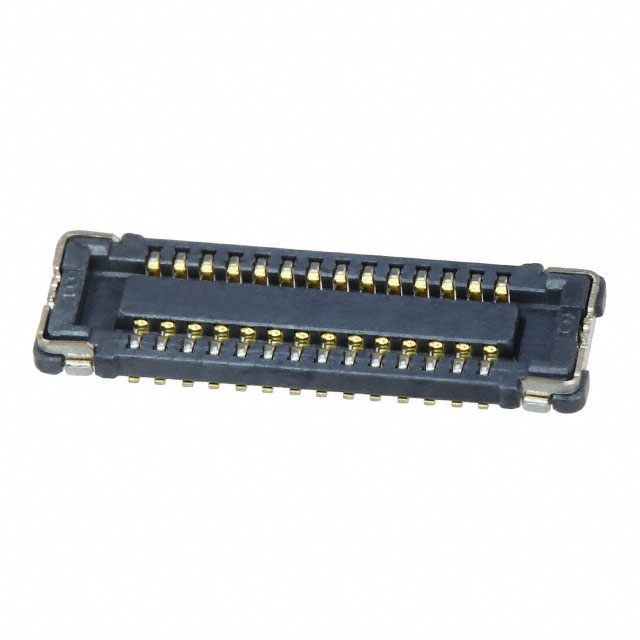

CONN RCPT 28POS SMD GOLD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WP7A-S028VA1-R500
UnknownJAE Electronics
CONN RCPT 28POS SMD GOLD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WP7A-S028VA1-R500 |
|---|---|
| Connector Type | Receptacle, Center Strip Contacts |
| Contact Finish | Gold |
| Contact Finish Thickness | 4 Áin |
| Contact Finish Thickness | 0.1 Ám |
| Features | Solder Retention |
| Height Above Board [z] | 0.71 mm |
| Height Above Board [z] | 0.028 in |
| Mated Stacking Heights | 0.7 mm |
| Mounting Type | Surface Mount |
| Number of Positions | 28 |
| Number of Rows | 2 |
| Pitch [x] | 0.016 in |
| Pitch [x] | 0.4 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.98 | |
| 10 | $ 0.85 | |||
| 25 | $ 0.82 | |||
| 50 | $ 0.80 | |||
| 100 | $ 0.76 | |||
| 250 | $ 0.69 | |||
| Digi-Reel® | 1 | $ 0.98 | ||
| 10 | $ 0.85 | |||
| 25 | $ 0.82 | |||
| 50 | $ 0.80 | |||
| 100 | $ 0.76 | |||
| 250 | $ 0.69 | |||
Description
General part information
WP7A-S02 Series
28 Position Connector Receptacle, Center Strip Contacts Surface Mount Gold
