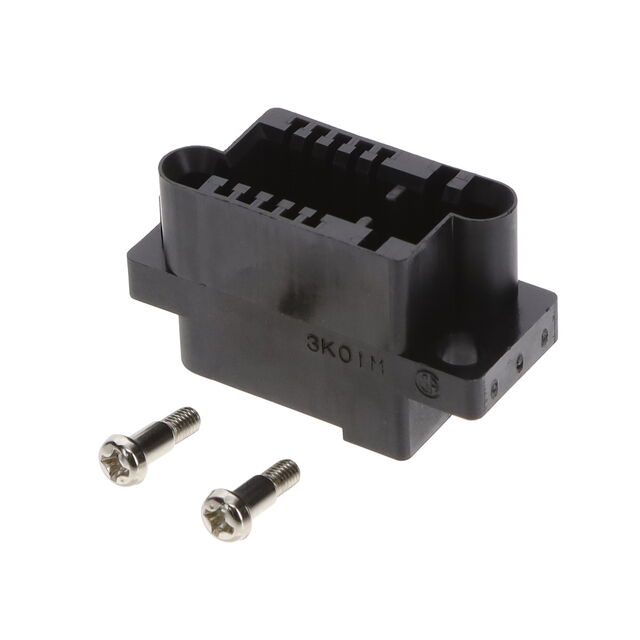

QR/P6-12S-C(21)

Active

Hirose Electric USA, Inc.

CONN RCPT HSG RACK & PNL 12P BLK

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

CONN RCPT HSG RACK & PNL 12P BLK

Technical Specifications

Parameters and characteristics for this part

Part	Features	Number of Positions	Connector Type	Color	Pitch [x]	Pitch [x]	Connector Style	Number of Rows	Connector Usage	Note	Number of Positions
Hirose Electric USA, Inc. QR/P6-16S-C(21)	Mating Guide	16	Housing for Female Sockets	Black	2.54 mm	0.1 in	Rack and Panel	2	Receptacle
Hirose Electric USA, Inc. QR/P6-12S-C(21)	Mating Guide		Housing for Female Sockets	Black	2.54 mm	0.1 in	Rack and Panel	2	Receptacle	Contacts Not Included	12
Hirose Electric USA, Inc. QR/P6-6P-C(21)	Guide Pin		Housing for Male Pins	Black	2.54 mm	0.1 in	Rack and Panel	2	Plug	Contacts Not Included	6
Hirose Electric USA, Inc. QR/P6-12P-C(01)	Guide Pin		Housing for Male Pins	Black	2.54 mm	0.1 in	Rack and Panel	2	Plug	Contacts Not Included	12
Hirose Electric USA, Inc. QR/P6-12P-C(26)	Guide Pin		Housing for Male Pins	Black	2.54 mm	0.1 in	Rack and Panel	2	Plug	Contacts Not Included	12
Hirose Electric USA, Inc. QR/P6-12P-C(21)	Guide Pin		Housing for Male Pins	Black	2.54 mm	0.1 in	Rack and Panel	2	Plug	Contacts Not Included	12
Hirose Electric USA, Inc. QR/P6-12S-C(22)	Mating Guide		Housing for Female Sockets	Black	2.54 mm	0.1 in	Rack and Panel	2	Receptacle	Contacts Not Included	12
Hirose Electric USA, Inc. QR/P6-16P-C(01)	Guide Pin	16	Housing for Male Pins	Black	2.54 mm	0.1 in	Rack and Panel	2	Plug	Contacts Not Included
Hirose Electric USA, Inc. QR/P6-24S-C(21)	Mating Guide		Housing for Female Sockets	Black	2.54 mm	0.1 in	Rack and Panel	2	Receptacle		24

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

12 Position Housing for Female Sockets Connector Black Panel Mount Rack and Panel
