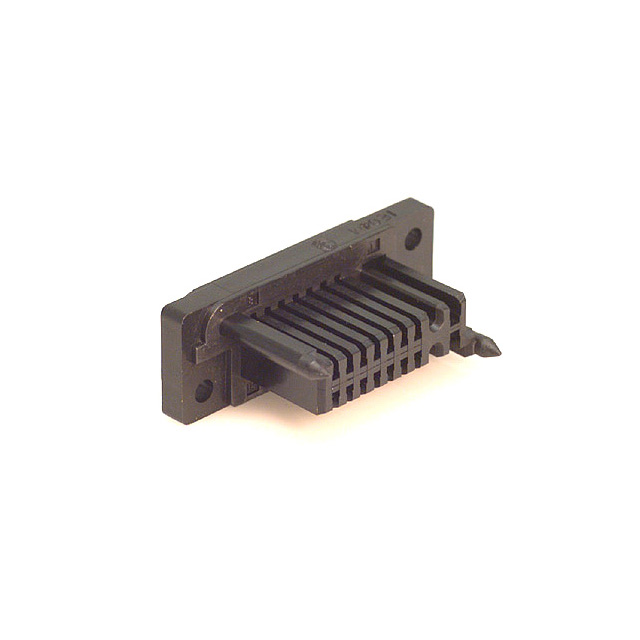

QR/P6-16P-C(01)

Obsolete

Hirose Electric USA, Inc.

CONN PLUG HSG RACK & PNL 16P BLK

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN PLUG HSG RACK & PNL 16P BLK

Technical Specifications

Parameters and characteristics for this part

Part	Features	Number of Positions	Connector Type	Color	Pitch [x]	Pitch [x]	Connector Style	Number of Rows	Connector Usage	Note	Number of Positions
Hirose Electric USA, Inc. QR/P6-16S-C(21)	Mating Guide	16	Housing for Female Sockets	Black	2.54 mm	0.1 in	Rack and Panel	2	Receptacle
Hirose Electric USA, Inc. QR/P6-12S-C(21)	Mating Guide		Housing for Female Sockets	Black	2.54 mm	0.1 in	Rack and Panel	2	Receptacle	Contacts Not Included	12
Hirose Electric USA, Inc. QR/P6-6P-C(21)	Guide Pin		Housing for Male Pins	Black	2.54 mm	0.1 in	Rack and Panel	2	Plug	Contacts Not Included	6
Hirose Electric USA, Inc. QR/P6-12P-C(01)	Guide Pin		Housing for Male Pins	Black	2.54 mm	0.1 in	Rack and Panel	2	Plug	Contacts Not Included	12
Hirose Electric USA, Inc. QR/P6-12P-C(26)	Guide Pin		Housing for Male Pins	Black	2.54 mm	0.1 in	Rack and Panel	2	Plug	Contacts Not Included	12
Hirose Electric USA, Inc. QR/P6-12P-C(21)	Guide Pin		Housing for Male Pins	Black	2.54 mm	0.1 in	Rack and Panel	2	Plug	Contacts Not Included	12
Hirose Electric USA, Inc. QR/P6-12S-C(22)	Mating Guide		Housing for Female Sockets	Black	2.54 mm	0.1 in	Rack and Panel	2	Receptacle	Contacts Not Included	12
Hirose Electric USA, Inc. QR/P6-16P-C(01)	Guide Pin	16	Housing for Male Pins	Black	2.54 mm	0.1 in	Rack and Panel	2	Plug	Contacts Not Included
Hirose Electric USA, Inc. QR/P6-24S-C(21)	Mating Guide		Housing for Female Sockets	Black	2.54 mm	0.1 in	Rack and Panel	2	Receptacle		24

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

16 Position Housing for Male Pins Connector Black Panel Mount Rack and Panel

Technical documentation and resources
