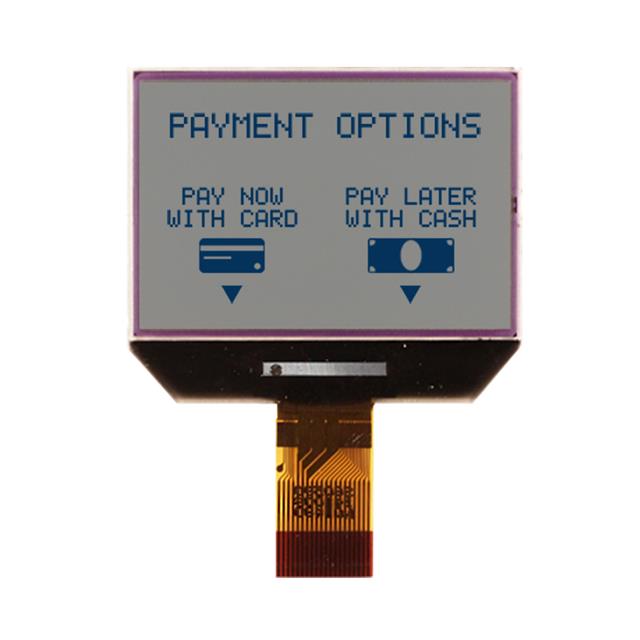

NHD-C160100AZ-RN-GBW

Active

Newhaven Display Intl

LCD COG GRAPH 160X100 REFLECT

Search across all available documentation for this part.

Active

Newhaven Display Intl

LCD COG GRAPH 160X100 REFLECT

Technical Specifications

Parameters and characteristics for this part

Part	Dot Size [y]	Dot Size [z]	Controller Type	Background Color	Backlight	Dot Pitch [x]	Dot Pitch [y]	Viewing Area [x]	Viewing Area [y]	Display Mode	Graphics Color	Display Type	Interface
Newhaven Display Intl NHD-C160100DIZ-FSW-FBW	0.23 mm	0.23 mm	ST-7528i	Gray	LED - White	0.25 mm	0.25 mm	46.2 mm	33.89 mm	Transflective	Black (Gray - Inverted)	FSTN - Film Super-Twisted Nematic	I2C
Newhaven Display Intl NHD-C160100AZ-RN-GBW	0.2 mm	0.2 mm	ST-7528	Gray	Without Backlight	0.22 mm	0.22 mm	38.5 mm	25.2 mm	Reflective	Blue	STN - Super-Twisted Nematic	Parallel/Serial
Newhaven Display Intl NHD-C160100CZ-RN-FBW	0.23 mm	0.23 mm	ST-7528	Gray	Without Backlight	0.25 mm	0.25 mm	43.6 mm	27.25 mm	Reflective	Black (Gray - Inverted)	FSTN - Film Super-Twisted Nematic	Parallel/Serial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	2000	$ 11.64

General part information

Graphic LCD Display Module Reflective Blue (Gray - Inverted) STN - Super-Twisted Nematic Parallel/Serial 160 x 100
