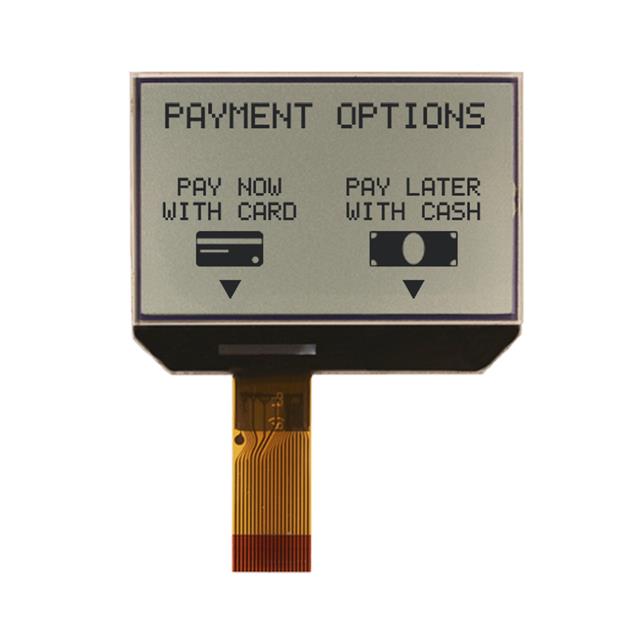

NHD-C160100CZ-RN-FBW

Active

Newhaven Display Intl

LCD COG GRAPH 160X100 NO REFL

Search across all available documentation for this part.

Active

Newhaven Display Intl

LCD COG GRAPH 160X100 NO REFL

Technical Specifications

Parameters and characteristics for this part

Specification	NHD-C160100CZ-RN-FBW

Background Color	Gray
Backlight	Without Backlight
Controller Type	ST-7528
Display Mode	Reflective
Display Type	FSTN - Film Super-Twisted Nematic
Dot Pitch [x]	0.25 mm
Dot Pitch [y]	0.25 mm
Dot Size [y]	0.23 mm
Dot Size [z]	0.23 mm
Graphics Color	Black (Gray - Inverted)
Interface	Parallel/Serial
Viewing Area [x]	43.6 mm
Viewing Area [y]	27.25 mm

Part	Dot Size [y]	Dot Size [z]	Controller Type	Background Color	Backlight	Dot Pitch [x]	Dot Pitch [y]	Viewing Area [x]	Viewing Area [y]	Display Mode	Graphics Color	Display Type	Interface
Newhaven Display Intl NHD-C160100DIZ-FSW-FBW	0.23 mm	0.23 mm	ST-7528i	Gray	LED - White	0.25 mm	0.25 mm	46.2 mm	33.89 mm	Transflective	Black (Gray - Inverted)	FSTN - Film Super-Twisted Nematic	I2C
Newhaven Display Intl NHD-C160100AZ-RN-GBW	0.2 mm	0.2 mm	ST-7528	Gray	Without Backlight	0.22 mm	0.22 mm	38.5 mm	25.2 mm	Reflective	Blue	STN - Super-Twisted Nematic	Parallel/Serial
Newhaven Display Intl NHD-C160100CZ-RN-FBW	0.23 mm	0.23 mm	ST-7528	Gray	Without Backlight	0.25 mm	0.25 mm	43.6 mm	27.25 mm	Reflective	Black (Gray - Inverted)	FSTN - Film Super-Twisted Nematic	Parallel/Serial

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	2000	$ 15.08

General part information

Graphic LCD Display Module Reflective Black (Gray - Inverted) FSTN - Film Super-Twisted Nematic Parallel/Serial 160 x 100
