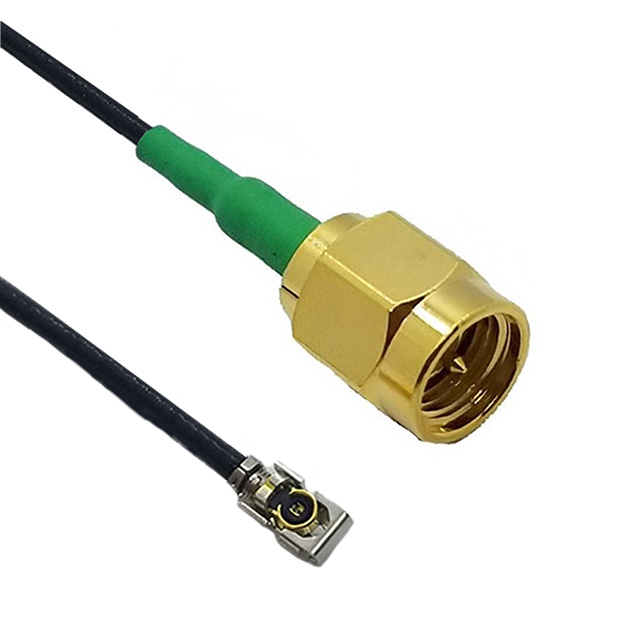

CB1.37-IPX4LLK-SAMGT-4IN

Active

Lighthorse Technologies, Inc

CBL ASY IPEX MHF4L LK-SMA P-P 4"

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CB1.37-IPX4LLK-SAMGT-4IN

Active

Lighthorse Technologies, Inc

CBL ASY IPEX MHF4L LK-SMA P-P 4"

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CB1.37-IPX4LLK-SAMGT-4IN

1st Connector	SMA Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Impedance	50 Ohms
Cable Type [diameter]	1.37 mm
Color	Black
Features	Locking
Frequency - Max [Max]	6000 MHz
Length	4 in
Length	101.6 mm
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	I-PEX MHF4L LK to SMA

CB1.37 Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	2nd Contact Gender	Overall Impedance	Style	Features	1st Connector Mounting Type	Cable Impedance	1st Connector	Cable Type [diameter]	1st Contact Gender	1st Connector Mounting Feature	Frequency - Max [Max]	Color	2nd Connector Mounting Type	Length	Length	2nd Connector	Ingress Protection
Lighthorse Technologies, Inc CB1.37-IPX4LLK-SARF3GT-6IN	90 °C	-40 °C	Female	50 Ohms	I-PEX MHF4L LK to RP-SMA	Locking	Panel Mount	50 Ohms	RP-SMA Jack	1.37 mm	Male	Bulkhead - Front Side Nut	6000 MHz	Black	Free Hanging (In-Line)	152.4 mm	6 in
Lighthorse Technologies, Inc CB1.37-2IPX-6IN	90 °C	-40 °C	Female	50 Ohms	I-PEX MHF1 I-PEX MHF1 to U.FL (UMCC) U.FL (UMCC)	Shielded	Free Hanging (In-Line)	50 Ohms	I-PEX MHF1 Plug Right Angle U.FL (UMCC)	1.37 mm	Female		9 GHz	Blue	Free Hanging (In-Line)	152.4 mm	6 in	I-PEX MHF1 Plug Right Angle U.FL (UMCC)
Lighthorse Technologies, Inc CB1.37-IPX4LLK-SARFGT-10IN	90 °C	-40 °C	Female	50 Ohms	I-PEX MHF4L LK to RP-SMA	Locking	Free Hanging (In-Line)	50 Ohms	RP-SMA Jack	1.37 mm	Male		6000 MHz	Black	Free Hanging (In-Line)	254 mm	10 in
Lighthorse Technologies, Inc CB1.37-2IPX-8.5IN-6O	90 °C	-40 °C	Female	50 Ohms	IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC)	Opposite Orientation Shielded	Free Hanging (In-Line)	50 Ohms	IPEX MHF1 Plug Right Angle U.FL (UMCC)	1.37 mm	Female		9 GHz	Blue	Free Hanging (In-Line)			U.FL (UMCC) IPEX MHF1 Plug Right Angle
Lighthorse Technologies, Inc CB1.37-IPXLK-SAF3OGTX15-10IN	90 °C	-40 °C	Female	50 Ohms	I-PEX MHF1 to SMA	Locking	Panel Mount	50 Ohms	SMA Jack	1.37 mm	Female	Bulkhead - Front Side Nut	6000 MHz	Black	Free Hanging (In-Line)	254 mm	10 in	I-PEX MHF1 LK (Locking) Plug Right Angle	IP67 - Dust Tight Waterproof
Lighthorse Technologies, Inc CB1.37-IPX4LLK-SARF3GT-4IN	90 °C	-40 °C	Female	50 Ohms	I-PEX MHF4L LK to RP-SMA	Locking	Panel Mount	50 Ohms	RP-SMA Jack	1.37 mm	Male	Bulkhead - Front Side Nut	6000 MHz	Black	Free Hanging (In-Line)	101.6 mm	4 in
Lighthorse Technologies, Inc CB1.37-IPX4LLK-SAMGT-4IN	90 °C	-40 °C	Female	50 Ohms	I-PEX MHF4L LK to SMA	Locking	Free Hanging (In-Line)	50 Ohms	SMA Plug	1.37 mm	Male		6000 MHz	Black	Free Hanging (In-Line)	101.6 mm	4 in
Lighthorse Technologies, Inc CB1.37-IPXLK-SAF3GT-4IN	90 °C	-40 °C	Female	50 Ohms	IPEX MHF1 to SMA	Locking	Panel Mount	50 Ohms	SMA Jack	1.37 mm	Female	Bulkhead - Front Side Nut	6000 MHz	Black	Free Hanging (In-Line)	101.6 mm	4 in	IPEX MHF1 LK (Locking) Plug Right Angle
Lighthorse Technologies, Inc CB1.37-IPXLK-SARF3OGTX9-4IN	90 °C	-40 °C	Female	50 Ohms	I-PEX MHF1 to RP-SMA	Locking	Panel Mount	50 Ohms	RP-SMA Jack	1.37 mm	Male	Bulkhead - Front Side Nut	6000 MHz	Black	Free Hanging (In-Line)	101.6 mm	4 in	I-PEX MHF1 LK (Locking) Plug Right Angle	IP67 - Dust Tight Waterproof
Lighthorse Technologies, Inc CB1.37-2IPX-1.5IN-6O	90 °C	-40 °C	Female	50 Ohms	IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC)	Opposite Orientation Shielded	Free Hanging (In-Line)	50 Ohms	IPEX MHF1 Plug Right Angle U.FL (UMCC)	1.37 mm	Female		9 GHz	Blue	Free Hanging (In-Line)	38.1 mm	1.5 "	U.FL (UMCC) IPEX MHF1 Plug Right Angle

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 11.22
		10	$ 10.56
		25	$ 9.97
		50	$ 9.44
		100	$ 8.97
		250	$ 8.16
		500	$ 7.48

Description

General part information

CB1.37 Series

Cable Assembly Coaxial I-PEX MHF4L LK to SMA 1.37mm OD Coaxial Cable 4.000" (101.60mm)
