CB1.37-IPX4LLK-SARFGT-10IN
ActiveLighthorse Technologies, Inc
CBL ASSY MHF4L LK-RPSMA J-PL 10"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CB1.37-IPX4LLK-SARFGT-10IN |
|---|---|
| 1st Connector | RP-SMA Jack |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Impedance | 50 Ohms |
| Cable Type [diameter] | 1.37 mm |
| Color | Black |
| Features | Locking |
| Frequency - Max [Max] | 6000 MHz |
| Length | 10 in |
| Length | 254 mm |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | I-PEX MHF4L LK to RP-SMA |
CB1.37 Series
| Part | Operating Temperature [Max] | Operating Temperature [Min] | 2nd Contact Gender | Overall Impedance | Style | Features | 1st Connector Mounting Type | Cable Impedance | 1st Connector | Cable Type [diameter] | 1st Contact Gender | 1st Connector Mounting Feature | Frequency - Max [Max] | Color | 2nd Connector Mounting Type | Length | Length | 2nd Connector | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Lighthorse Technologies, Inc | 90 °C | -40 °C | Female | 50 Ohms | I-PEX MHF4L LK to RP-SMA | Locking | Panel Mount | 50 Ohms | RP-SMA Jack | 1.37 mm | Male | Bulkhead - Front Side Nut | 6000 MHz | Black | Free Hanging (In-Line) | 152.4 mm | 6 in | ||
Lighthorse Technologies, Inc | 90 °C | -40 °C | Female | 50 Ohms | I-PEX MHF1 I-PEX MHF1 to U.FL (UMCC) U.FL (UMCC) | Shielded | Free Hanging (In-Line) | 50 Ohms | I-PEX MHF1 Plug Right Angle U.FL (UMCC) | 1.37 mm | Female | 9 GHz | Blue | Free Hanging (In-Line) | 152.4 mm | 6 in | I-PEX MHF1 Plug Right Angle U.FL (UMCC) | ||
Lighthorse Technologies, Inc | 90 °C | -40 °C | Female | 50 Ohms | I-PEX MHF4L LK to RP-SMA | Locking | Free Hanging (In-Line) | 50 Ohms | RP-SMA Jack | 1.37 mm | Male | 6000 MHz | Black | Free Hanging (In-Line) | 254 mm | 10 in | |||
Lighthorse Technologies, Inc | 90 °C | -40 °C | Female | 50 Ohms | IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | Opposite Orientation Shielded | Free Hanging (In-Line) | 50 Ohms | IPEX MHF1 Plug Right Angle U.FL (UMCC) | 1.37 mm | Female | 9 GHz | Blue | Free Hanging (In-Line) | U.FL (UMCC) IPEX MHF1 Plug Right Angle | ||||
Lighthorse Technologies, Inc | 90 °C | -40 °C | Female | 50 Ohms | I-PEX MHF1 to SMA | Locking | Panel Mount | 50 Ohms | SMA Jack | 1.37 mm | Female | Bulkhead - Front Side Nut | 6000 MHz | Black | Free Hanging (In-Line) | 254 mm | 10 in | I-PEX MHF1 LK (Locking) Plug Right Angle | IP67 - Dust Tight Waterproof |
Lighthorse Technologies, Inc | 90 °C | -40 °C | Female | 50 Ohms | I-PEX MHF4L LK to RP-SMA | Locking | Panel Mount | 50 Ohms | RP-SMA Jack | 1.37 mm | Male | Bulkhead - Front Side Nut | 6000 MHz | Black | Free Hanging (In-Line) | 101.6 mm | 4 in | ||
Lighthorse Technologies, Inc | 90 °C | -40 °C | Female | 50 Ohms | I-PEX MHF4L LK to SMA | Locking | Free Hanging (In-Line) | 50 Ohms | SMA Plug | 1.37 mm | Male | 6000 MHz | Black | Free Hanging (In-Line) | 101.6 mm | 4 in | |||
Lighthorse Technologies, Inc | 90 °C | -40 °C | Female | 50 Ohms | IPEX MHF1 to SMA | Locking | Panel Mount | 50 Ohms | SMA Jack | 1.37 mm | Female | Bulkhead - Front Side Nut | 6000 MHz | Black | Free Hanging (In-Line) | 101.6 mm | 4 in | IPEX MHF1 LK (Locking) Plug Right Angle | |
Lighthorse Technologies, Inc | 90 °C | -40 °C | Female | 50 Ohms | I-PEX MHF1 to RP-SMA | Locking | Panel Mount | 50 Ohms | RP-SMA Jack | 1.37 mm | Male | Bulkhead - Front Side Nut | 6000 MHz | Black | Free Hanging (In-Line) | 101.6 mm | 4 in | I-PEX MHF1 LK (Locking) Plug Right Angle | IP67 - Dust Tight Waterproof |
Lighthorse Technologies, Inc | 90 °C | -40 °C | Female | 50 Ohms | IPEX MHF1 IPEX MHF1 to U.FL (UMCC) U.FL (UMCC) | Opposite Orientation Shielded | Free Hanging (In-Line) | 50 Ohms | IPEX MHF1 Plug Right Angle U.FL (UMCC) | 1.37 mm | Female | 9 GHz | Blue | Free Hanging (In-Line) | 38.1 mm | 1.5 " | U.FL (UMCC) IPEX MHF1 Plug Right Angle |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.41 | |
| 10 | $ 11.68 | |||
| 25 | $ 11.03 | |||
| 50 | $ 10.45 | |||
| 100 | $ 9.93 | |||
| 250 | $ 9.02 | |||
| 500 | $ 8.27 | |||
Description
General part information
CB1.37 Series

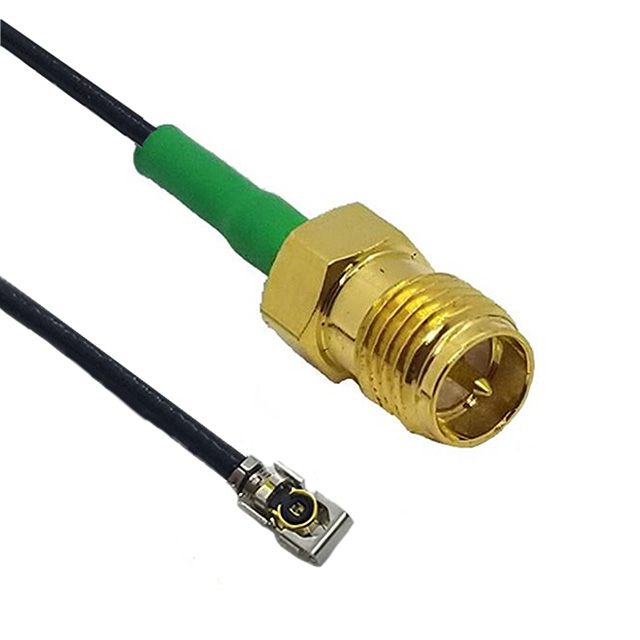

Cable Assembly Coaxial I-PEX MHF4L LK to RP-SMA 1.37mm OD Coaxial Cable 10.000" (254.00mm)
